Дома / ///MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black
Новый MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black

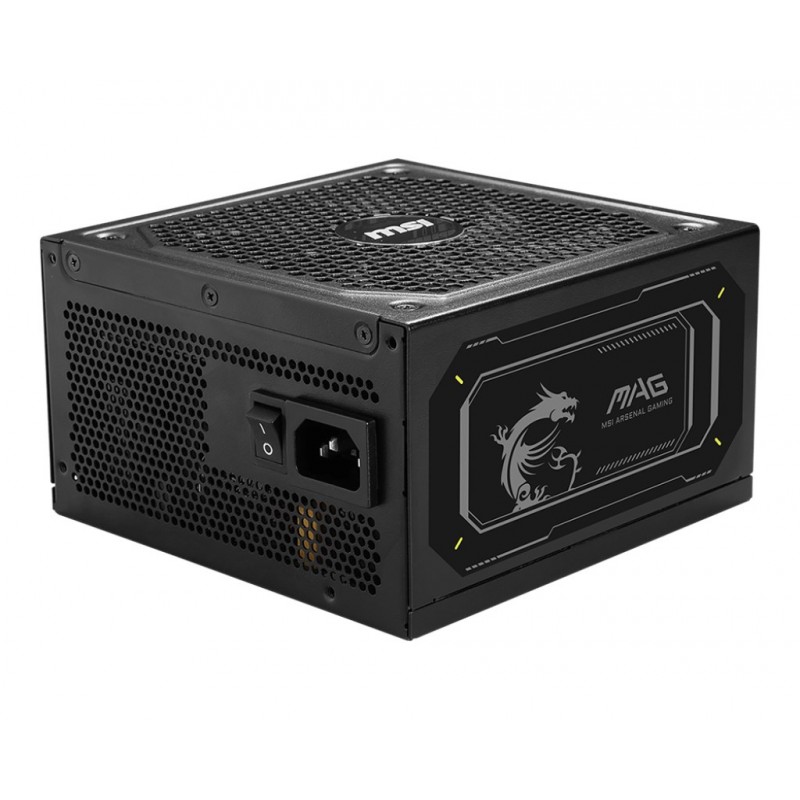

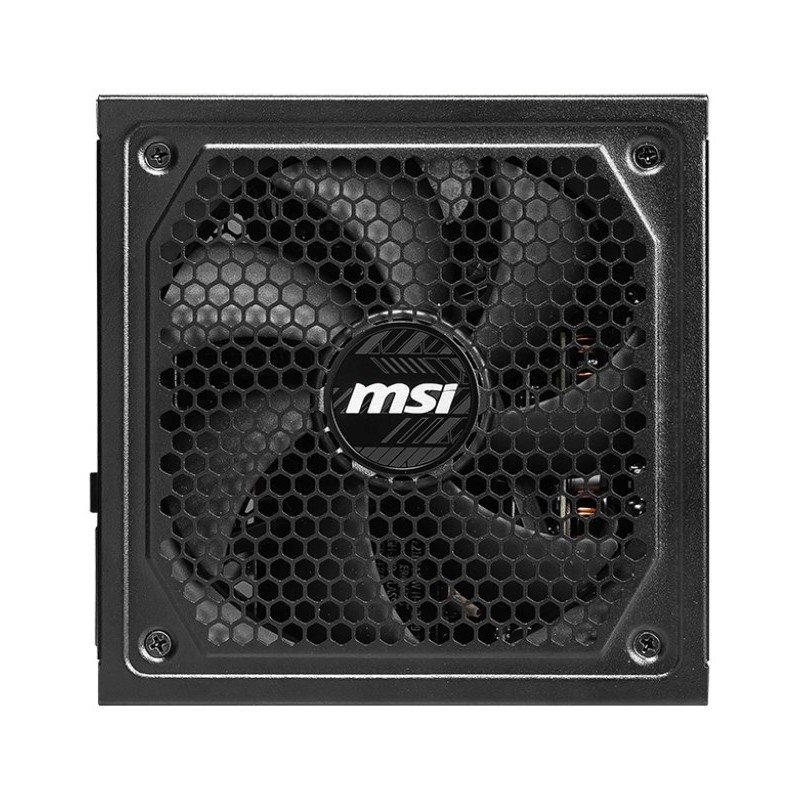

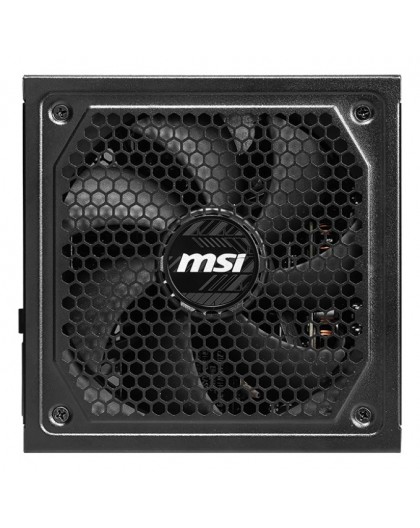

MSI MAG A1000GL PCIE5 II power supply unit 1000 W 24-pin ATX ATX Black

MSI

306-7ZP9D11-CE0

Новый продукт

7 Элементы

Shipping 2025-11-17 days

179,00 € включая налог.

Design
Cooling typeActive
Fan diameter13.5 cm
Fan speed500 - 1800 RPM
IlluminationNo
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyFDB
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces

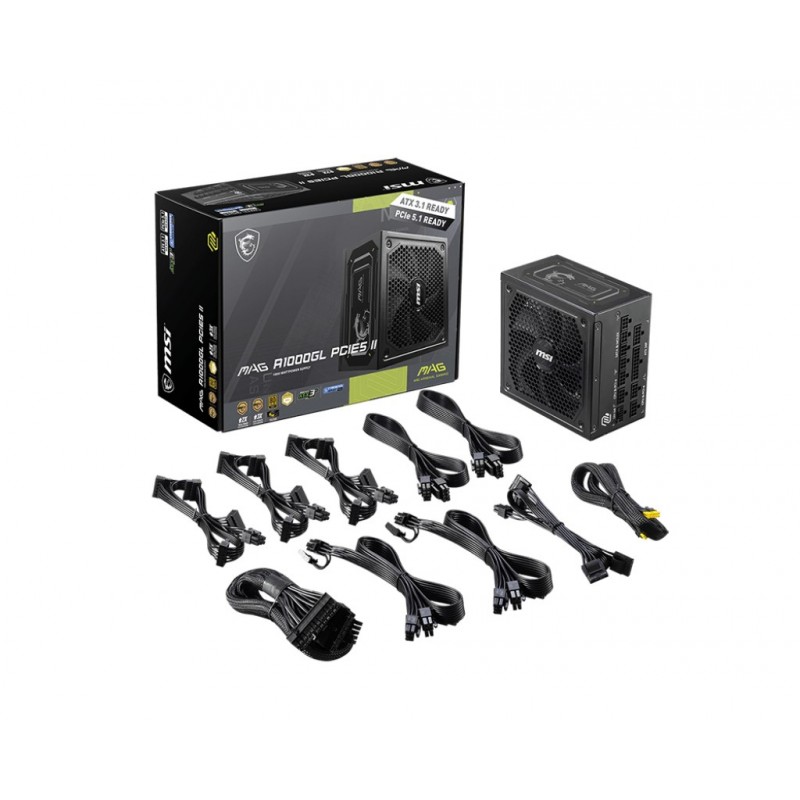

Cabling typeFully-Modular
EPS power connector (4+4 pin)Yes
EPS power connector (8-pin)No
Motherboard power cable length60 cm

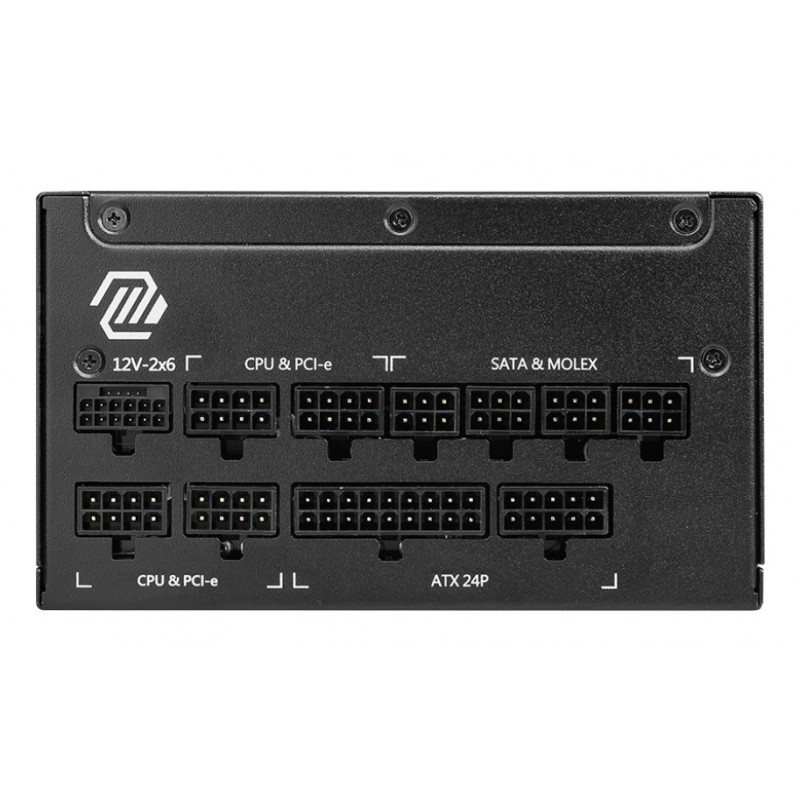

Motherboard power connector24-pin ATX
Number of SATA power connectors12
PCI Express power connectors (16-pin)1
PCI Express power connectors (6+2 pin)4
Peripheral (Molex) power cable length450 mm
Peripheral (Molex) power cable length500 mm
Peripheral (Molex) power connectors (4-pin)1
SATA power cable length150
SATA power cable length500 mm
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)999.6 W
Combined power (+3.3V)120 W
Combined power (+5V)120 W
Combined power (+5Vsb)15 W
Efficiency90%
Max output current (-12V)0.3 A
Max output current (+12V)83.3 A
Max output current (+3.3V)22 A
Max output current (+5V)22 A
Max output current (+5Vsb)3 A
Number of +12V rail(s)1
Power Factor Correction (PFC) typeActive
Power protection featuresOverheating
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOver power
Total power1000 W
Weight & dimensions
Depth150 mm
Height86 mm
Weight169 g
Width150 mm
