Дома / ///Chieftec GDP-650C power supply unit 650 W 20+4 pin ATX PS/2 Black
Новый Chieftec GDP-650C power supply unit 650 W 20+4 pin ATX PS/2 Black

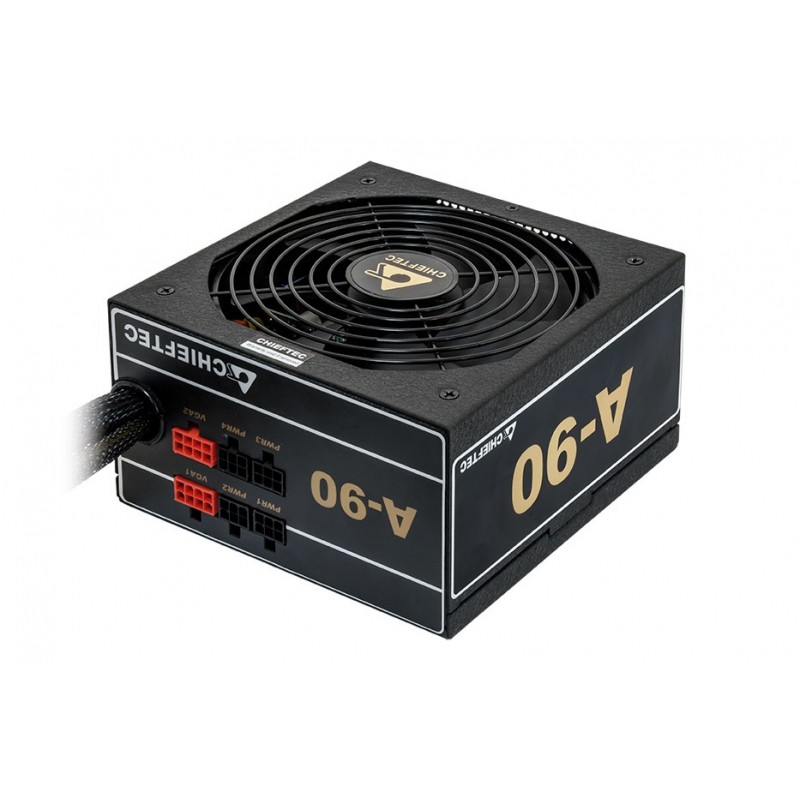

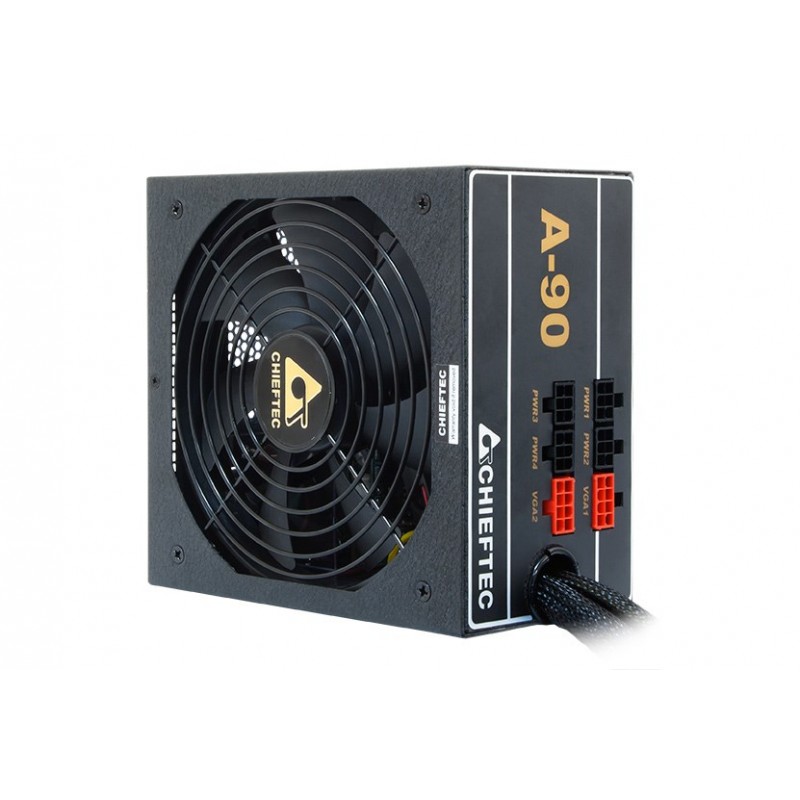

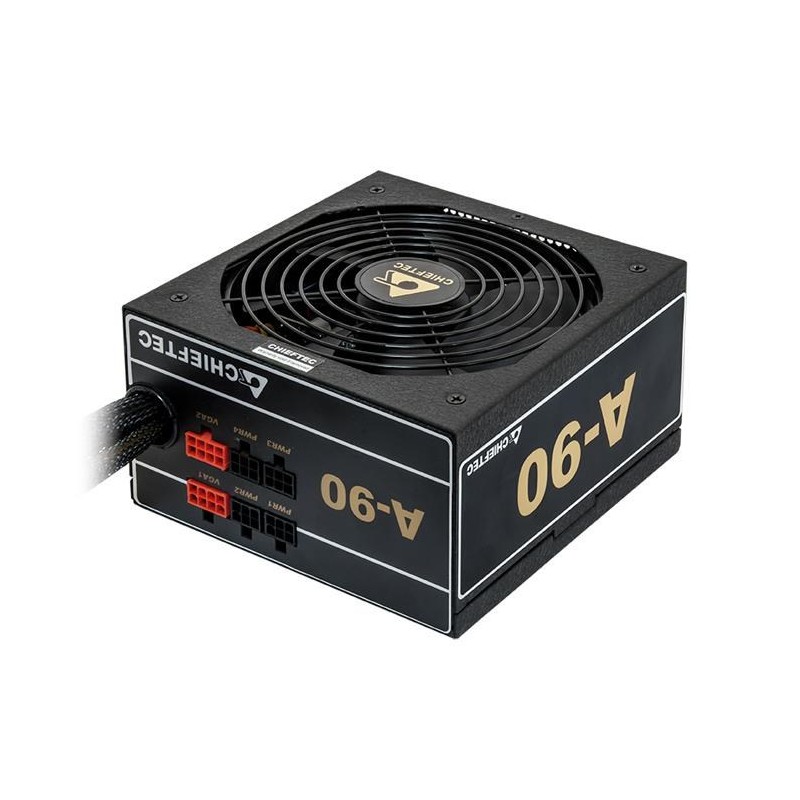

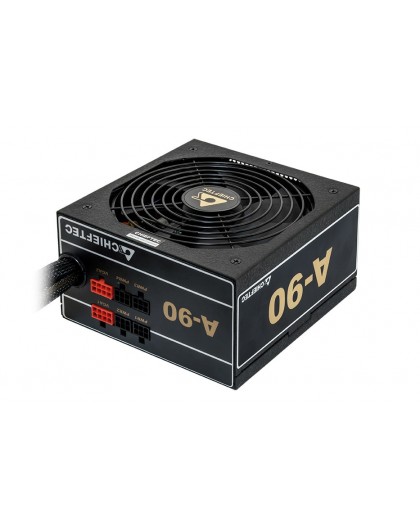

Chieftec GDP-650C power supply unit 650 W 20+4 pin ATX PS/2 Black

Chieftec

GDP-650C

Новый продукт

30 Элементы

Shipping 2025-11-21 days

89,00 € включая налог.

Certificates
Compliance certificatesRoHS
Design
Fan diameter14 cm
Product colourBlack
Logistics data
Harmonized System (HS) code84733020
Performance
ATX version2.3
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorPS/2
PurposePC
Ports & interfaces
Cabling typeSemi-Modular
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power connectors (4-pin)3
Power
AC input frequency47 - 63 Hz
AC input voltage200 - 240 V
Combined power (+3.3V)120 W
Combined power (+5V)120 W
Input current5 A
Max output current (-12V)0.3 A
Max output current (+12V1)53 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)2.5 A
Power Factor Correction (PFC) typeActive
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverload
Power protection featuresOverheating
Power protection featuresUnder voltage
Power protection featuresOver current
Total power650 W
Weight & dimensions
Depth160 mm
Height87 mm
Width150 mm
