New

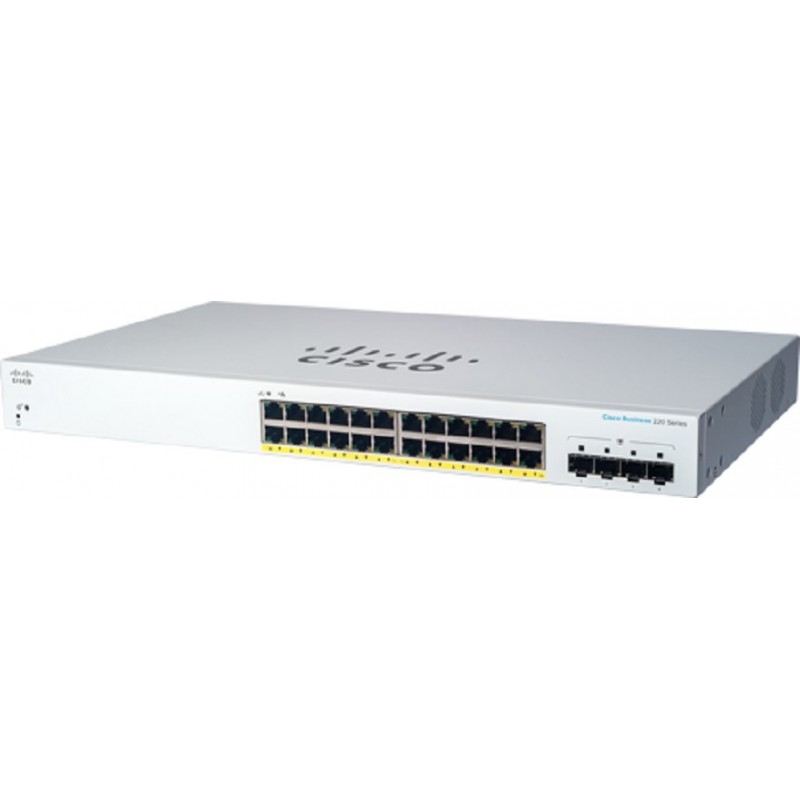

CBS220 SMART 24-PORT GE POE/4X1G SFP
CBS220-24P-4G-EU
New product
3 Items
Shipping 2025-11-21 days
Warning: Last items in stock!
439,00 € tax incl.
| Data transmission | |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 8192 entries |
| Number of queues | 8 |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 56 Gbit/s |
| Design | |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Rack mounting | Yes |
| Reset button | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast MAC address table | 8192 entries |
| Multicast support | Yes |
| Network | |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 833.59 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Performance | |
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Security algorithms | SSH-2 |
| Security algorithms | SSL/TLS |
| Security algorithms | SSH |
| SSH/SSL support | Yes |
| Weight & dimensions | |
| Depth | 203 mm |
| Height | 44 mm |
| Weight | 2.75 kg |
| Width | 440 mm |
