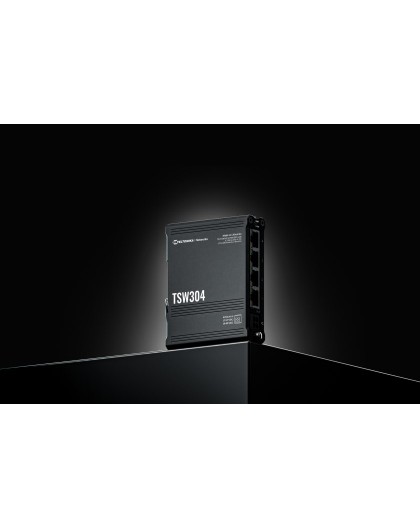

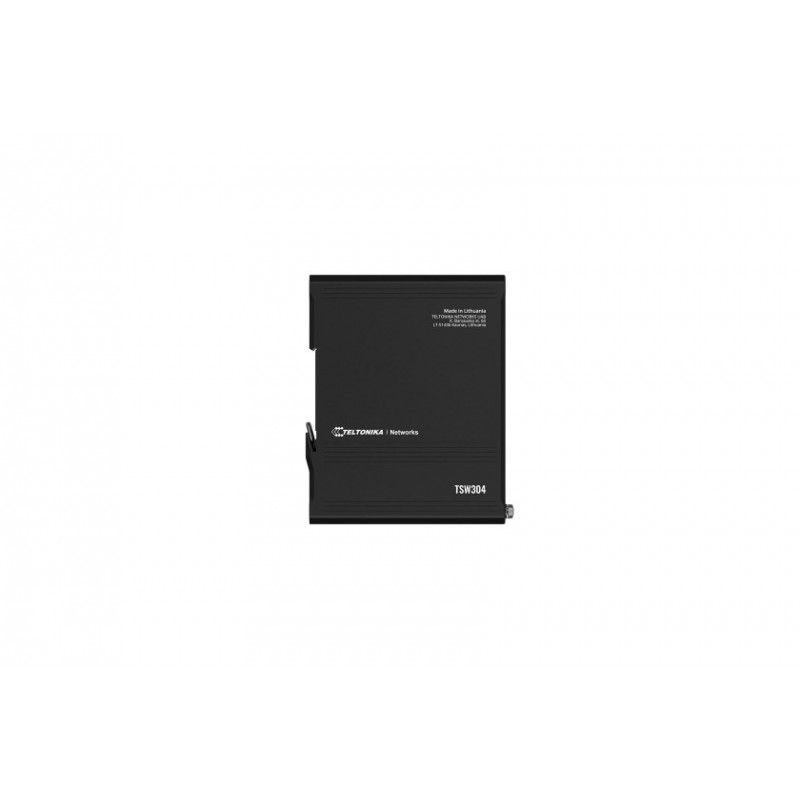

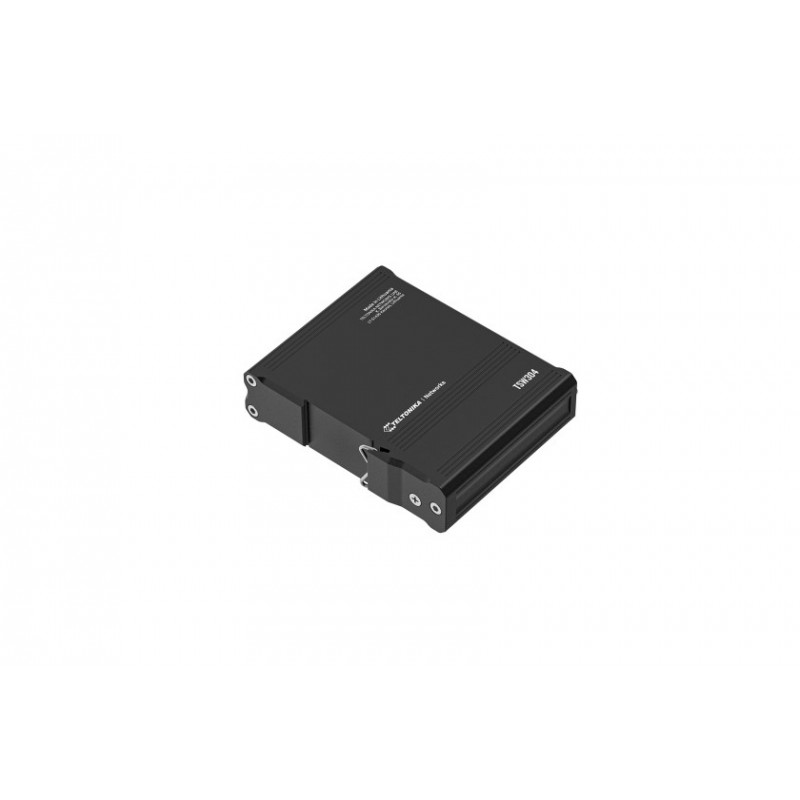

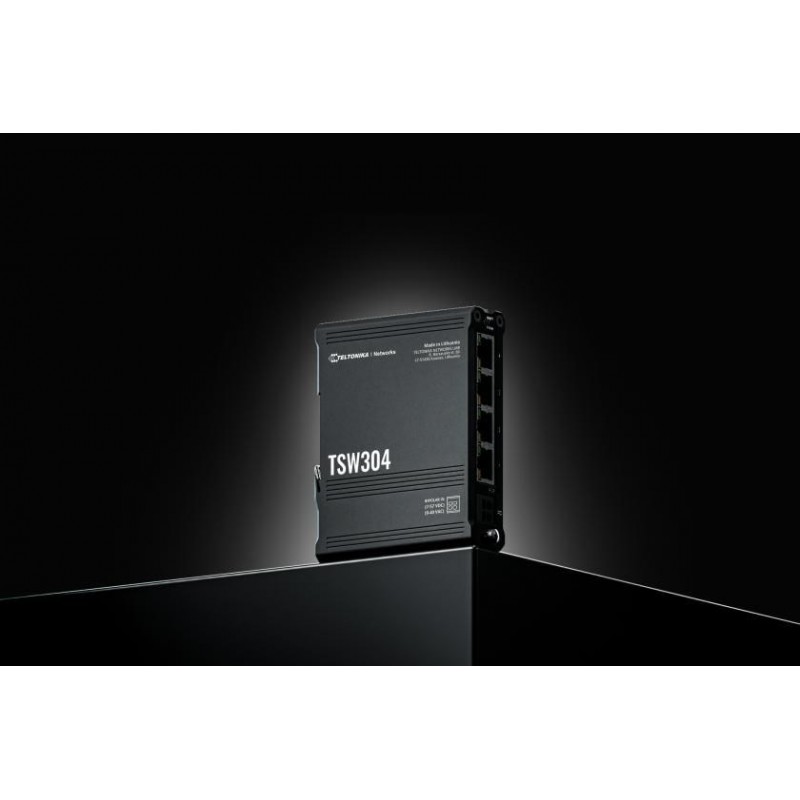

Teltonika TSW304 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TSW304
New product
5 Items
Shipping 2025-11-24 days
79,00 € tax incl.
| Data transmission | |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.128 MB |
| Switching capacity | 8 Gbit/s |
| Design | |
| Certification | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Power |
| LED indicators | Status |
| Product colour | Black |
| Wall mountable | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3u |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| DC input voltage | 7 - 57 V |
| Input voltage | 9 - 40 V |
| Power consumption (max) | 1.44 W |
| Power consumption (typical) | 0.26 W |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Weight & dimensions | |
| Depth | 81.5 mm |
| Height | 25 mm |
| Weight | 210 g |
| Width | 102 mm |
