Home / ///Teltonika TSW030 | Switch | 8x RJ45 100Mbps, IP30
New Teltonika TSW030 | Switch | 8x RJ45 100Mbps, IP30

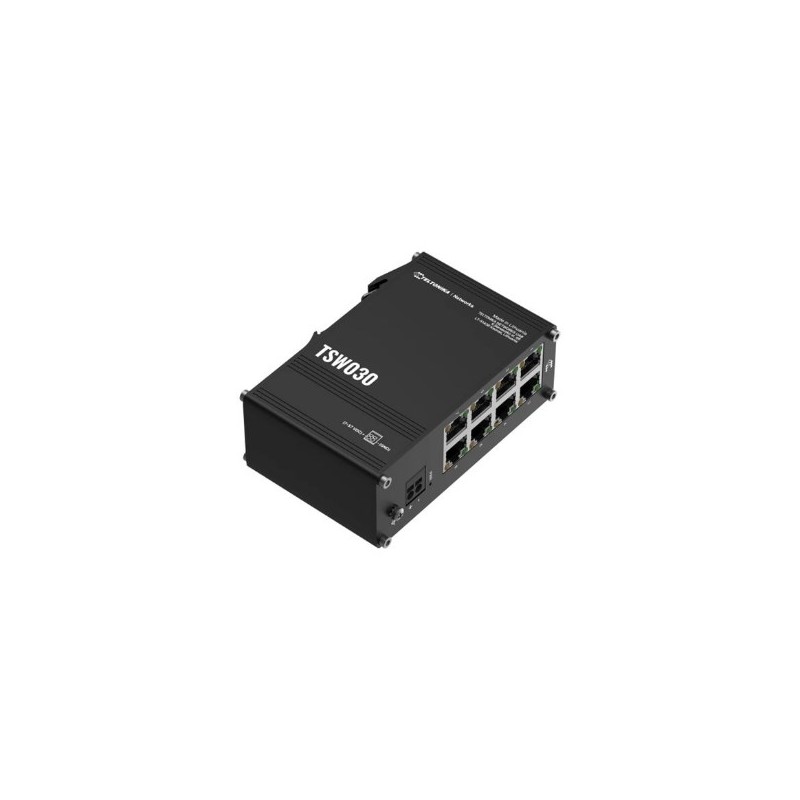

Teltonika TSW030 | Switch | 8x RJ45 100Mbps, IP30

Teltonika

TELTONIKATSW030000000

New product

50 Items

Shipping 2025-11-20 days

59,00 € tax incl.

Certificates
CertificationCE, UKCA, EAC, UCRF, RCM, FCC, IC, CB Standards EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
Data transmission
Jumbo frames9216
Jumbo frames supportYes
MAC address table2048 entries
Switching capacity20 Gbit/s
Design

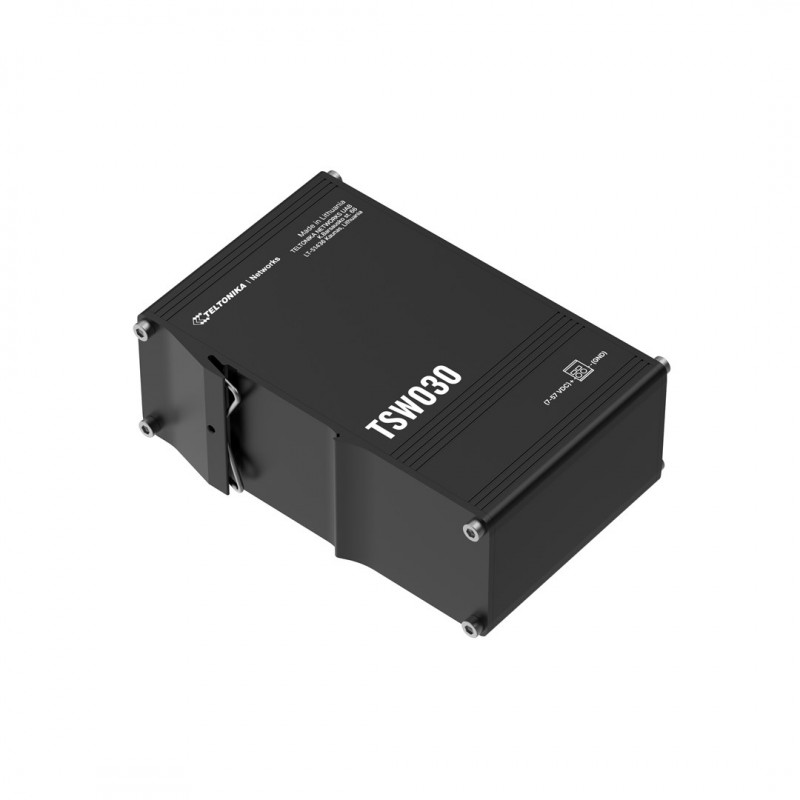

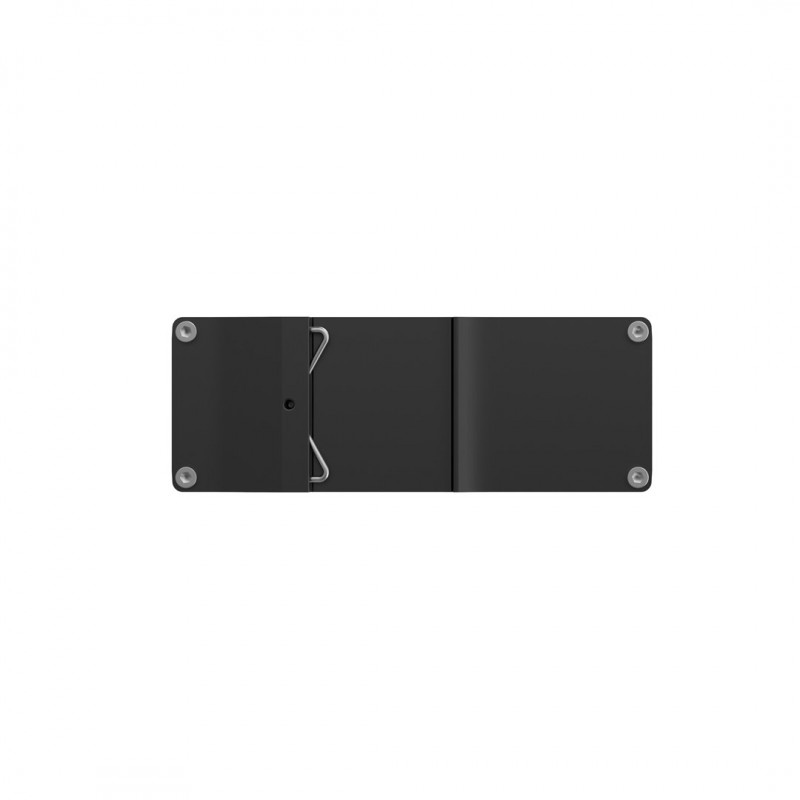

DIN rail mountingYes
Housing materialAluminium
LED indicatorsPower
LED indicatorsLAN
LED indicatorsStatus
Product colourBlack
Rack mountingNo
Reset buttonYes
StackableNo
Management features
Switch typeUnmanaged
Web-based managementNo
Network
10G supportNo
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.3
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.3i
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-40 - 75 °C
Ports & interfaces

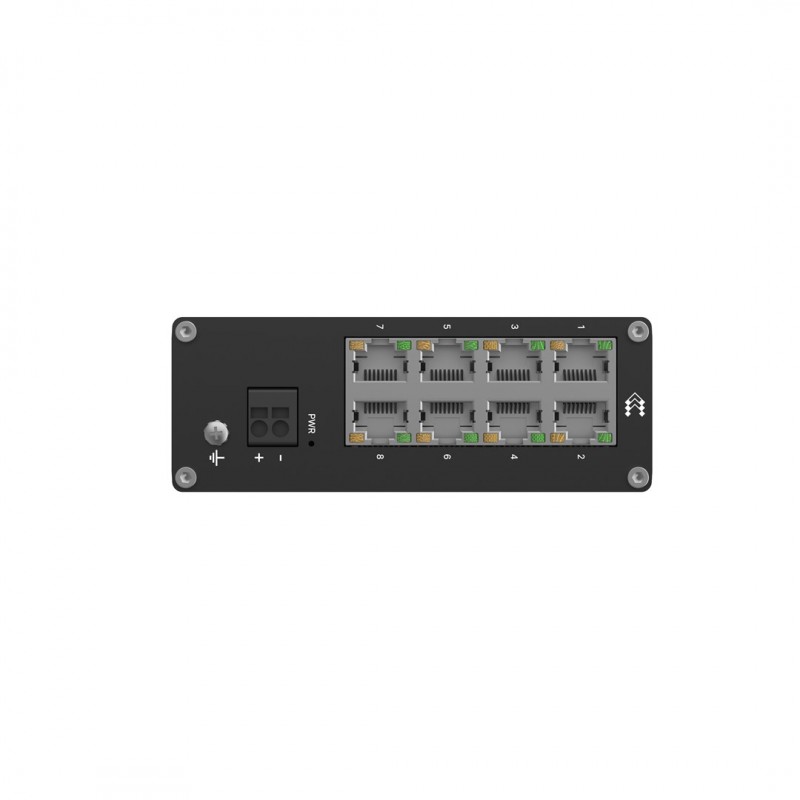

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity8
Power
DC input voltage7 - 57 V
Power sourceDC
Power supply includedNo
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Safety warning
WarningsDo not open the housing of the unit due to the risk of electric shock.
WarningsElectronic devices should be recycled in accordance with local regulations.
WarningsDo not use the device in damp conditions to avoid a short circuit.
