Home / ///Huawei CloudEngine S5735I-S8U4XN-V2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
New Huawei CloudEngine S5735I-S8U4XN-V2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

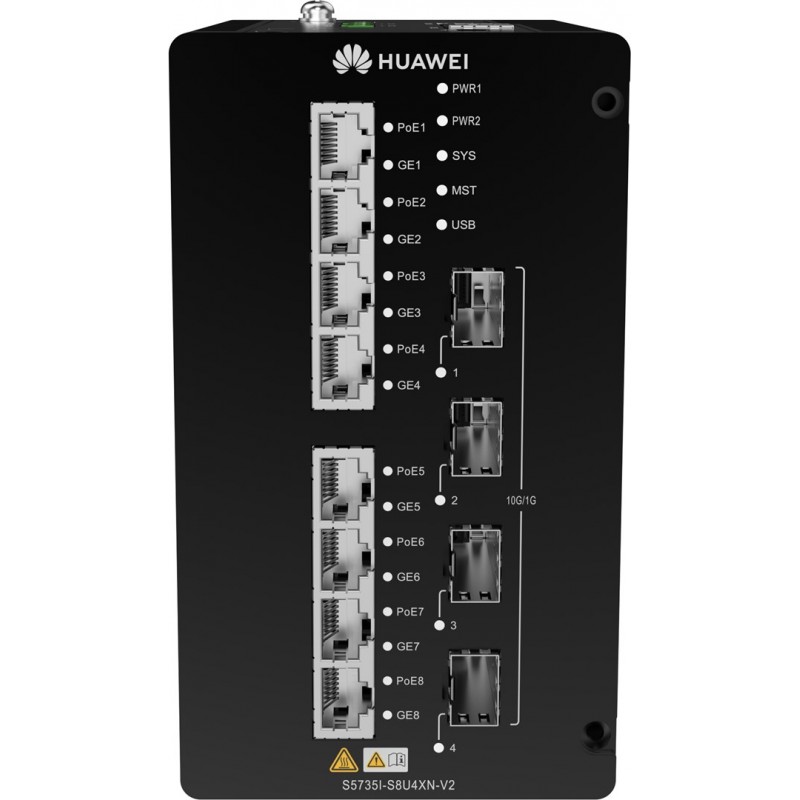

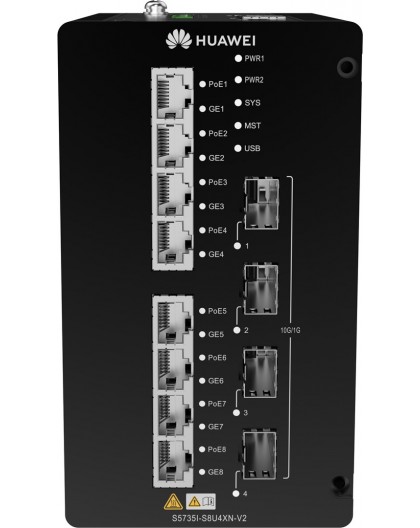

Huawei CloudEngine S5735I-S8U4XN-V2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Hewlett-Packard

1707869

New product

2 Items

Shipping 2025-11-20 days

Warning: Last items in stock!

859,00 € tax incl.

Data transmission
Forwarding rate72 Mpps
MAC address table32000 entries
Switching capacity96 Gbit/s
Design
DIN rail mountingYes
International Protection (IP) codeIP40
LED indicatorsYes
Product colourBlack
Rack mountingYes
Management features
ARP inspectionYes
Cloud-managedYes
iStack technologyYes
Quality of Service (QoS) supportYes
Switch typeManaged
Virtual Cable Test (VCT)Yes
Web-based managementYes
Multicast features
Multicast supportYes
Network
10G supportNo
Copper ethernet cabling technology10BASE-T
Copper ethernet cabling technology100BASE-T
Copper ethernet cabling technology1000BASE-T
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet Ring Protection Switching (ERPS)Yes
IP routingYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
Networking standardsIEEE 802.1D
Networking standardsIEEE 802.1x
Networking standardsIEEE 802.1w
Networking standardsIEEE 802.1s
Number of VLANs4094
Virtual LAN featuresMultiple VXLAN (MUX VLAN)
Virtual LAN featuresVoice VLAN
VLAN supportYes
Operational conditions
Heat dissipation69.74 BTU/h
Non-operating altitude0 - 5000 m
Operating altitude0 - 5000 m
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Other features
Power availability0.99999 W
Packaging data
Package depth205 mm
Package height235 mm
Package weight2.21 kg
Package width120 mm
Performance
FanlessYes
Flash memory1024 MB
Internal memory2048 MB
Mean time to repair (MTTR)2 h
Smart Link multi-instanceYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Fiber optic connectorSFP+
Fiber ports quantity4
Gigabit Ethernet (copper) ports quantity8
SFP+ module slots quantity4
USB 2.0 ports quantity1
Power
DC input voltage54 - 57 V
Power consumption (max)21.7 W
Power consumption (typical)20.45 W
Power sourceDC/PoE
Power supply includedYes
Redundant power supply (RPS) supportYes
Surge protectionYes
Surge protection voltage7 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget421.7 W
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4 FIB
IPv4 & IPv6 featuresIPv6 FIB
IPv4 FIB entries8192
IPv6 FIB entries3072
Routing protocolsBGP4
Routing protocolsRIPng
Routing protocolsRIP-1
Routing protocolsIS-IS
Routing protocolsVRRP
Routing protocolsOSPFv3
Routing protocolsBGP
Routing protocolsOSPF
Routing protocolsRIP-2
Security
Access Control List (ACL)Yes
ARP attack preventionYes
Authentication typeAAA, HWTACACS, NAC SSH V2.0, Network Access Control (NAC), RADIUS
BlacklistYes
BPDU filtering/protectionYes
BPDU tunnelingYes
CPU defenseYes
DHCP featuresDHCP server
DHCP featuresDHCPv6 client
DHCP featuresDHCP client
DHCP featuresDHCP relay
DHCP featuresDHCP snooping
DHCP featuresDHCPv6 relay
DoS attack preventionYes
ICMP attack preventionYes
IGMP snoopingYes
Loop protectionYes
MAC address entriesBlackhole MAC address entries
MAC address entriesDynamic MAC address entries
MAC address entriesStatic MAC address entries
Root protectionYes
Security algorithmsSNMPv2
Security algorithmsHTTPS
Security algorithmsSNMPv3
Security algorithmsSNMP
WhitelistYes
Weight & dimensions
Depth133 mm
Height150 mm
Weight1.86 kg
Width86 mm
