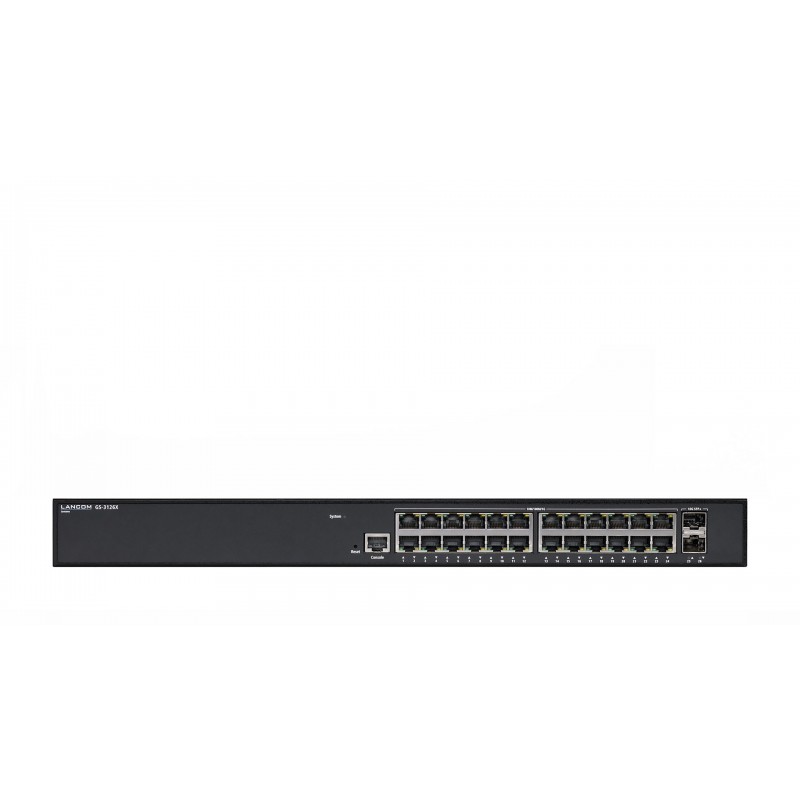

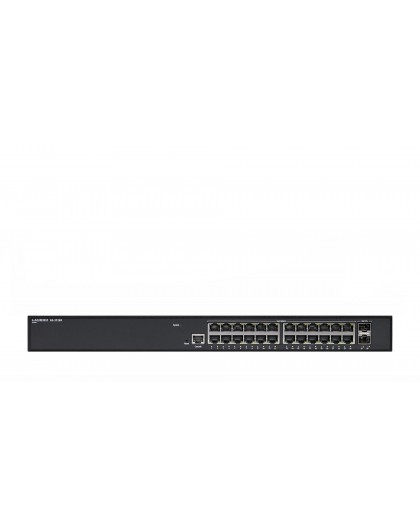

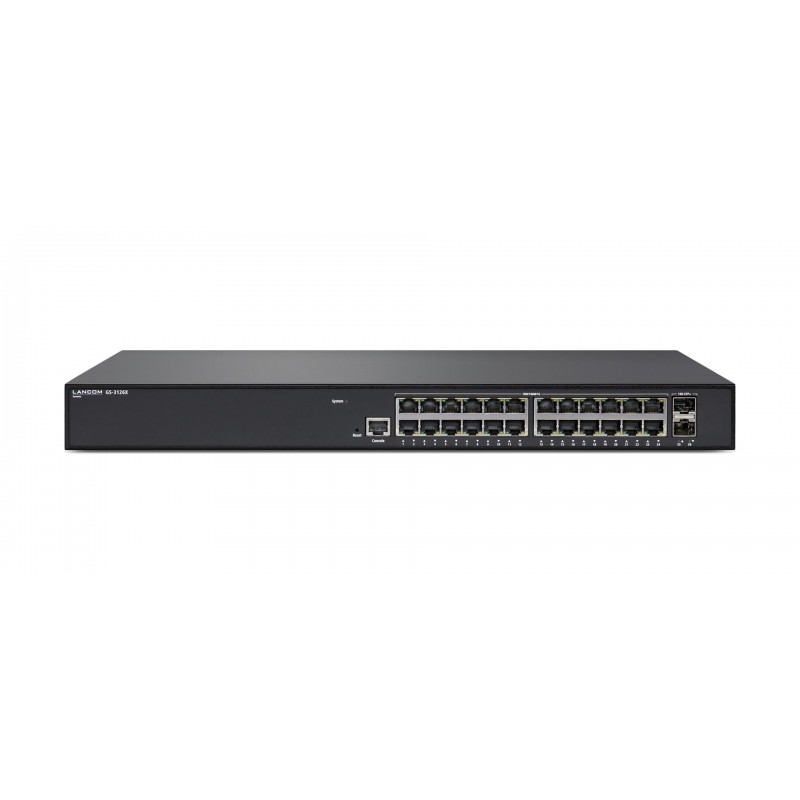

LANCOM GS-3126X Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
61847
New product
20 Items
Shipping 2025-11-25 days
939,00 € tax incl.
| Certificates | |
| Compliance certificates | CE |
| Compliance certificates | Federal Communications Commission (FCC) |
| Data transmission | |
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Number of static routes | 128 |
| Static route | Yes |
| Store-and-forward | Yes |
| Switching capacity | 88 Gbit/s |
| Throughput | 130 Mpps |
| Design | |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Speed |
| LED indicators | System |
| LED indicators | Link |
| LED indicators | Activity |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Logistics data | |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 85176200 |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Network | |
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.1ad |
| Number of VLANs | 4096 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | MAC address-based VLAN |
| Virtual LAN features | Voice VLAN |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | Port-based VLAN |
| Virtual LAN features | IP subnet–based VLAN |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| Virtual LAN features | MVRP |
| Virtual LAN features | Tagged VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 102 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
| Cables included | AC |
| Cables included | Serial |
| Quick start guide | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Package depth | 540 mm |
| Package height | 985 mm |
| Package weight | 3.6 kg |
| Package width | 470 mm |
| Performance | |
| Firmware upgradeable | Yes |
| Noise level | 34 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Fiber optic connector | SFP+ |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 2 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 30 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP Source Guard (IPSG) | Yes |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | Guest VLAN |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| DHCP features | DHCP client |
| DHCP features | DHCP relay |
| DHCP features | DHCP server |
| DHCP features | DHCP Option 67 |
| DHCP features | DHCP Option 82 |
| DHCP features | DHCP snooping |
| DHCP features | DHCP Option 66 |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Security algorithms | SNMPv3 |
| SSH/SSL support | Yes |
| Weight & dimensions | |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 2.7 kg |
| Width | 442 mm |
