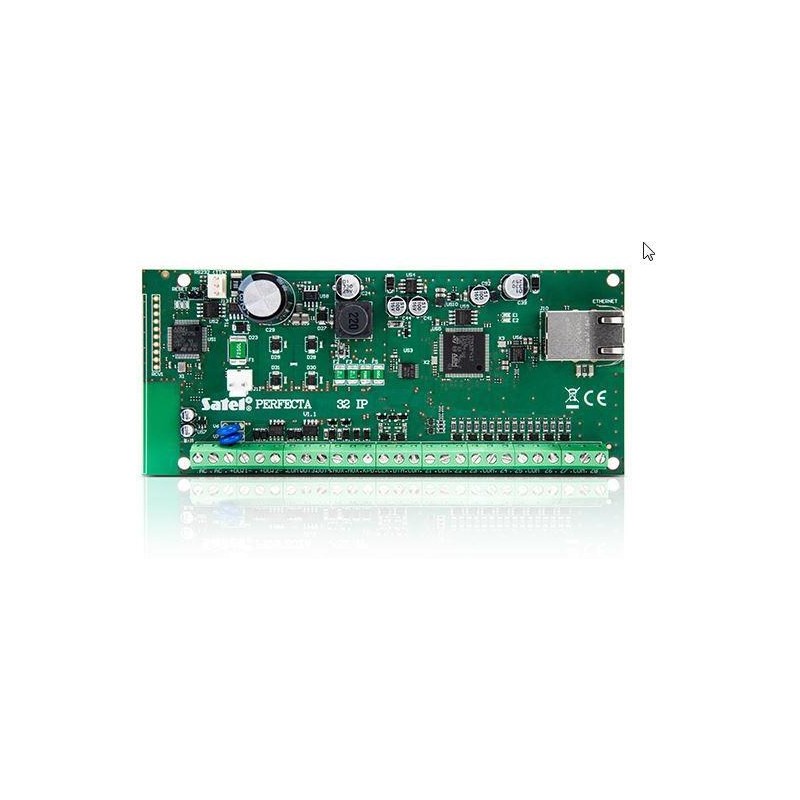

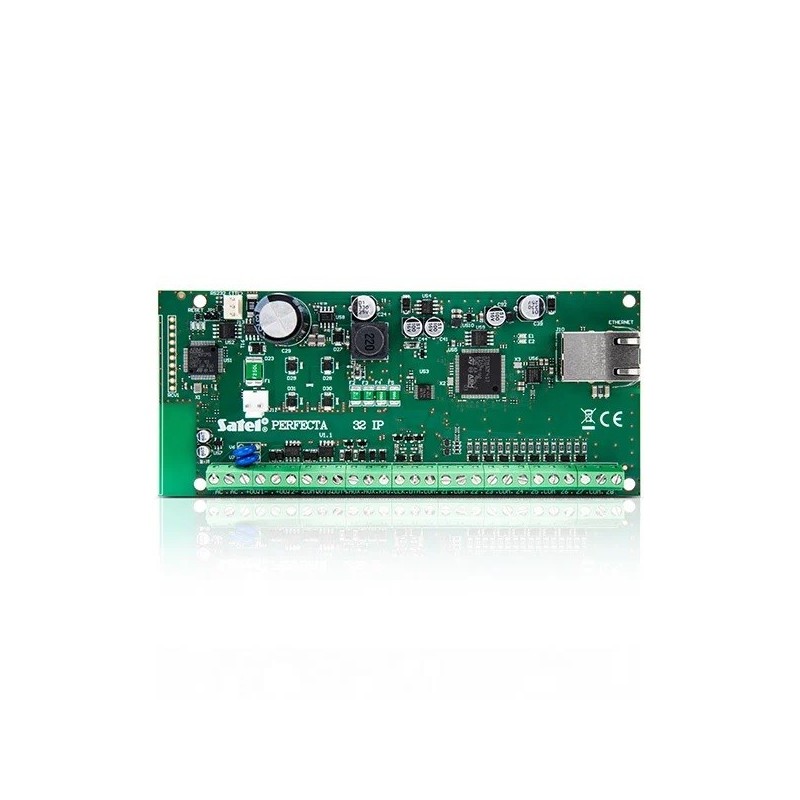

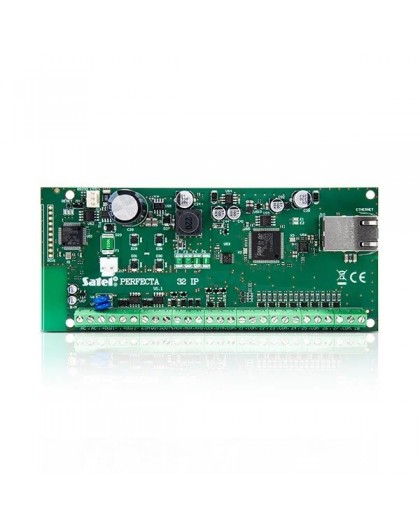

SATEL MOTHERBOARD PERFECTA-IP 32
PERFECTA-IP32
New product
17 Items
Shipping 2025-11-18 days
189,00 € tax incl.
| Features | |
| Countdown timer | Yes |
| Environmental class | II |
| Event memory | 3584 |
| Maximum number of programmable inputs | 32 |
| Maximum number of programmable outputs | 12 |
| Number of alarm zones | 2 |
| Number of users | 15 user(s) |
| Operating temperature (T-T) | 10 - 55 °C |
| Product colour | Green |
| Product type | Motherboard |
| Programmable wire inputs | 8 |
| Programmable wire outputs | 4 |
| Recommended transformer | 40 VA |
| Relative humidity | 0 - 93% |
| Supply outputs | 2 |
| Telephone numbers for notification | 8 |
| Voice prompts | Yes |
| Power | |
| AUX out | 500 mA / 12 V DC |
| High-current programmable outputs | 1000 mA / 12 V DC |
| KPD output | 500 mA / 12 V DC |
| Low-current programmable outputs | 25 mA / 12 V DC |
| Maximum battery current draw | 110 mA |
| Maximum current consumption | 200 mA |
| Output current | 2 A |
| Output voltage | 12 V |
| Power consumption (standby) | 100 mA |
| Power supply voltage | 18 V |
| Safety warning | |
| Hazard pictogram(s) | GHS08: Health hazard |
| Hazard pictogram(s) | GHS07: Harmful |
| Weight & dimensions | |
| Depth | 68 mm |
| Weight | 108 g |
| Width | 160 mm |
