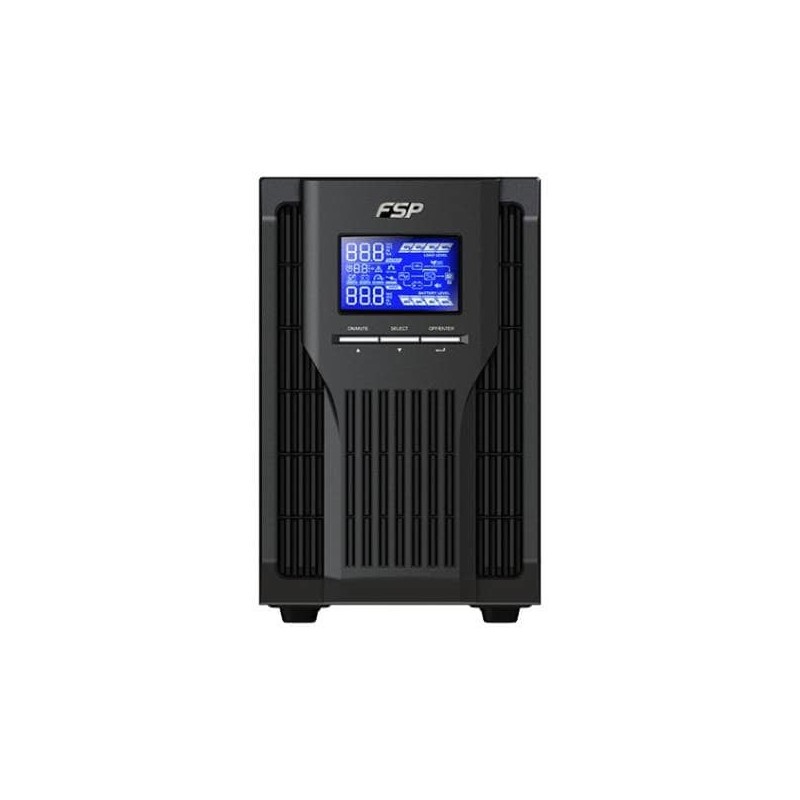

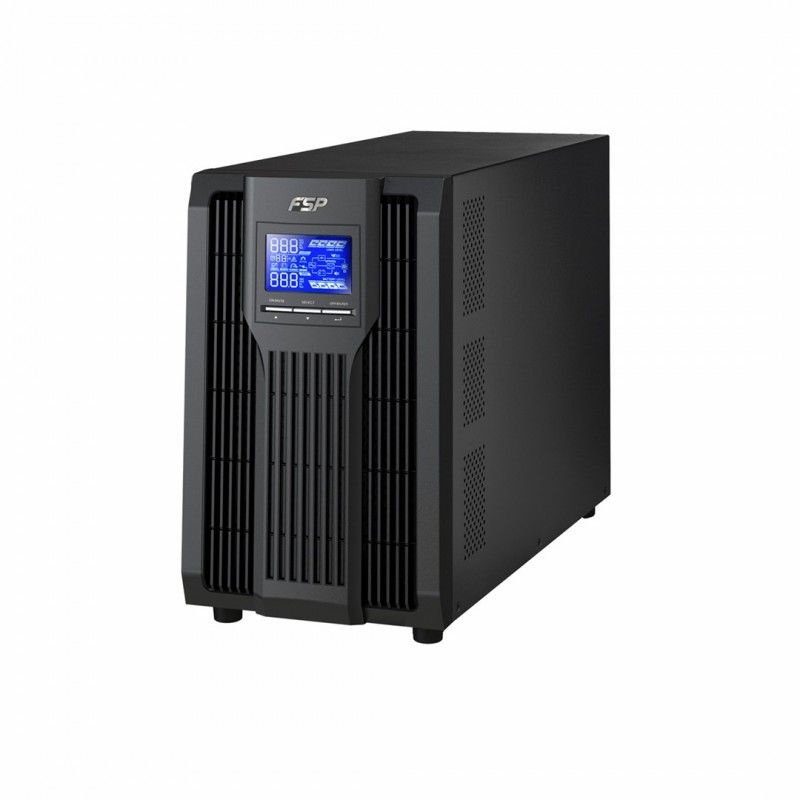

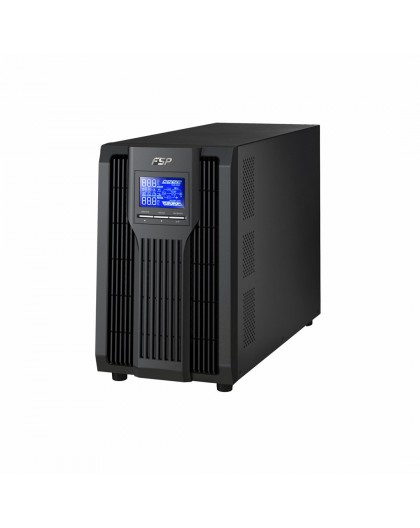

FSP Champ Tower 3K uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W

Reference: PPF24A1807

Condition: New product

6 Item Items

Shipping 2025-11-24 days

519,00 € tax incl.

Battery
Battery capacity	9 Ah
Battery recharge time (90%)	4 h
Battery voltage	12 V
Number of battery cells	6
Typical backup time at full load	3.5 min
Typical backup time at half load	9.8 min
Design
Control type	Buttons
Display type	LCD
Form factor	Tower
LED indicators	Yes
Product colour	Black
Features
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Audible alarm(s)	Yes
Crest factor	3:1
Input frequency	40 - 70 Hz
Input operation voltage (max)	300 V
Input operation voltage (min)	120 V
Noise level	50 dB
Output frequency	47/63 Hz
Output operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output power	2700 W
Output power capacity	3 kVA
Output voltage regulation	1%
Power factor	0.99
Total Harmonic Distortion (THD) (linear load)	3%
Total Harmonic Distortion (THD) (non-linear load)	6%
UPS topology	Double-conversion (Online)
Waveform	Sine
Logistics data
Harmonized System (HS) code	85078000
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C
Packaging content
Batteries included	Yes
Packaging data
Cables included	Input power cable, USB cable
Manual	Yes

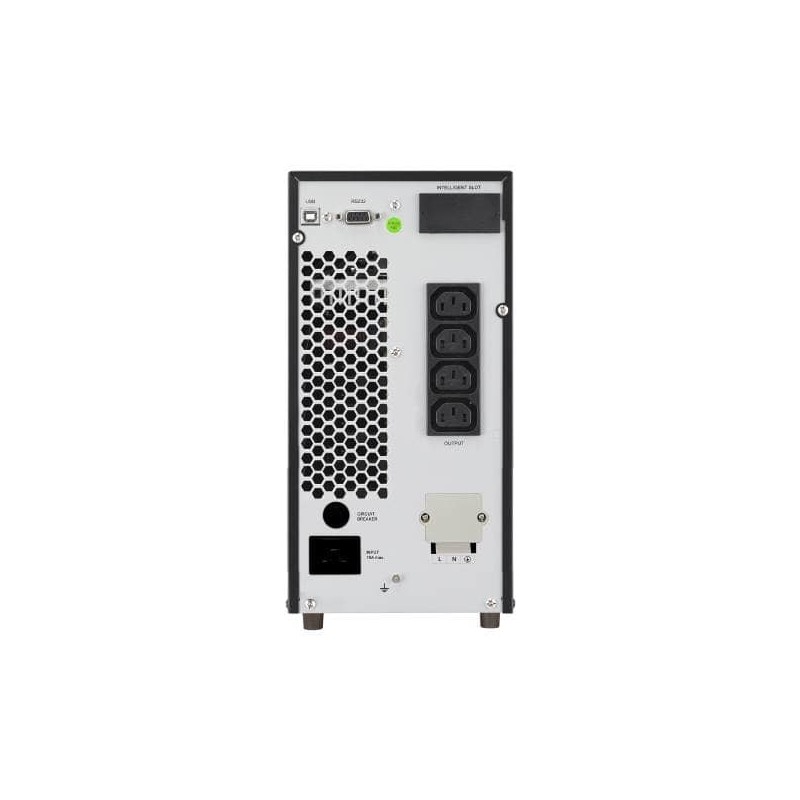

Ports & interfaces
Number of output IEC jumpers	4
RS-232 ports	1
Serial interface	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
USB port	Yes
USB port type	USB Type-B
Weight & dimensions
Depth	421 mm
Height	318 mm
Weight	27.6 kg
Width	190 mm
