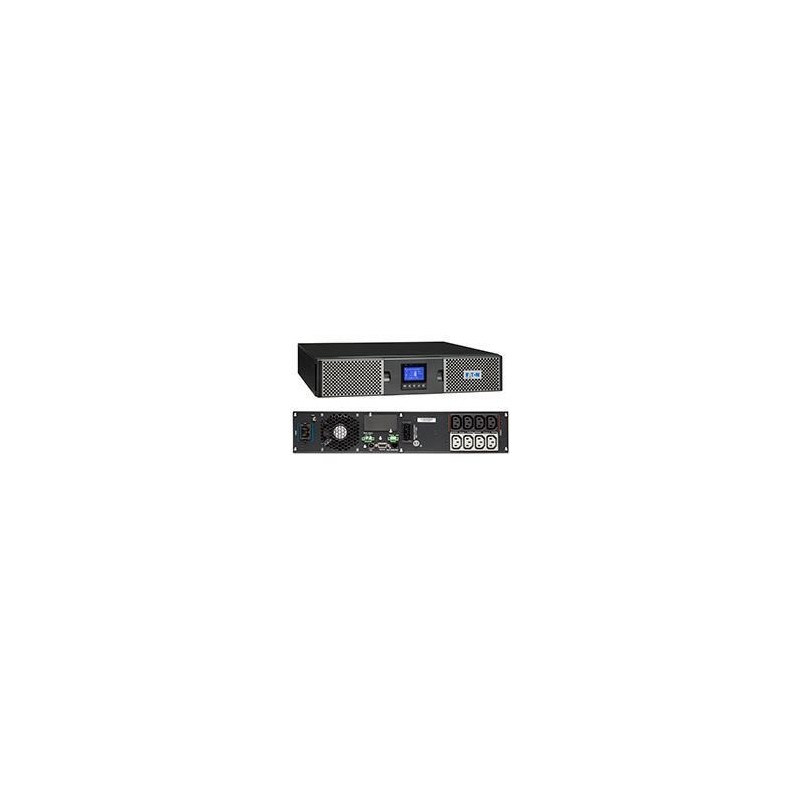

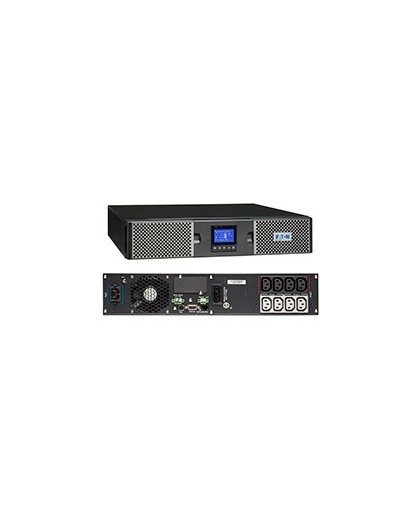

Home / ///Eaton 9PX 1kVA uninterruptible power supply (UPS) Double-conversion (Online) 1000 W 8 AC outlet(s)
New Eaton 9PX 1kVA uninterruptible power supply (UPS) Double-conversion (Online) 1000 W 8 AC outlet(s)

Eaton 9PX 1kVA uninterruptible power supply (UPS) Double-conversion (Online) 1000 W 8 AC outlet(s)

EATON

9PX1000IRT2U

New product

11 Items

Shipping 2025-11-25 days

1 209,00 € tax incl.

Battery
Automatic battery testYes
Battery technologySealed Lead Acid (VRLA)
Hot-swap batteryYes
Typical backup time at full load6 min
Typical backup time at half load16.5 min
Certificates
CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Design
Display typeLCD
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Rack capacity2U
Features
Efficiency91.5%
Input frequency40/70 Hz
Input operation voltage (max)276 V
Input operation voltage (min)176 V
Noise level35 dB
Number of input phases1
Output frequency50/60 Hz
Output operation voltage (max)240 V
Output operation voltage (min)200 V
Output power1000 W
Output power capacity1 kVA
Power factor1
Power protection featuresBattery discharge
UPS topologyDouble-conversion (Online)
WaveformPure sine
Logistics data
Harmonized System (HS) code85078000
Operational conditions
Operating temperature (T-T)0 - 40 °C
Other features
Nominal input voltage230 V
Packaging content
Rack mount kitYes
Packaging data
Bundled softwareIntelligent Power Software suite
Management card includedNo
Ports & interfaces
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Power plugC14 coupler
RS-232 ports1
Serial interfaceYes
Serial interface typeRS-232
USB 2.0 ports quantity1
USB portYes
Safety regulation & standards
SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Depth450 mm
Height86.5 mm
Weight17.4 kg
Width440 mm
