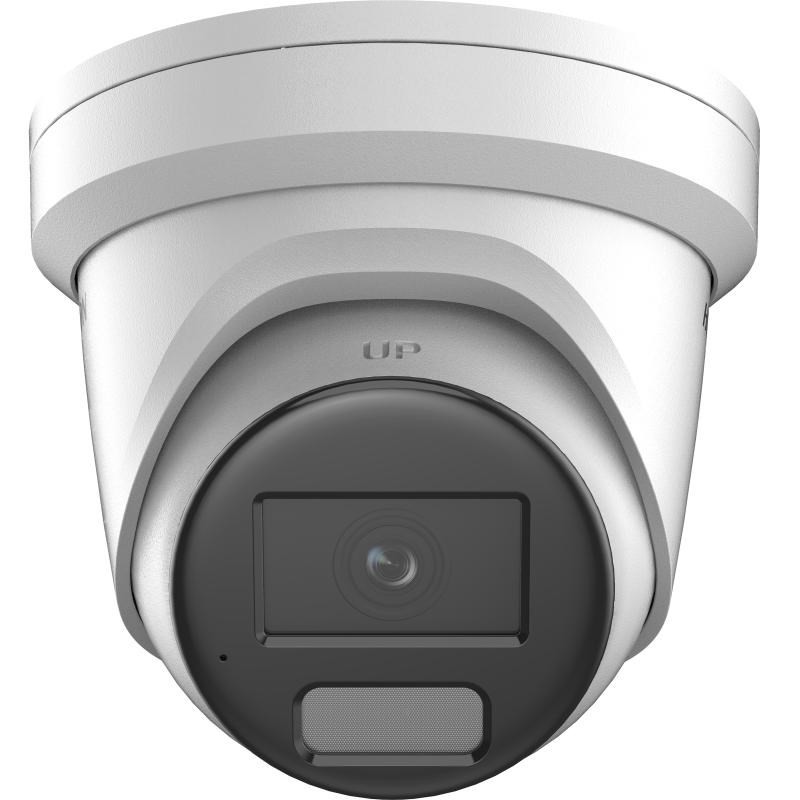

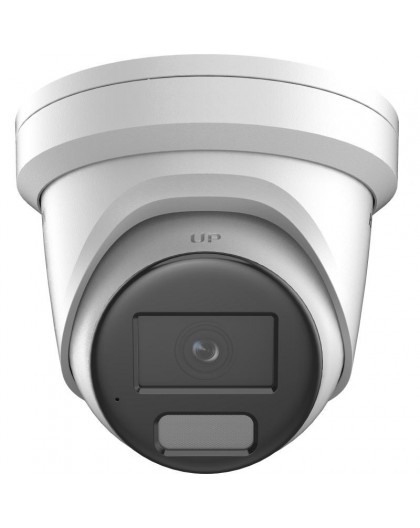

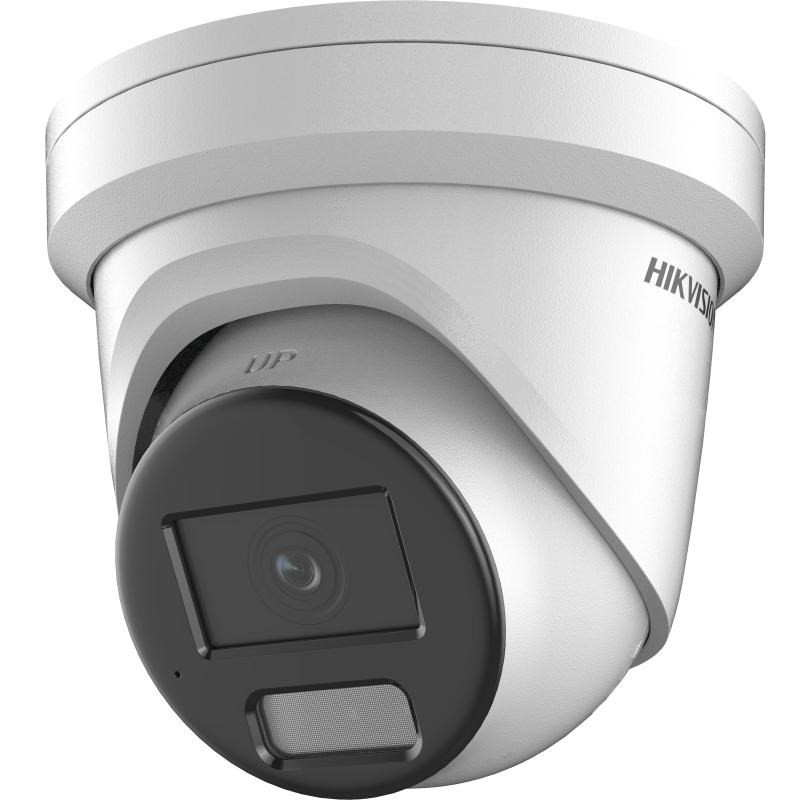

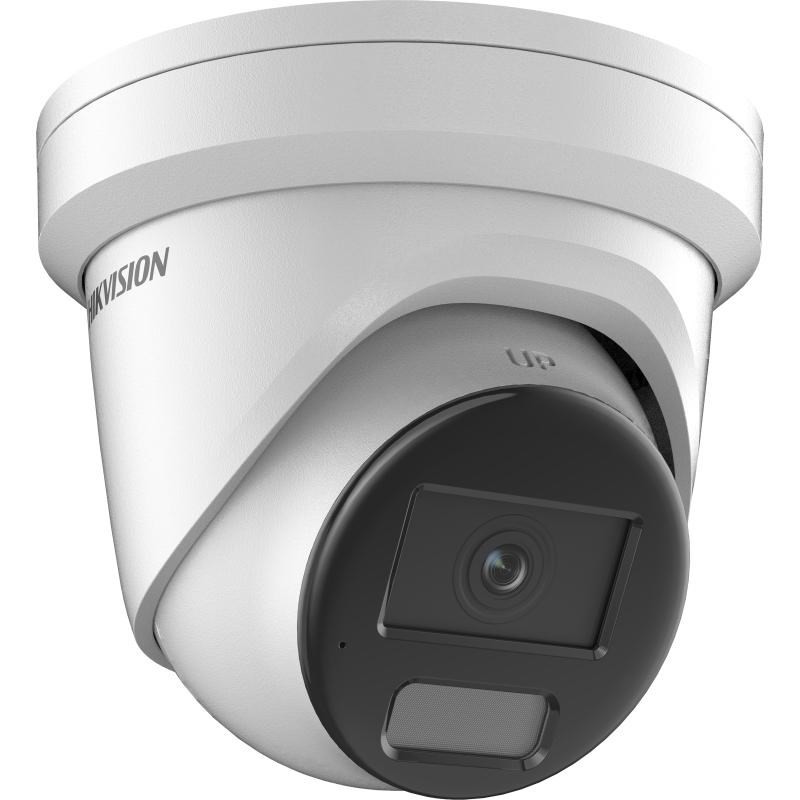

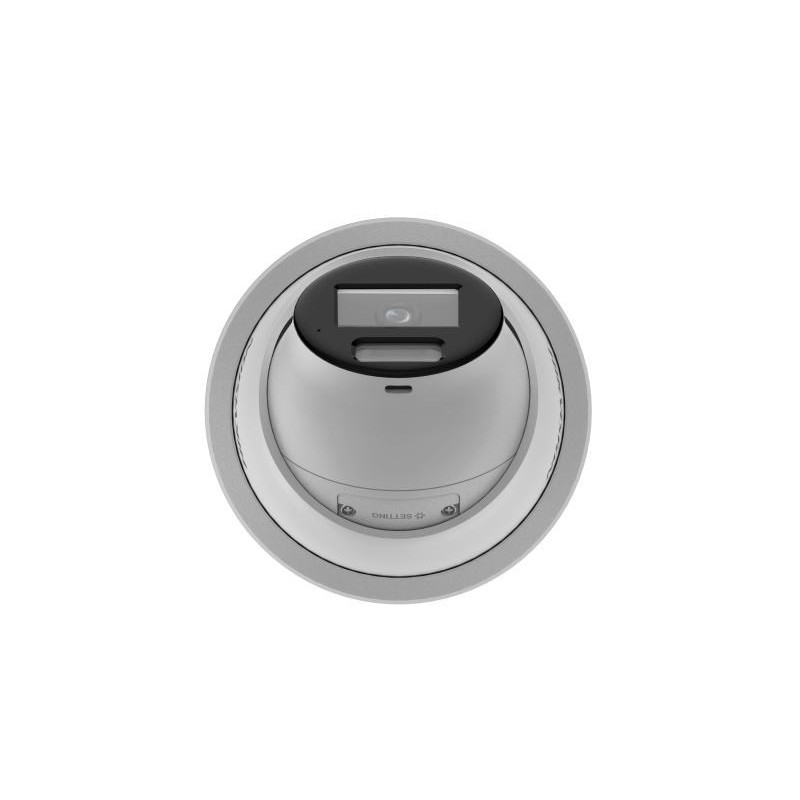

IP Camera DS-2CD2386G2H-IU(4mm)(eF)
521705
New product
10 Items
Shipping 2025-11-18 days
209,00 € tax incl.
| Audio | |
| Audio formats supported | G.711 A-law |
| Audio formats supported | G.711 μ-law |
| Audio formats supported | MP3 |
| Audio formats supported | PCM |
| Audio formats supported | G.726 |
| Audio formats supported | AAC-LC |
| Audio formats supported | MP2L2 |
| Audio formats supported | G.722.1 |
| Bit rate range | 8 - 320 Kbit/s |
| Built-in microphone | Yes |
| Sample rates | 8 - 48 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Camera | |
| Angle of rotation | 360° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, diagonal | 114.2° |
| Lens viewing angle, horizontal | 93.3° |
| Lens viewing angle, vertical | 47.2° |
| Minimum illumination | 0 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 90° |
| Design | |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Product colour | White |
| Protection features | Water resistant |
| Protection features | Dust resistant |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Detect distance | 109 m |
| Fixed focal length | 4 mm |
| Identify distance | 10 m |
| Maximum aperture number | 1 |
| Number of lenses | 1 |
| Observe distance | 43 m |
| Recognize distance | 21 m |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Reset button | Yes |
| Web-based management | Yes |
| Network | |
| Bluetooth | No |
| Client interoperability | iVMS-4200, Hik-Connect, Hik-Central |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Live view | Yes |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1x |
| Number of simultaneous live view channels | 6 channels |
| Number of users | 32 user(s) |
| Quality of Service (QoS) support | Yes |
| User access level | Administrator, Operator, User |
| Wi-Fi | No |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Other features | |
| Browser supported | IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ |
| Packaging content | |
| Number of cameras | 1 |
| Packaging data | |
| Package depth | 170 mm |
| Package height | 160 mm |
| Package weight | 1.23 kg |
| Package width | 170 mm |
| Performance | |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Number of languages | 33 |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| DC output current | 0.58 A |
| DC output voltage | 12 |
| Power consumption (max) | 7 W |
| Power consumption (Power over Ethernet (PoE)) | 8.5 W |
| Power source type | DC, PoE |
| Security | |
| Active tampering alarm | Yes |
| Audit log | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Digest authentication | Yes |
| Digital watermark | Yes |
| Heartbeat | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Password reset via email | Yes |
| Pixel counter | Yes |
| Privacy protection | Yes |
| Security algorithms | EAP-TLS |
| Security algorithms | HTTPS |
| Security algorithms | EAP-MD5 |
| Security algorithms | EAP-LEAP |
| Security algorithms | TLS |
| Video motion detection | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Compatible memory cards | MicroSDHC |
| Compatible memory cards | MicroSDXC |
| Maximum memory card size | 512 GB |
| Sustainability | |
| Compliance certificates | UL |
| Compliance certificates | Low Voltage Directive (LVD) |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | CB |
| Technical details | |
| Lens mount interface | M12 |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Sharpness |
| Image quality adjustment | Saturation |
| Image quality adjustment | Contrast |
| Image quality adjustment | Brightness |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported graphics resolutions | 640 x 360 |
| Supported graphics resolutions | 2688 x 1520 |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported graphics resolutions | 3840 x 2160 |
| Total megapixels | 8 MP |
| Video compression formats | H.265 |
| Video compression formats | H.265+ |
| Video compression formats | H.264 |
| Video compression formats | M-JPEG |
| Video compression formats | H.264+ |
| Video streaming | Yes |
| Weight & dimensions | |
| Diameter | 13.8 cm |
| Height | 115.4 mm |
| Weight | 775 g |
