Home / ///IP CAMERA DAHUA IPC-HFW3541T-ZAS-27135-S2
New IP CAMERA DAHUA IPC-HFW3541T-ZAS-27135-S2

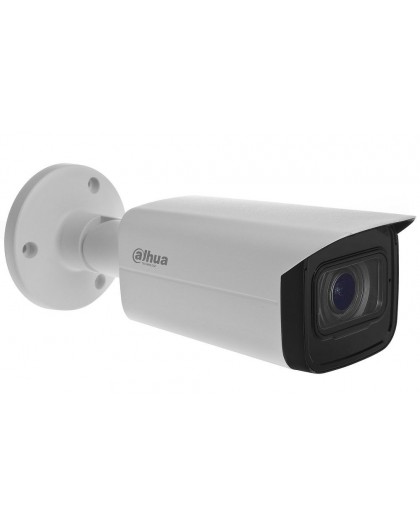

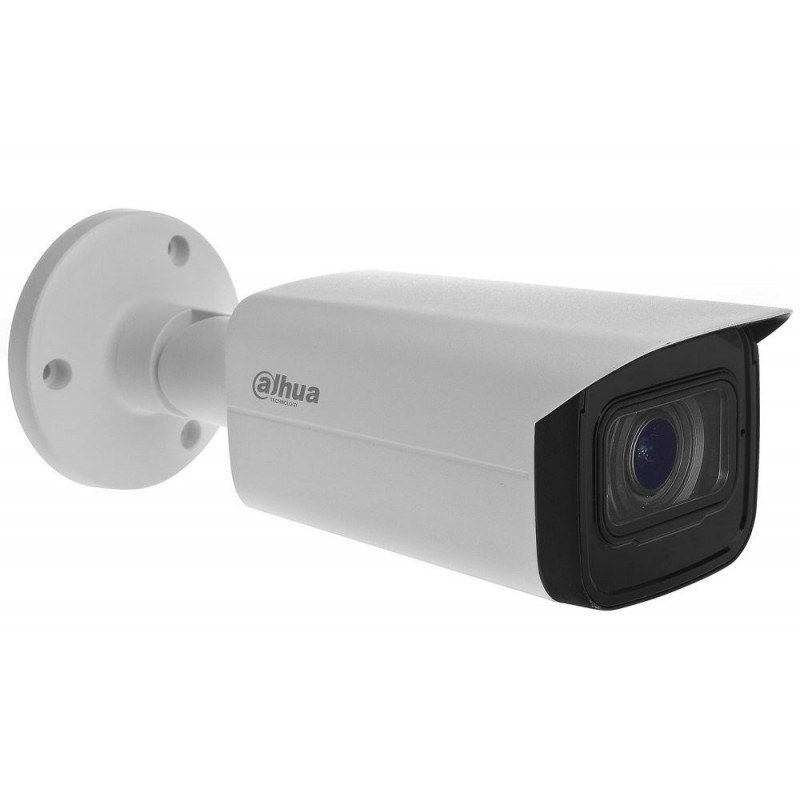

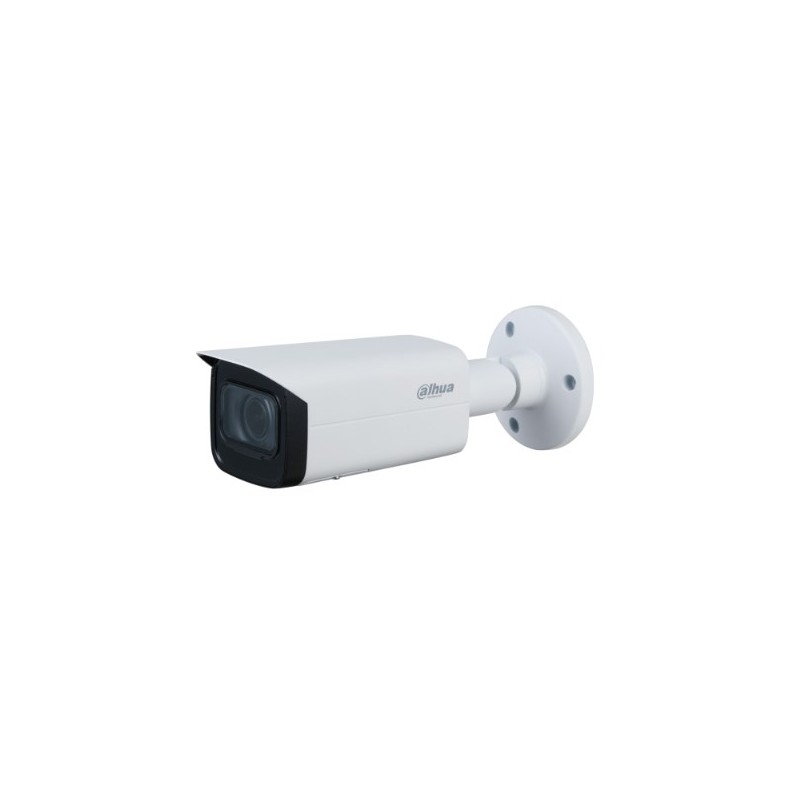

IP CAMERA DAHUA IPC-HFW3541T-ZAS-27135-S2

DAHUA

IPC-HFW3541T-ZAS-27135-S2

New product

27 Items

Shipping 2025-11-18 days

269,00 € tax incl.

Audio
Audio formats supportedG.711Mu
Audio formats supportedG.726
Audio formats supportedG.723
Audio formats supportedPCM
Audio formats supportedG.711a
Built-in microphoneYes
Camera
Adjustment shutter speedAuto/Manual
Camera shutter speed1/3 - 1/100000 s
Lens viewing angle, horizontal99°
Lens viewing angle, vertical71°
Minimum illumination0.005 lx
Pan range0 - 360°
Tilt angle range0 - 90°
White balanceAuto
White balanceManual
White balanceStreet lamp
White balanceOutdoor
White balanceNatural
Design
Degree of protection IKIK10
Form factorTube/dome
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Image sensor
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance0.8 m
Lens typeVarifocal
Maximum aperture number1.5
Number of lenses1
Management features
Web browserYes
Web-based managementYes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Number of users20 user(s)
Quality of Service (QoS) supportYes
Wi-FiNo
Night vision
LED typeIR
Night visionYes
Night vision distance60 m
Number of illumination LEDs4
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Packaging content
Number of cameras1
Performance
CertificationLVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14 2022-04-23
Connectivity technologyWired
Placement supportedExternal / Internal
Signal-to-Noise Ratio (SNR)56 dB
TypeIP security camera
Wide Dynamic Range (WDR)120 dB
Power
DC output voltage12
Power consumption (max)7.4 W
Power consumption (Power over Ethernet (PoE))8.5 W
Power source typeDC, PoE
Storage
Built-in HDDNo
Internal memory512 MB
ROM capacity128 MB
System requirements
Mobile operating systems supportediOS
Mobile operating systems supportedAndroid
Video
Back Light Compensation (BLC)Yes
Bit rate3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2960 x 1668 pixels
Mirror functionYes
Noise reductionYes
Noise reduction technology3D noise reduction
Region of Interest (ROI) encodingYes
Supported graphics resolutions2560 x 1440
Supported graphics resolutions352 x 240
Supported graphics resolutions2304 x 1296
Supported graphics resolutions704 x 480
Supported graphics resolutions2688 x 1520
Supported graphics resolutions1280 x 720 (HD 720)
Supported graphics resolutions2880 x 1620
Supported graphics resolutions2960 x 1668
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported graphics resolutions2048 x 1536 (QXGA)
Supported graphics resolutions352 x 288
Supported graphics resolutions704 x 576
Supported graphics resolutions1280 x 960
Supported graphics resolutions640 x 480 (VGA)
Total megapixels5 MP
Video compression formatsH.264H
Video compression formatsM-JPEG
Video compression formatsH.264B
Video compression formatsH.265
Video compression formatsH.264
Video streamingYes
Weight & dimensions
Depth244.1 mm
Height75.9 mm
Weight820 g
Width79 mm
