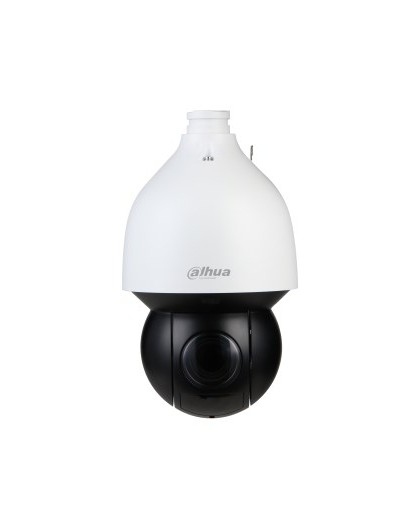

Home / ///Dahua Technology WizSense SD5A232GB-HNR security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall
New Dahua Technology WizSense SD5A232GB-HNR security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall

Dahua Technology WizSense SD5A232GB-HNR security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall

DAHUA

42455

New product

87 Items

Shipping 2025-11-18 days

839,00 € tax incl.

Audio
Signal-to-Noise Ratio (SNR)55 dB
Camera
Camera shutter speed1/1 - 1/30,000 s
Camera shutter typeElectronic
Lens viewing angle, diagonal66.4°
Lens viewing angle, horizontal58.4°
Lens viewing angle, vertical33.4°
Minimum illumination0.0005 lx
Number of Privacy masking areas24
Pan manual speed0.1 - 300 °/sec
Pan range0 - 360°
Pan speed400 °/sec
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 200 °/sec
Tilt speed300 °/sec
White balanceManual
White balanceSodium lamp
White balanceIndoor
White balanceOutdoor
White balanceAuto
White balanceStreet lamp
White balanceNatural
White balanceATW
Design
Fog proofYes
Form factorDome
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling/Wall/Pole
Product colourBlack
Product colourWhite
Image sensor
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Sensor typeCMOS
Lens system
Auto focusYes
Closest focusing distance0.1 m
Digital zoom16x
Focal length range4.5 - 144 mm
FocusMotorized/Manual
Maximum aperture number1.5
Minimum aperture number4
Optical zoom32x
Management features
Web browserYes
Web-based managementYes
Network
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of users20 user(s)
Streaming methodUnicast
Streaming methodMulticast
Night vision
LED typeIR
Night visionYes
Operational conditions
Operating temperature (T-T)-40 - 70 °C
Packaging content
Number of cameras1
Packaging data
Package weight8 kg
Performance
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Power
DC output voltage24
Power consumption (max)22 W
Power consumption (typical)10 W
Power source typeDC, PoE
Security
Motion sensorYes
Storage
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory1024 MB
Maximum memory card size512 GB
ROM capacity4096 MB
Video
Back Light Compensation (BLC)Yes
Bit rate64 kbps–10496 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution1920 x 1080 pixels
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Supported graphics resolutions352 x 288
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported graphics resolutions640 x 480 (VGA)
Supported graphics resolutions1280 x 720 (HD 720)
Supported graphics resolutions704 x 576
Supported graphics resolutions1280 x 960
Total megapixels2 MP
Video compression formatsH.264H
Video compression formatsM-JPEG
Video compression formatsH.264B
Video compression formatsH.264+
Video compression formatsH.265+
Video compression formatsH.265
Video compression formatsH.264
Video streamingYes
Weight & dimensions
Diameter19 cm
Height332 mm
Weight4.7 kg
