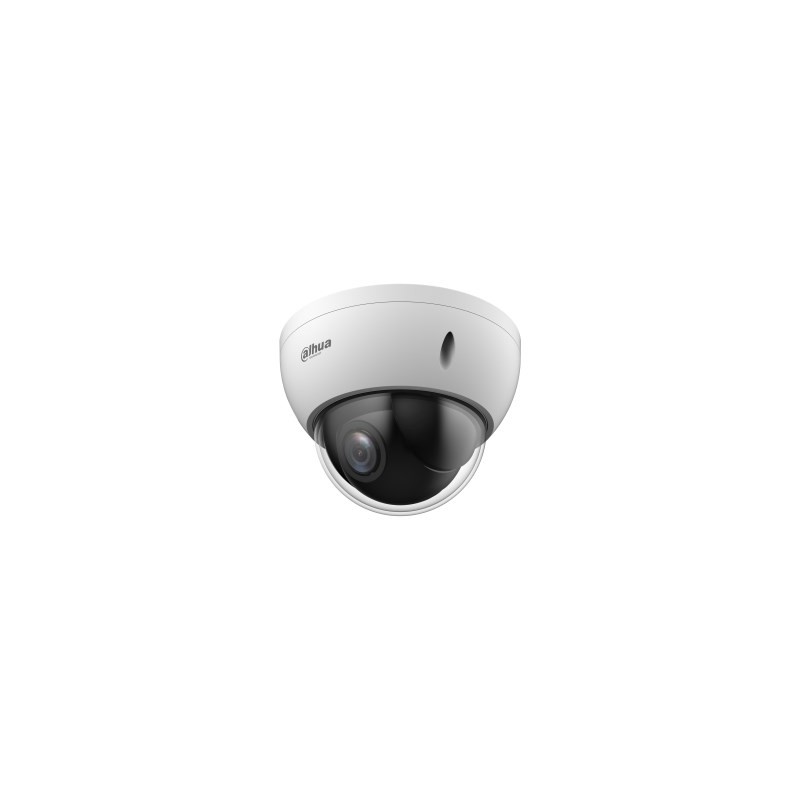

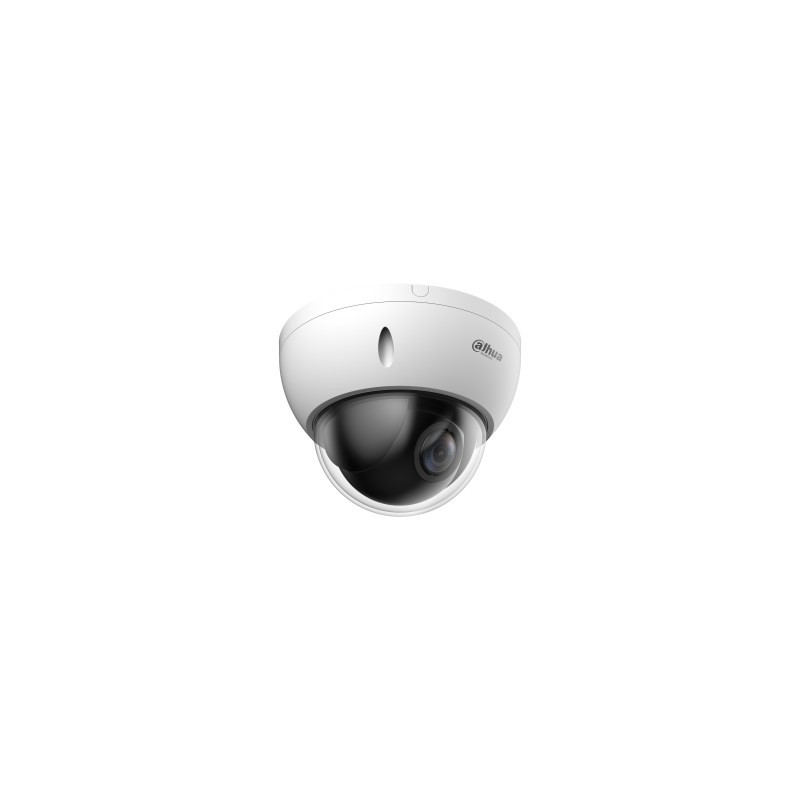

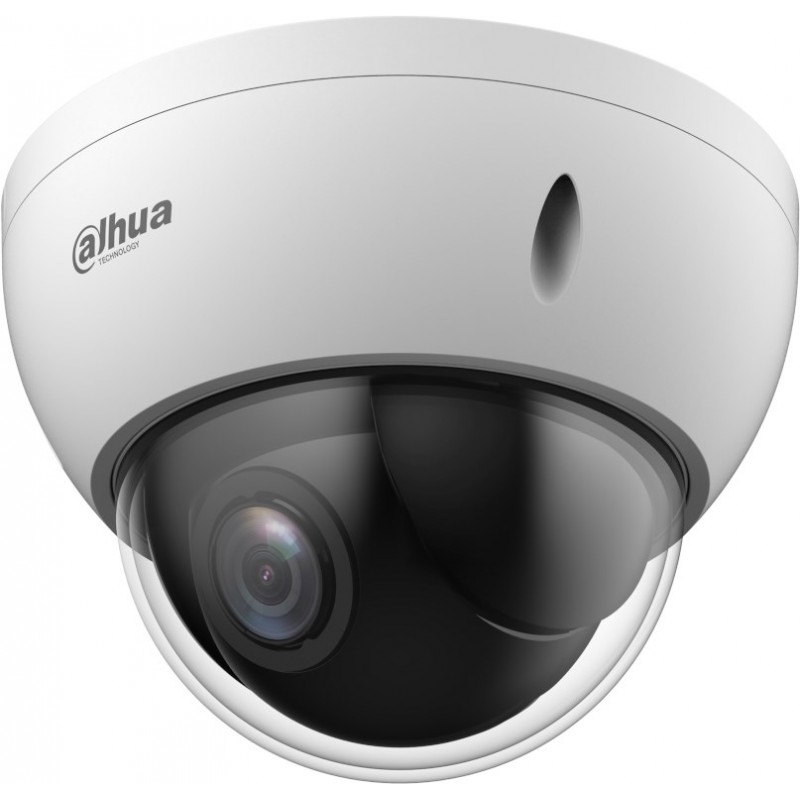

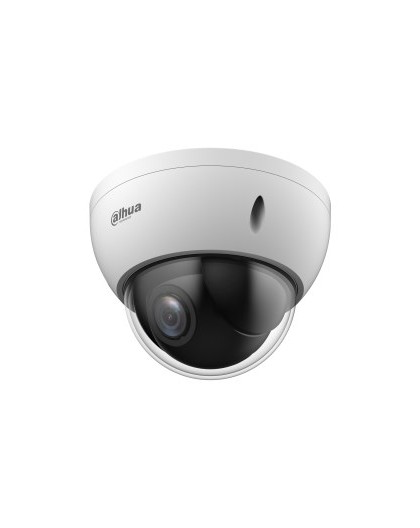

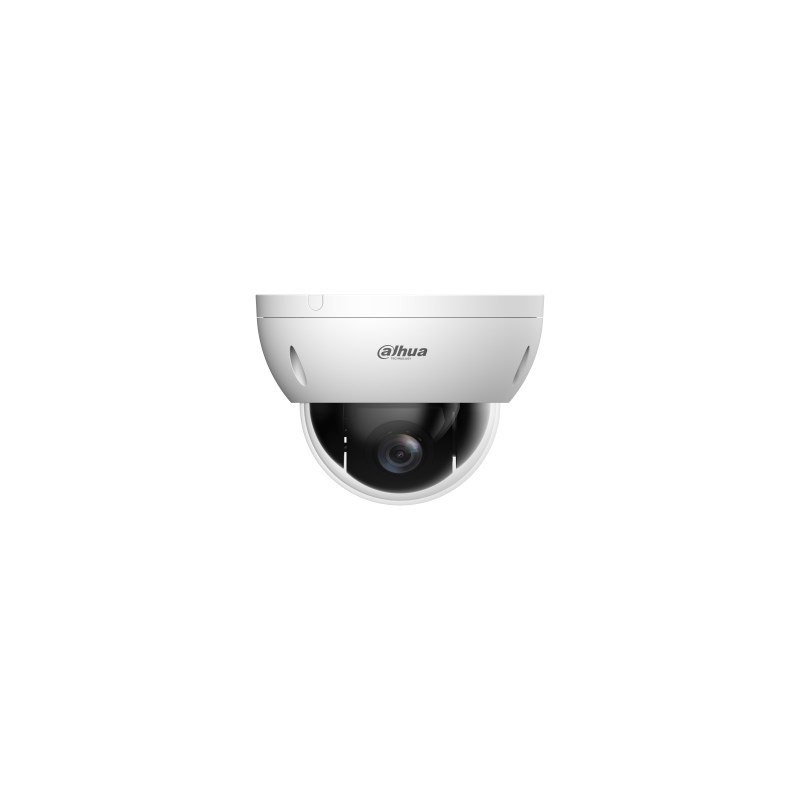

Dahua Technology WizSense SD22204DB-GNY Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
40155
New product
4 Items
Shipping 2025-11-19 days
539,00 € tax incl.
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Camera | |
| Camera pan control | Yes |
| Camera shutter speed | 1/1 - 1/30000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 117.7° |
| Lens viewing angle, horizontal | 99.1° |
| Lens viewing angle, vertical | 53.4° |
| Minimum illumination | 0.005 lx |
| Pan preset speed | 100 °/sec |
| Pan range | 0 - 355° |
| Pan speed | 100 °/sec |
| Tilt angle range | 0 - 90° |
| Tilt speed | 60 °/sec |
| White balance | Indoor |
| White balance | Outdoor |
| White balance | Auto |
| White balance | ATW |
| White balance | Manual |
| Design | |
| Form factor | Dome |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
| Image sensor | |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Closest focusing distance | 1.5 m |
| Detect distance | 165.5 m |
| Digital zoom | 16x |
| Focal length range | 2.8 - 12 mm |
| Focus | Motorized/Manual |
| Identify distance | 16.6 m |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
| Observe distance | 65.4 m |
| Optical zoom | 4x |
| Recognize distance | 33.1 m |
| Zoom capability | Yes |
| Management features | |
| Web browser | Yes |
| Web-based management | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Streaming method | Unicast |
| Wi-Fi | No |
| Night vision | |
| LED type | IR |
| Night vision | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Packaging content | |
| Number of cameras | 1 |
| Packaging data | |
| Package type | Box |
| Package weight | 700 g |
| Performance | |
| Certification | CE, FCC, UL |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Preset sequence |
| PTZ modes | 5 Pattern |
| PTZ modes | 8 Tour |
| PTZ protocols | Pelco-P/D |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| DC output current | 1 A |
| DC output voltage | 12 |
| Power consumption (max) | 6.1 W |
| Power consumption (typical) | 2.3 W |
| Power source type | DC |
| Security | |
| Video motion detection | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 256 MB |
| Maximum memory card size | 512 GB |
| ROM capacity | 128 MB |
| System requirements | |
| Mobile operating systems supported | Android |
| Mobile operating systems supported | iOS |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 448K - 8192Kbps, 5120K - 10240Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 352 x 288 |
| Supported graphics resolutions | 704 x 480 |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported graphics resolutions | 352 x 240 |
| Supported graphics resolutions | 704 x 576 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Supported video modes | 720p |
| Total megapixels | 2 MP |
| Video compression formats | H.264+ |
| Video compression formats | H.265+ |
| Video compression formats | H.264H |
| Video compression formats | H.264 |
| Video compression formats | M-JPEG |
| Video compression formats | H.265 |
| Video compression formats | H.264B |
| Video streaming | Yes |
| Weight & dimensions | |
| Diameter | 12.2 cm |
| Height | 89 mm |
| Weight | 500 g |
