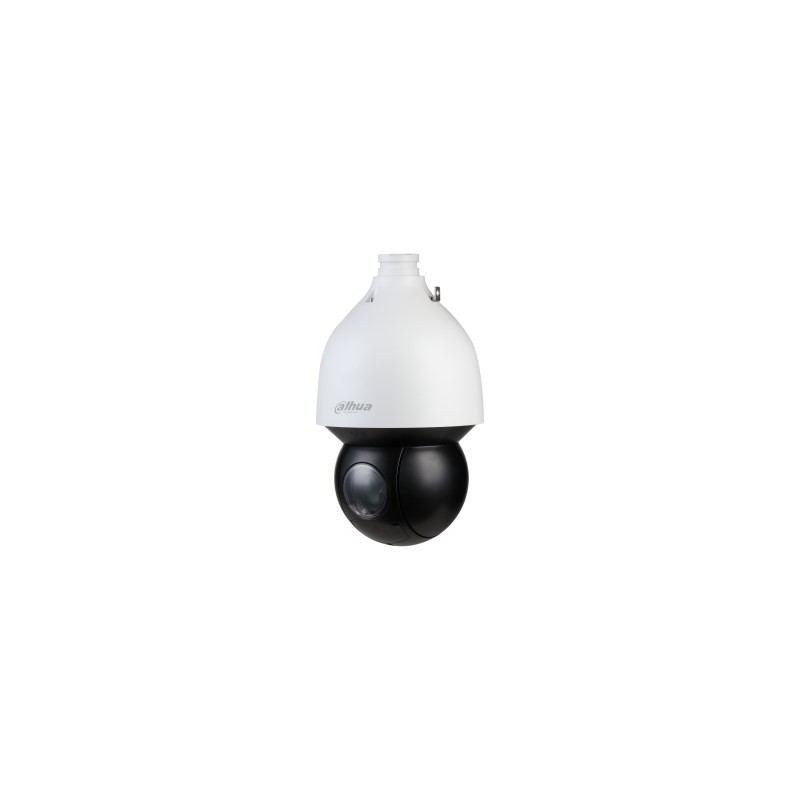

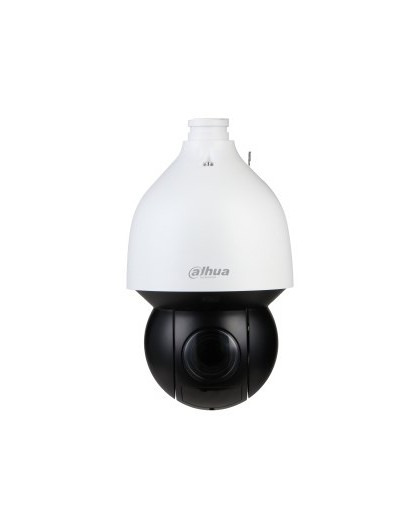

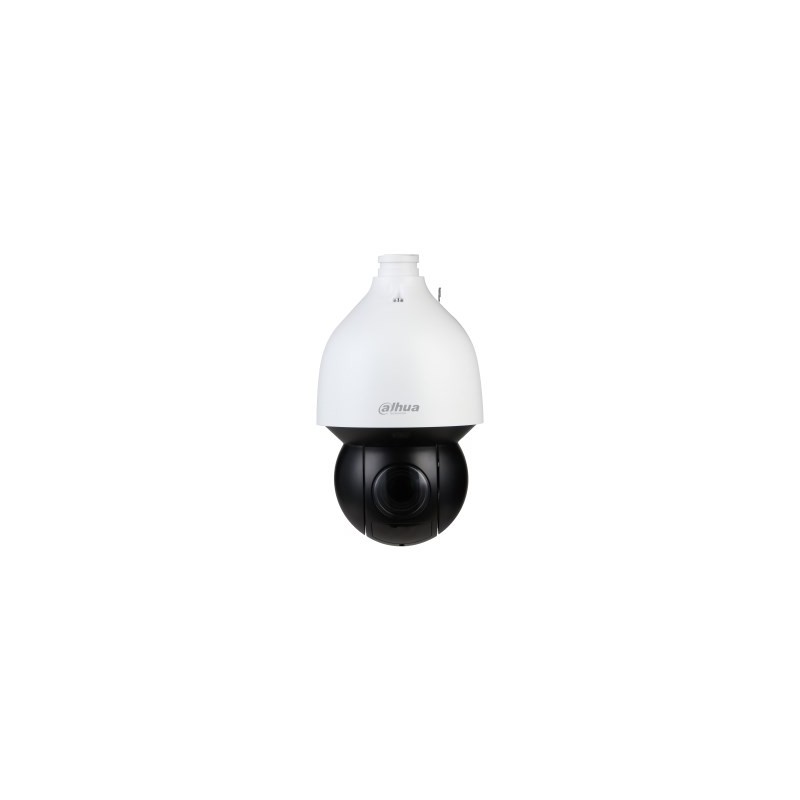

Home / ///Dahua Technology WizSense DH-SD5A225GB-HNR Security Camera Turret CCTV Security Camera Indoor & Outdoor 1920 x 1080 Pixels Ceili
New Dahua Technology WizSense DH-SD5A225GB-HNR Security Camera Turret CCTV Security Camera Indoor & Outdoor 1920 x 1080 Pixels Ceili

Dahua Technology WizSense DH-SD5A225GB-HNR Security Camera Turret CCTV Security Camera Indoor & Outdoor 1920 x 1080 Pixels Ceili

DAHUA

SD5A225GB-HNR

New product

2 Items

Shipping 2025-11-14 days

Warning: Last items in stock!

589,00 € tax incl.

Audio
Audio formats supportedPCM
Audio formats supportedG.726
Audio formats supportedG.723
Audio formats supportedG.722.1
Audio formats supportedG.729
Audio formats supportedG.711
Audio input channels1.0 channels
Audio system full duplexYes
Camera
Lens viewing angle, diagonal67.5–3.2
Lens viewing angle, horizontal58.5–2.8
Lens viewing angle, vertical33.2-1.5°
Minimum illumination0.0005 lx
Pan manual speed0.1 - 300 °/sec
Pan preset speed400 °/sec
Pan range0 - 360°
Tilt angle range15 - 90°
Tilt manual speed0.1 - 200 °/sec
Tilt preset speed300 °/sec
White balanceNatural
White balanceAuto
White balanceStreet lamp
White balanceManual
White balanceSodium lamp
White balanceIndoor
White balanceOutdoor
Design
Form factorTurret
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourBlack
Product colourWhite
Image sensor
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Sensor typeCMOS
Lens system
Auto focusYes
Closest focusing distance0.1 m
Detect distance1614 m
Digital zoom16x
Focal length range4.8–120
FocusManual
Identify distance161 m
Maximum aperture number3.5
Minimum aperture number1.6
Number of lenses1
Observe distance646 m
Optical zoom25x
Recognize distance323 m
Zoom capabilityYes
Management features
Web browserYes
Web-based managementYes
Network
BluetoothNo
Ethernet LANYes
Wi-FiNo
Night vision
LED typeIR
Night visionYes
Number of illumination LEDs4
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-40 - 70 °C
Packaging content
Number of cameras1
Packaging data
Package weight8 kg
Performance
Alarm input/outputYes
Auto-trackingYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
PTZ controlYes
PTZ modes5 Pattern
TypeCCTV security camera
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Power
DC output current2.5 A
DC output voltage24
Power consumption (max)22 W
Power consumption (typical)13 W
Power source typeDC, PoE
Safety warning
WarningsAvoid direct contact with water to prevent electrical damage.
WarningsEnsure that the product is properly installed and protected against falling.
WarningsThe product contains electronic components; do not dispose of with the normal household waste.
Security
Alarm input channels2
Alarm output channels1
Storage
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Internal memory1000 MB
Maximum memory card size512 GB
ROM capacity4000 MB
Video
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Maximum resolution1920 x 1080 pixels
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported graphics resolutions352 x 288
Supported graphics resolutions1280 x 720 (HD 720)
Supported graphics resolutions704 x 576
Supported graphics resolutions1280 x 960
Total megapixels2 MP
Video compression formatsH.264H
Video compression formatsH.265+
Video compression formatsH.264+
Video compression formatsH.264
Video compression formatsH.265
Video compression formatsH.264B
Weight & dimensions
Diameter19 cm
Height332 mm
Weight4.7 kg
