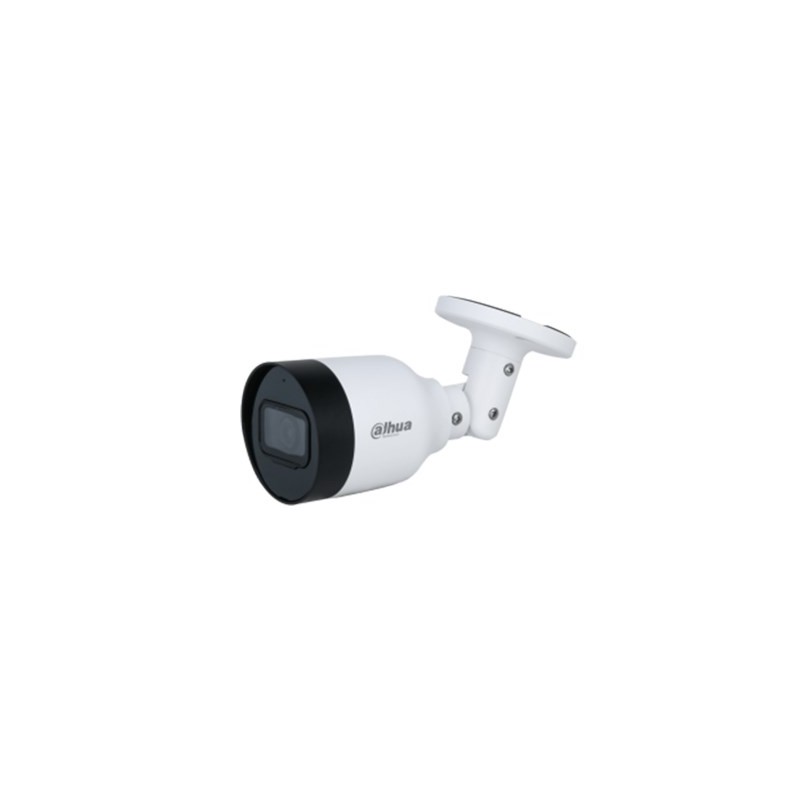

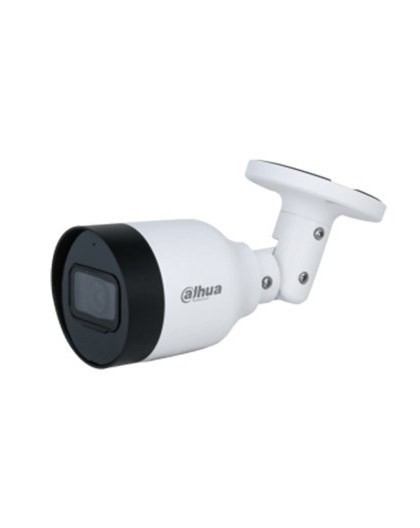

Home / ///DAHUA Camera 1/2.7" 5 Mpx, Smart H.265/H.264, 20 fps @ 5Mpx (2880 × 1620), (2688 × 1520) @25/30 fps, , 2.8mm IPC-HDW1530T-0280B-
New DAHUA Camera 1/2.7" 5 Mpx, Smart H.265/H.264, 20 fps @ 5Mpx (2880 × 1620), (2688 × 1520) @25/30 fps, , 2.8mm IPC-HDW1530T-0280B-

DAHUA Camera 1/2.7" 5 Mpx, Smart H.265/H.264, 20 fps @ 5Mpx (2880 × 1620), (2688 × 1520) @25/30 fps, , 2.8mm IPC-HDW1530T-0280B-

DAHUA

IPC-HDW1530T-0280B-S6

New product

5 Items

Shipping 2025-11-19 days

279,00 € tax incl.

Audio
Audio codecsG.711a; G.711Mu; G.726; PCM
Built-in microphoneYes
Signal-to-Noise Ratio (SNR)56 dB
Camera
Adjustment shutter speedAuto/Manual
Angle of rotation360°
Camera shutter speed1/3 s–1/100000 s
Camera shutter typeElectronic
Field of view (FOV) angle106°
Lens viewing angle, diagonal125°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Minimum illumination0.03 lx
Pan range0 - 360°
Tilt speed90 °/sec
White balanceManual
White balanceNatural
White balanceAuto
White balanceStreet lamp
White balanceOutdoor
Design
Form factorBullet
Housing materialMetal
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourBlack
Product colourWhite
Image sensor
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance0.8 m
Detect distance56 m
Focal length range2.8 mm
Identify distance5.6 m
Maximum aperture number2
Observe distance22.4 m
Recognize distance11.2 m
Management features
Management softwareSmart PSS; DSS; DMSS
Web browserYes
Network
Ethernet LANYes
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-40 - 60 °C
Packaging content
Number of cameras1
Packaging data
Package weight450 g
Performance
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
TypeIP security camera
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Power
Power consumption (Power over Ethernet (PoE))2.3 W
Power consumption (typical)1.9 W
Power source typeDC, PoE
Security
MirrorYes
Security algorithmsHTTPS
Video motion detectionYes
Storage
Internal memory128 MB
ROM capacity16 MB
System requirements
Mobile operating systems supportediOS
Mobile operating systems supportedAndroid
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate20 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2880 x 1620 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Supported graphics resolutions704 x 480
Supported graphics resolutions2688 x 1520
Supported graphics resolutions2560 x 1440
Supported graphics resolutions2880 x 1620
Supported graphics resolutions704 x 576
Supported graphics resolutions2304 x 1296
Supported video modes1080p
Supported video modes720p
Supported video modes1520p
Supported video modes1620p
Video compression formatsH.265+
Video compression formatsH.264B
Video compression formatsH.264+
Video compression formatsH.265
Video compression formatsMPEG
Video compression formatsH.264
Video streamingYes
Weight & dimensions
Depth162.1 mm
Diameter6.53 cm
Height70.1 mm
Weight320 g
