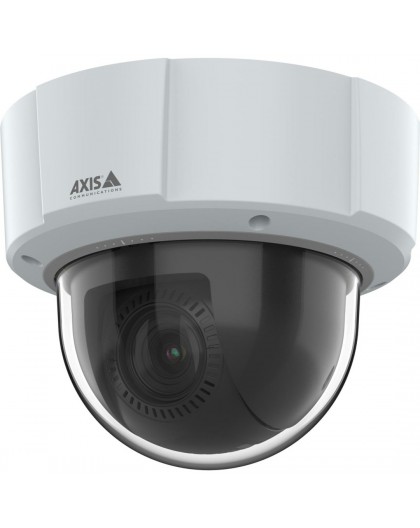

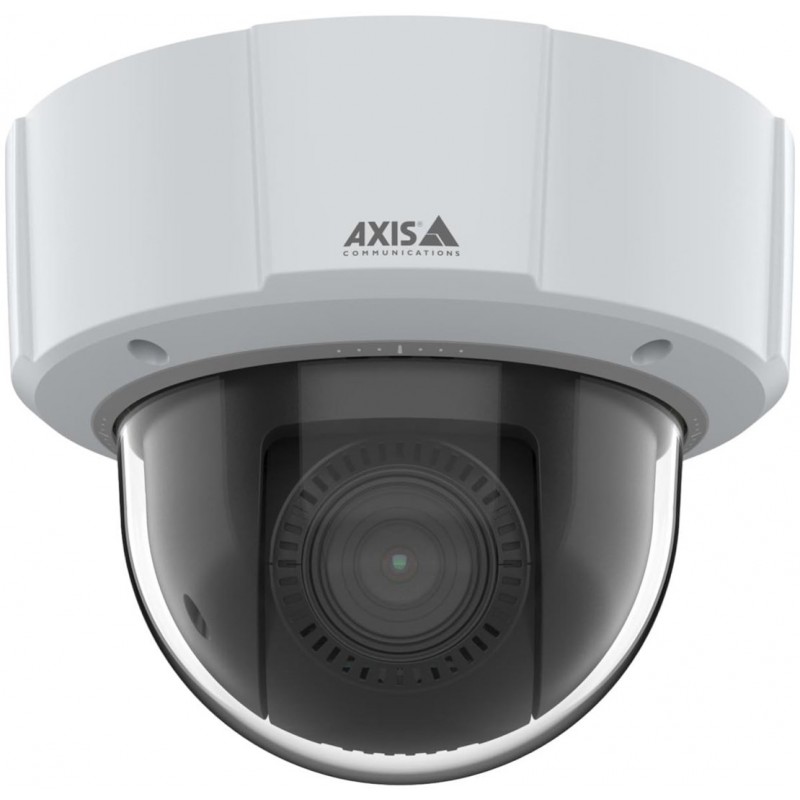

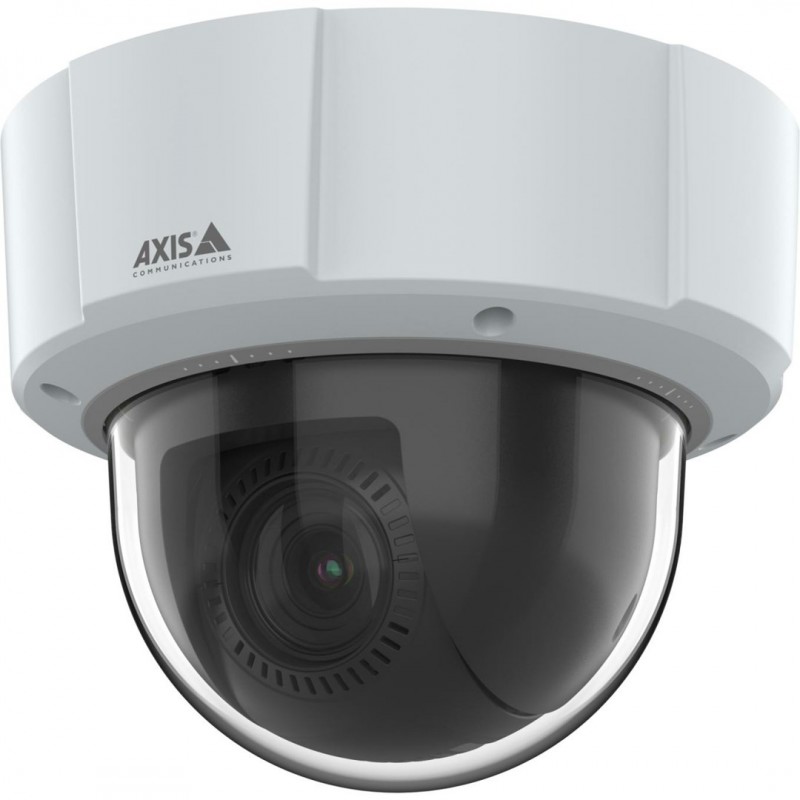

Axis M5526-E Network Surveillance Camera
02768-001
New product
3 Items
Shipping 2025-11-24 days
Warning: Last items in stock!
1 259,00 € tax incl.
| Audio | |
| Audio detection | Yes |
| Audio formats supported | PCM |
| Audio formats supported | LPCM |
| Audio formats supported | AAC-LC |
| Audio formats supported | G.711 |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Camera | |
| Camera pan control | Yes |
| Camera pixel size | 1.998 µm |
| Camera shutter speed | 1/27000 - 0.2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 59.1 - 6.5° |
| Lens viewing angle, vertical | 35 - 3.67° |
| Minimum illumination | 0.01 lx |
| Pan range | 0 - 360° |
| Pan speed | 150 °/sec |
| Tilt angle range | 0 - 90° |
| Tilt speed | 150 °/sec |
| Design | |
| Form factor | Dome |
| Housing material | Polycarbonate (PC) |
| Housing material | Plastic |
| IK code | IK09 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
| Product colour | Black |
| Features | |
| License plate recognition | Yes |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Lens system | |
| Auto focus | Yes |
| Detect distance (tele) | 938 m |
| Detect distance (wide) | 96 m |
| Digital zoom | 12x |
| Focal length range | 4.7 - 47 mm |
| Identify distance (tele) | 93 m |
| Identify distance (wide) | 10 m |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance (tele) | 373 m |
| Observe distance (wide) | 38 m |
| Optical zoom | 10x |
| Recognize distance (tele) | 186 m |
| Recognize distance (wide) | 19 m |
| Zoom capability | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 100% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
| Other features | |
| Doesn't contain | PVC/BFR |
| Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
| Performance | |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| Power | |
| Power consumption | 3.8 mA |
| Power consumption (max) | 11.7 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power consumption (typical) | 4.2 W |
| Power source type | PoE |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Vehicle detection |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Intelligent Video Surveillance (IVS) system features | Moving object |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection |
| Pixel counter | Yes |
| Security algorithms | EAP-TLS |
| Security algorithms | PEAP |
| Security algorithms | TLS |
| Security algorithms | HTTPS |
| Security algorithms | 802.1x RADIUS |
| Security algorithms | MSCHAPv2 |
| Video motion detection | Yes |
| Storage | |
| Compatible memory cards | MicroSDHC |
| Compatible memory cards | MicroSDXC |
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 8192 MB |
| ROM capacity | 1024 MB |
| Sustainability | |
| Compliance certificates | REACH |
| Compliance certificates | RoHS |
| Video | |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness |
| Image quality adjustment | Sharpness |
| Image quality adjustment | Contrast |
| Image quality adjustment | Saturation |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Privacy masking | Yes |
| Supported graphics resolutions | 320 x 180 |
| Supported graphics resolutions | 160 x 120 |
| Supported graphics resolutions | 1600 x 1200 (UXGA) |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Video formats supported | H.264 |
| Video formats supported | HEVC |
| Video formats supported | M-JPEG |
| Video formats supported | MPEG4 |
| Video formats supported | H.265 |
| Video formats supported | AVC |
| Video streaming | Yes |
| Weight & dimensions | |
| Depth | 165 mm |
| Height | 150 mm |
| Weight | 1 kg |
| Width | 165 mm |
