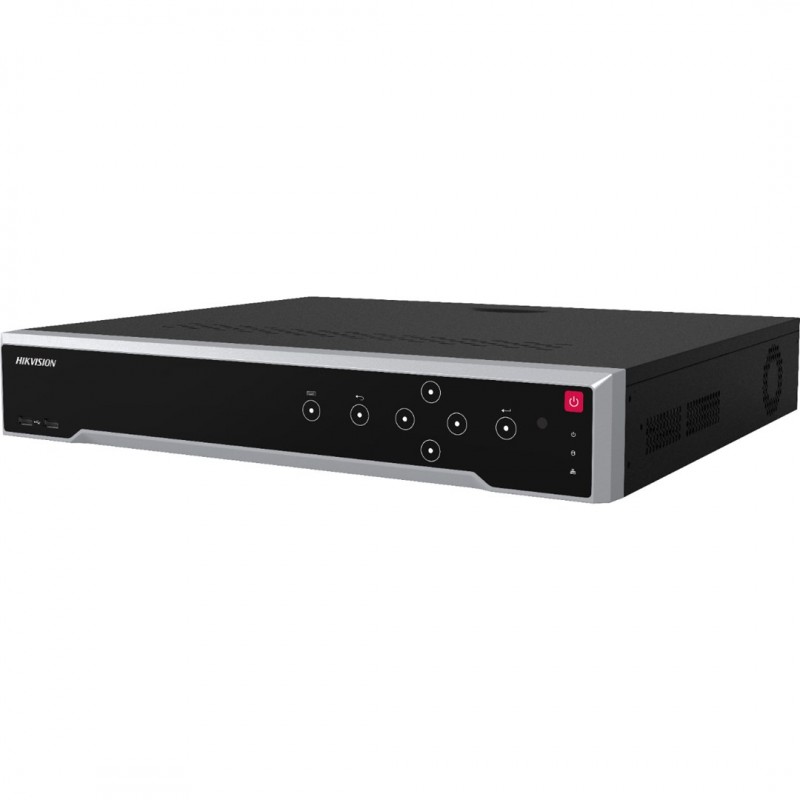

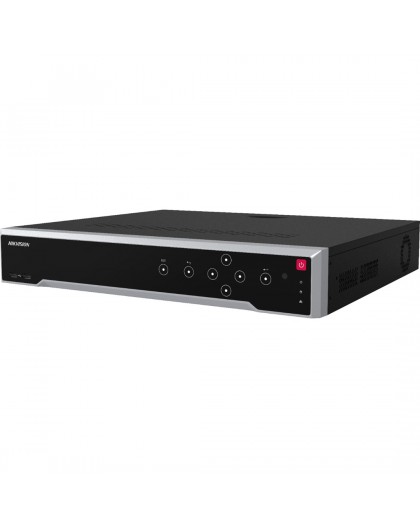

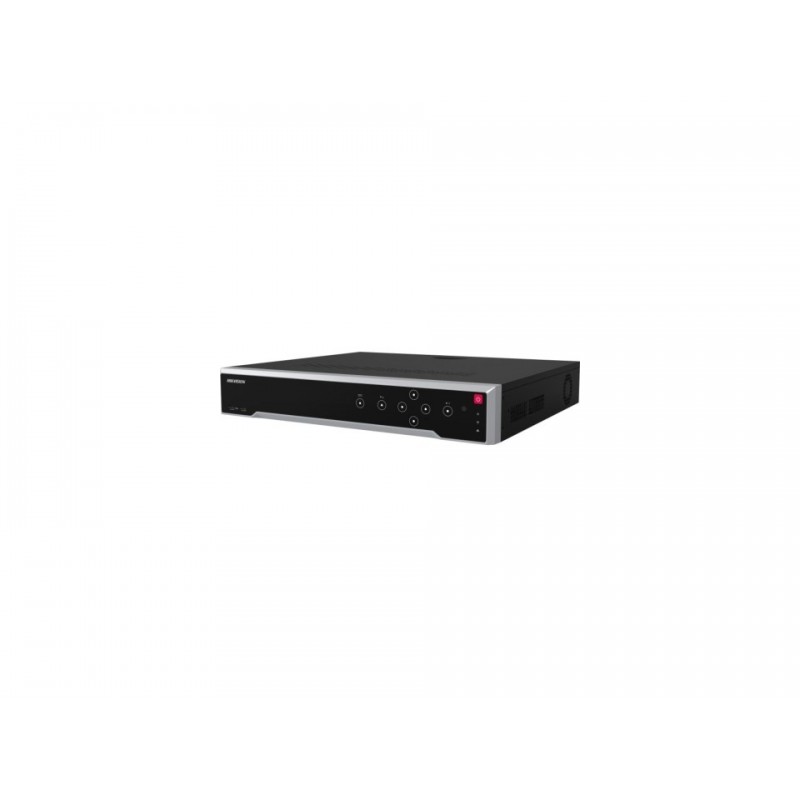

Netzwerk-Recorder Hikvision 32 Channel 4HDD DS-7732NI-M4
7045013
New product
This product is no longer in stock
1 489,00 € tax incl.
| Display | |
| Built-in display | No |
| Features | |
| Brand compatibility | Hikvision Digital Technology |
| Certification | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| On/off switch | Yes |
| Product colour | Black |
| Rack capacity | 1.5U |
| Rack mounting | Yes |
| Hard drive | |
| HDD interface | SATA |
| HDD interface | eSATA |
| Maximum storage capacity | 14 TB |
| Number of HDDs supported | 5 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Performance | |
| Alarm input channels | 16 |
| Alarm output channels | 9 |
| Audio formats supported | AAC |
| Audio formats supported | G.726 |
| Audio formats supported | G.722 |
| Audio formats supported | G.711 μ-law |
| Audio formats supported | G.711 A-law |
| Input bandwidth | 320 Mbit/s |
| Maximum resolution | 7680 x 4320 pixels |
| Number of simultaneously playbacked channels | 16 channels |
| Output bandwidth | 400 Mbit/s |
| Supported resolutions | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Two-way talk | Yes |
| Video formats supported | H.264+ |
| Video formats supported | H.265 |
| Video formats supported | H.265+ |
| Video formats supported | H.264 |
| Video input channels | 32 channels |
| Ports & interfaces | |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| BNC video output | Yes |
| eSATA | Yes |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 10 |
| HDMI output | Yes |
| HDMI ports quantity | 2 |
| Internal SATA ports quantity | 4 |
| Power over Ethernet (PoE) | No |
| RS-232 interface | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 2 |
| Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 1 A |
| Output voltage | 12 V |
| Power consumption (max) | 15 W |
| Total Power over Ethernet (PoE) budget | 200 W |
| Safety warning | |
| Warnings | The product must be disposed of properly in accordance with local regulations for the disposal of electronics. |
| Warnings | The appliance should be installed by a qualified professional. |
| Warnings | Do not expose the device to moisture or extreme temperatures. |
| Weight & dimensions | |
| Depth | 400 mm |
| Height | 75 mm |
| Weight | 5 kg |
| Width | 445 mm |
| Wireless LAN features | |
| Wi-Fi | No |
