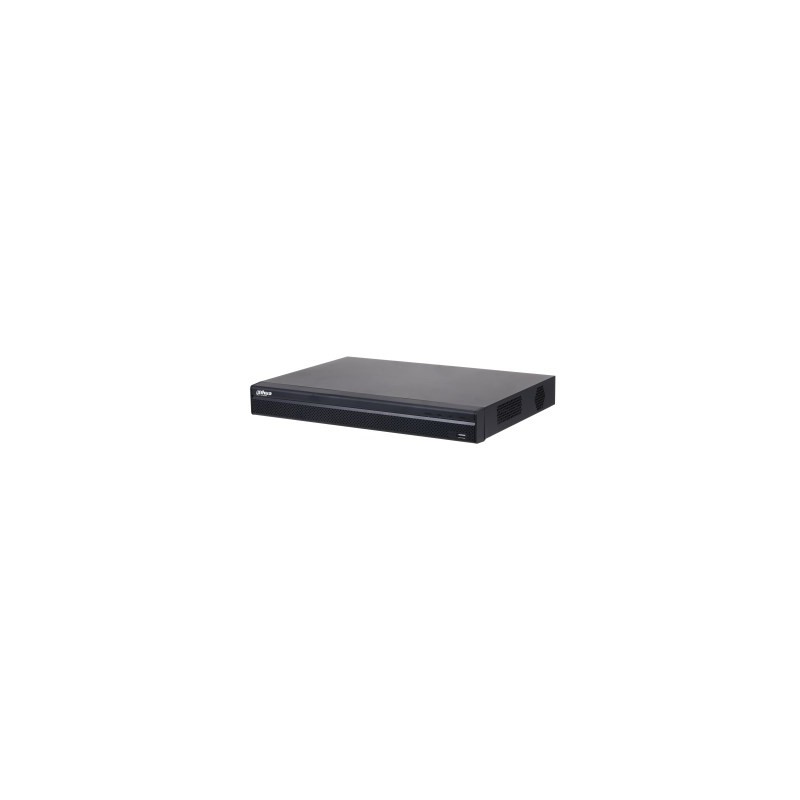

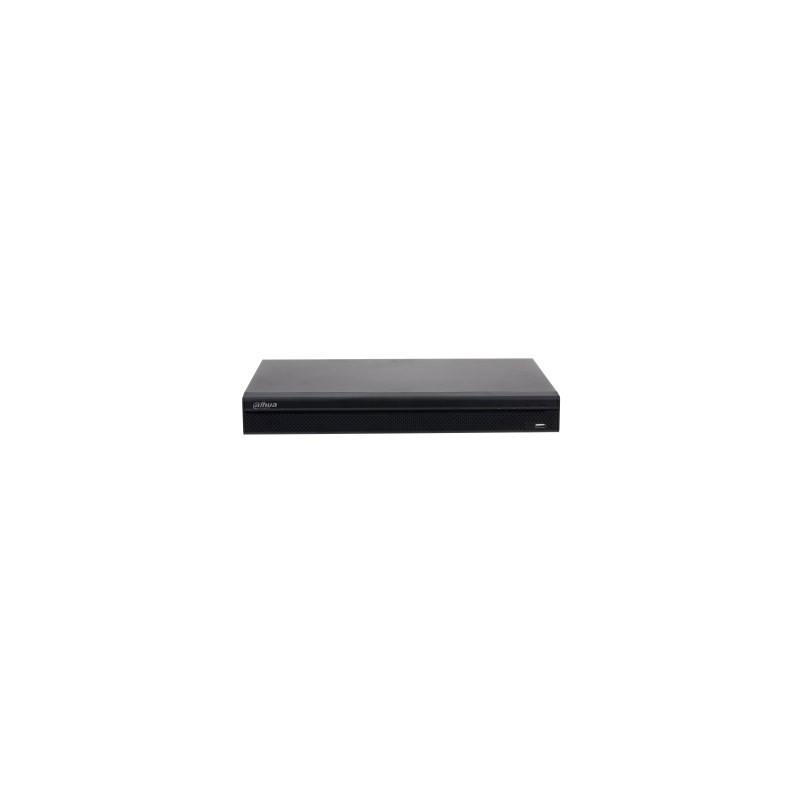

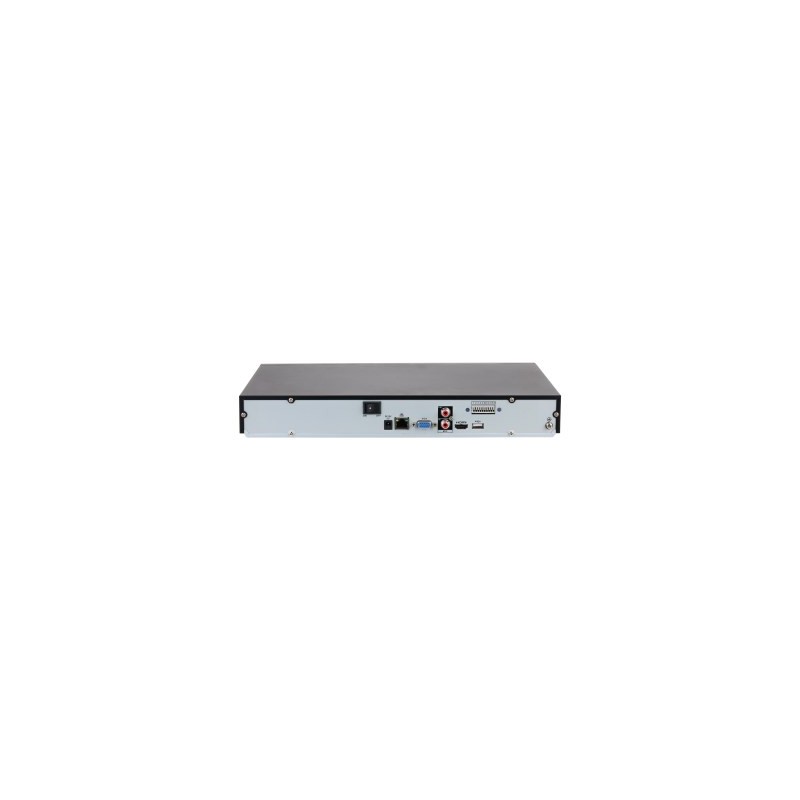

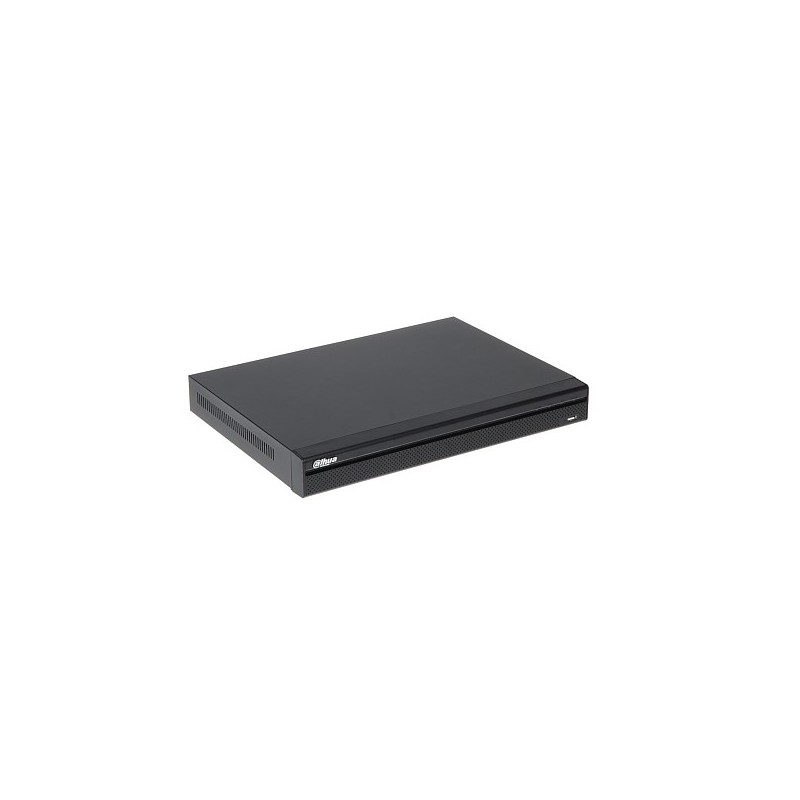

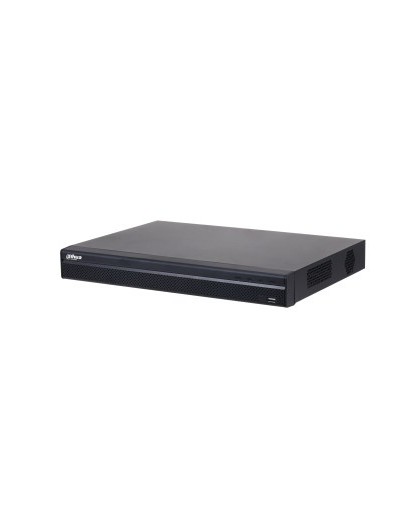

Dahua Technology NVR4204-P-4KS2/L network video recorder 1U Black
NVR4204-4KS2/L
New product
30 Items
Shipping 2025-11-18 days
109,00 € tax incl.
| Features | |
| Certification | CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Hard drive | |
| HDD interface | SATA III |
| Maximum storage capacity | 12 TB |
| Number of HDDs supported | 2 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Performance | |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Backup function | Yes |
| Bit rate | 20000 Kbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Multi-screen | Yes |
| Number of motion detection zones | 396 |
| Number of users | 128 user(s) |
| On Screen Display (OSD) | Yes |
| Operating system installed | Embedded LINUX |
| People counting | Yes |
| Playback controls | Yes |
| PTZ control | Yes |
| Recording modes | Continuous, Manual, Schedule, Stop |
| Recording time | 120 min |
| Snapshot | Yes |
| Throughput data rate | 200 Mbit/s |
| Two-way talk | Yes |
| Video formats supported | H.265 |
| Video formats supported | H.264 |
| Video input channels | 4 channels |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Ports & interfaces | |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10 |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 1000 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| SATA revision | 3.0 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Power | |
| Output current | 2 A |
| Output voltage | 48 V |
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Total Power over Ethernet (PoE) budget | 50 W |
| Processor | |
| Built-in processor | Yes |
| Weight & dimensions | |
| Depth | 282.4 mm |
| Height | 53 mm |
| Package depth | 433 mm |
| Package height | 366 mm |
| Package weight | 2.76 kg |
| Package width | 141 mm |
| Weight | 1.51 kg |
| Width | 375 mm |
