Home / ///TP-Link TL-SF1016DS - V3.0 - switch -
New TP-Link TL-SF1016DS - V3.0 - switch -

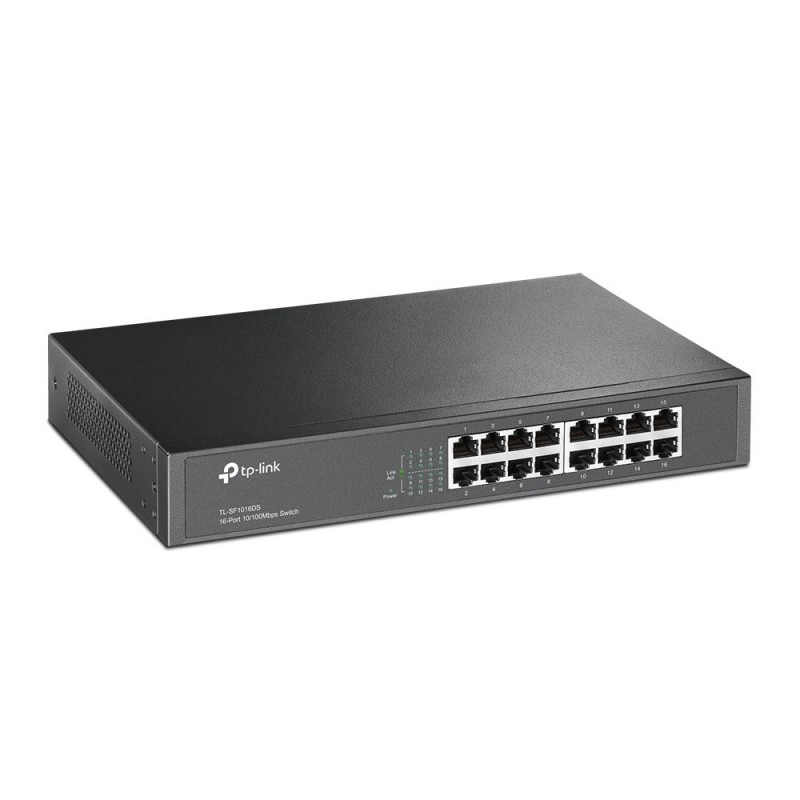

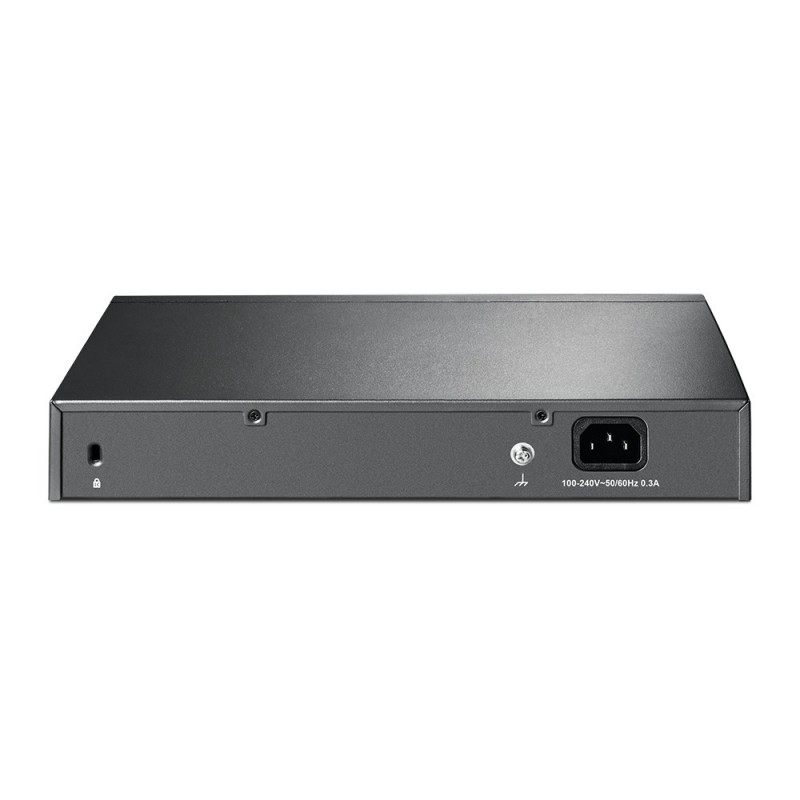

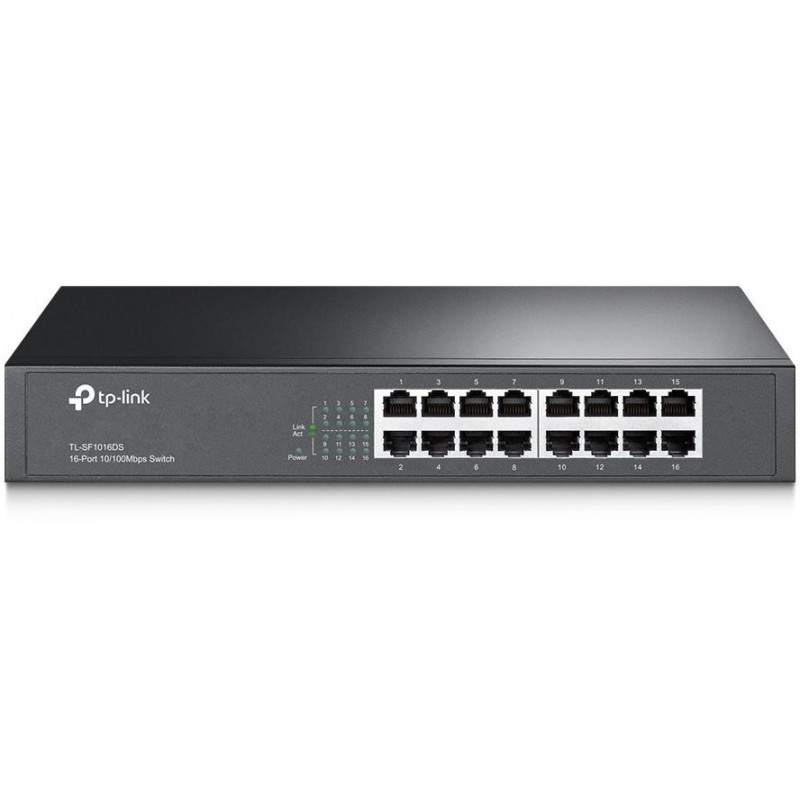

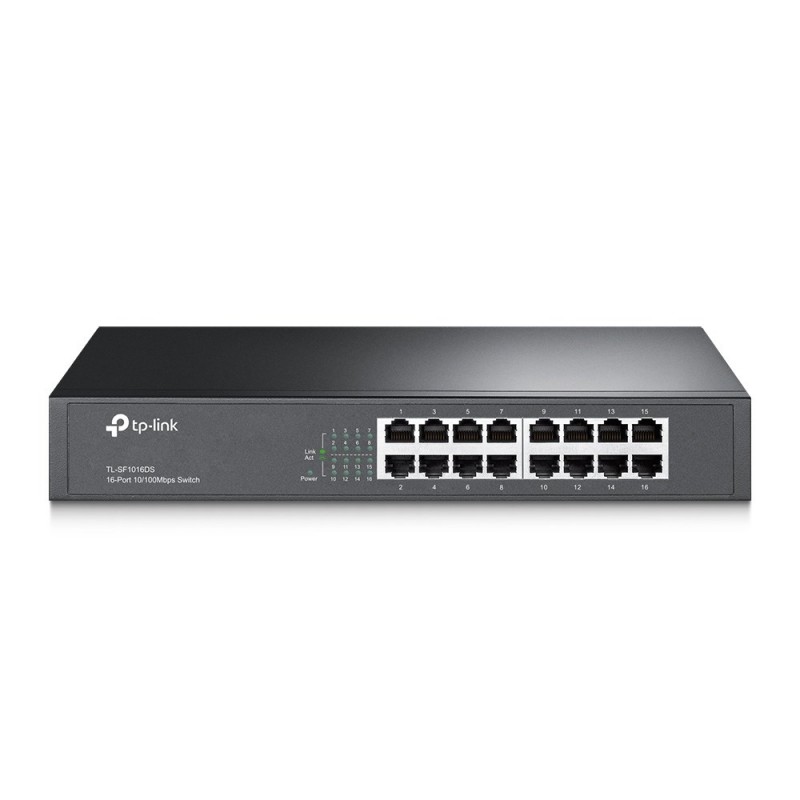

TP-Link TL-SF1016DS - V3.0 - switch -

TP-LINK

TL-SF1016DS

New product

8 Items

Shipping 2025-11-19 days

59,00 € tax incl.

Certificates
CertificationFCC, RoHS
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesFederal Communications Commission (FCC)
Data transmission
MAC address table8000 entries
Packet buffer memory2 MB
Store-and-forwardYes
Switching capacity3.2 Gbit/s
Throughput2.38 Mpps
Design
Form factor1U
Housing materialMetal
Number of fans0 fan(s)
Product colourBlack
Rack mountingYes
Redundant fans supportYes
StackableNo
Management features
Switch typeUnmanaged
Network
10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Cable types supportedCat5
Cable types supportedCat5e
Cable types supportedCat3
Cable types supportedCat4
Copper ethernet cabling technology10BASE-T
Copper ethernet cabling technology100BASE-T
Ethernet LAN data rates10,100 Mbit/s
Flow control supportYes
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.3i
Operational conditions
Heat dissipation7.03 BTU/h
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Packaging content
Cables includedAC
Rack mount kitYes
User guideYes
Packaging data
Package depth400 mm
Package height80 mm
Package weight1.95 kg
Package width250 mm
Rubber feetYes
Performance
FanlessYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity16
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)2.06 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Protocols
Supported network protocolsTCP/IP
Safety warning
WarningsThe product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
WarningsEnsure the unit is adequately ventilated during operation.
WarningsDo not open the case or try to repair it yourself.
Security
Static port securityYes
Sustainability
Sustainability complianceYes
Weight & dimensions
Depth180 mm
Height44 mm
Width294 mm
