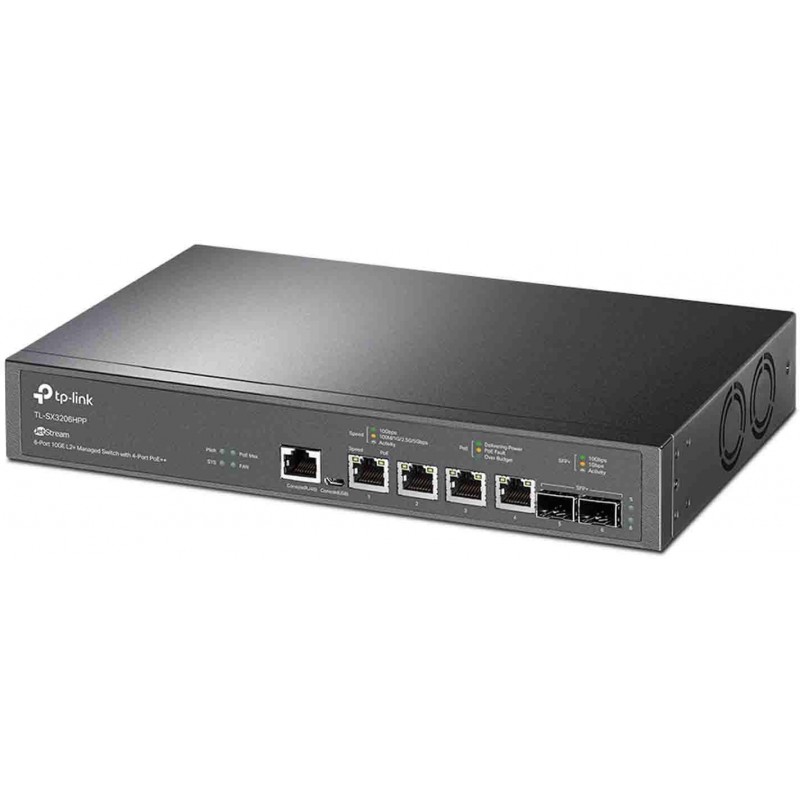

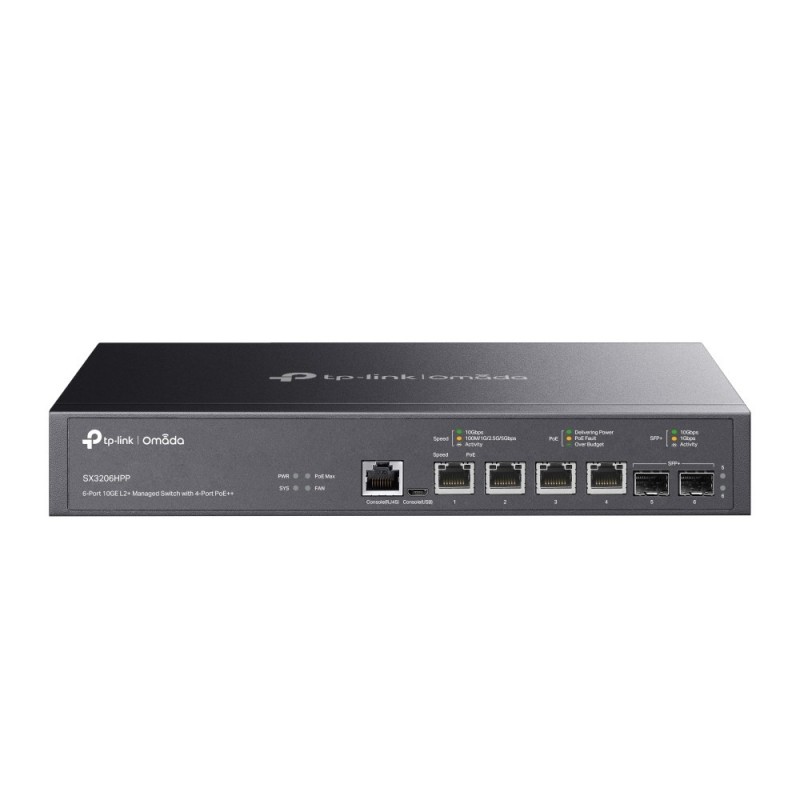

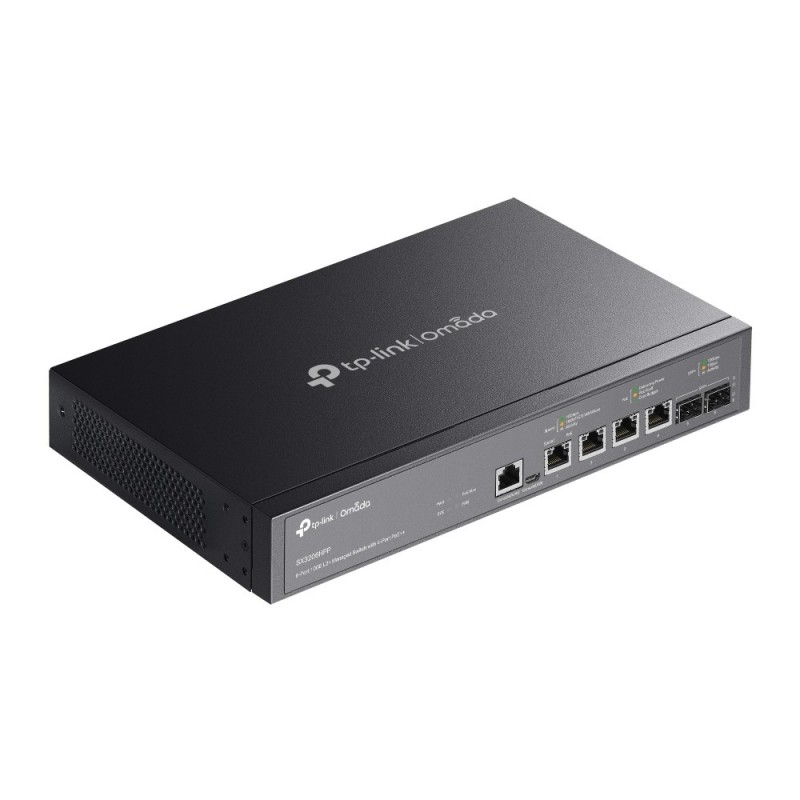

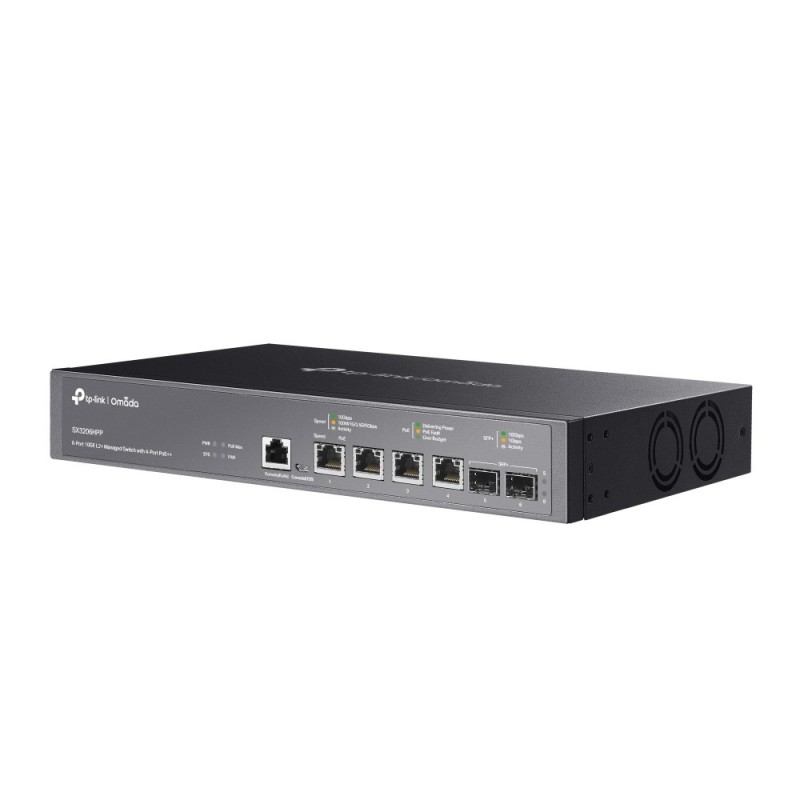

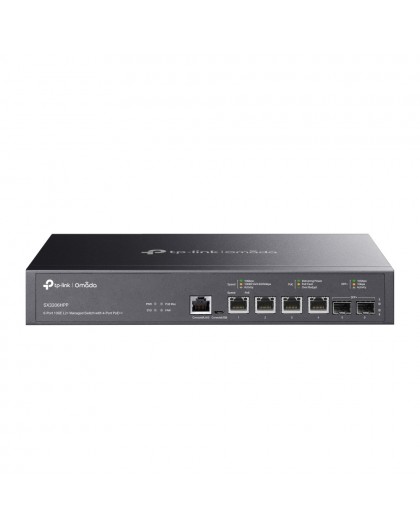

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
TL-SX3206HPP
New product
15 Items
Shipping 2025-11-24 days
669,00 € tax incl.
| Certificates | |
| Certification | CE, FCC, RoHS |
| Data transmission | |
| Forwarding rate | 89.28 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Number of static routes | 48 |
| Packet buffer memory | 16 MB |
| Static route | Yes |
| Switching capacity | 120 Gbit/s |
| Design | |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Management features | |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Multicast support | Yes |
| Network | |
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3bt |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Routing entries | 512 |
| Spanning tree protocol | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | Voice VLAN |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | VLAN mapping |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 835.67 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Performance | |
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/micro-USB |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 2 |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 244.9 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 200 W |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | Guest VLAN |
| Authentication type | AAA, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP server |
| DHCP features | DHCP snooping |
| DHCP features | DHCPv6 client |
| DHCP features | DHCP client |
| DHCP features | DHCP relay |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | SSL/TLS |
| Security algorithms | HTTPS |
| SSH/SSL support | Yes |
| Weight & dimensions | |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
