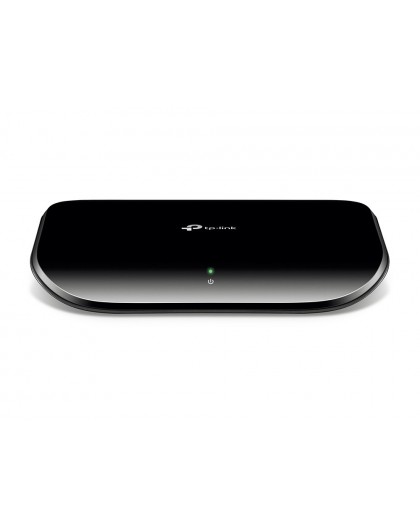

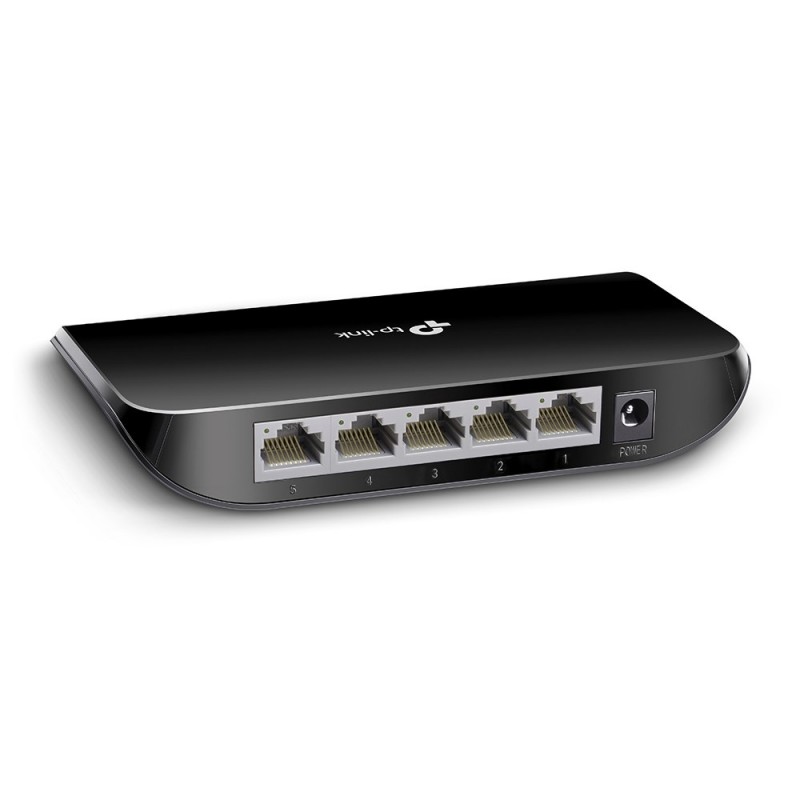

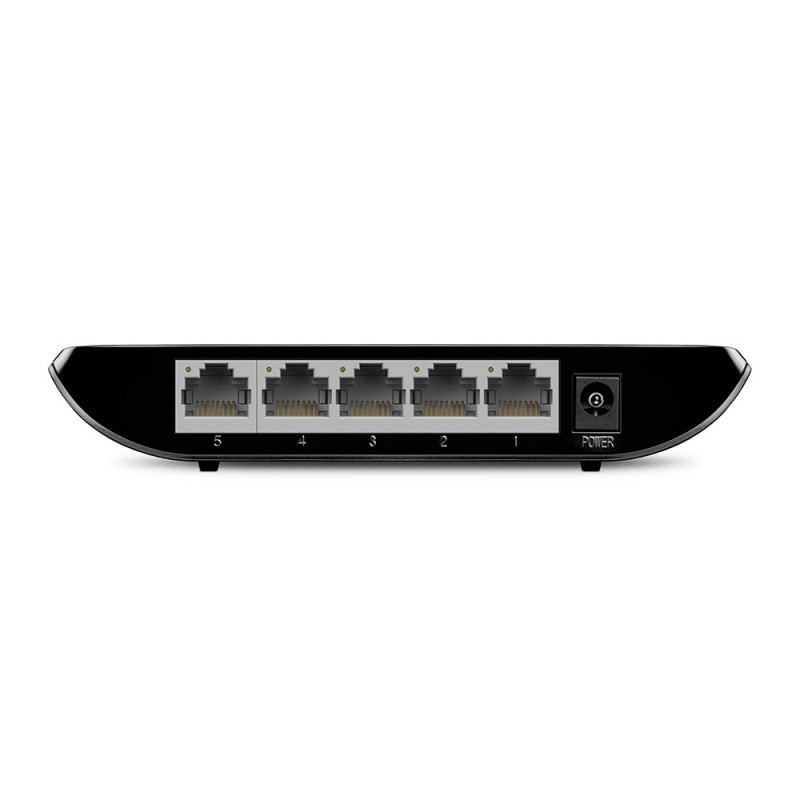

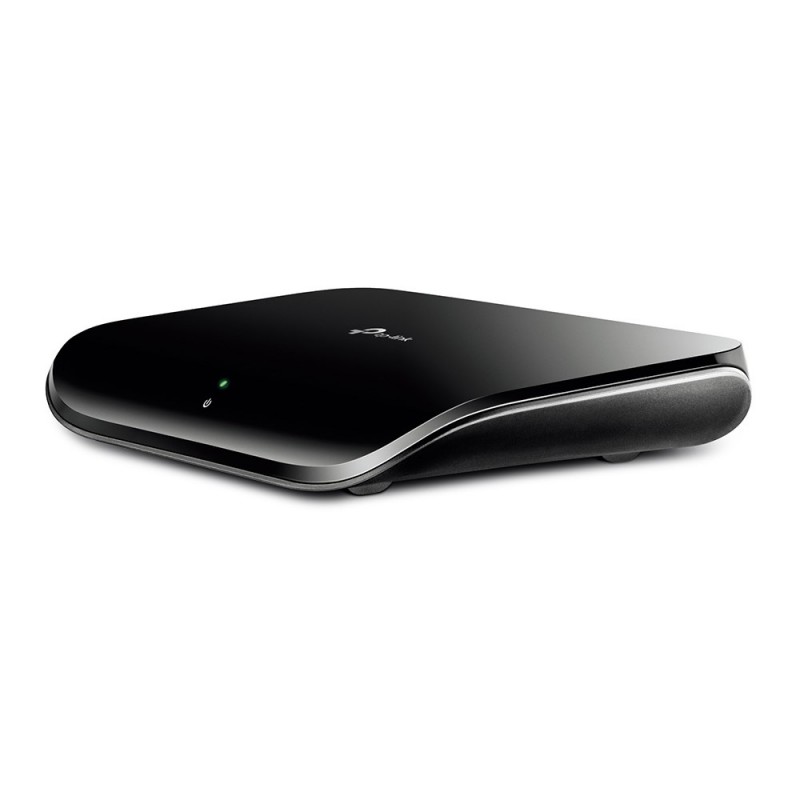

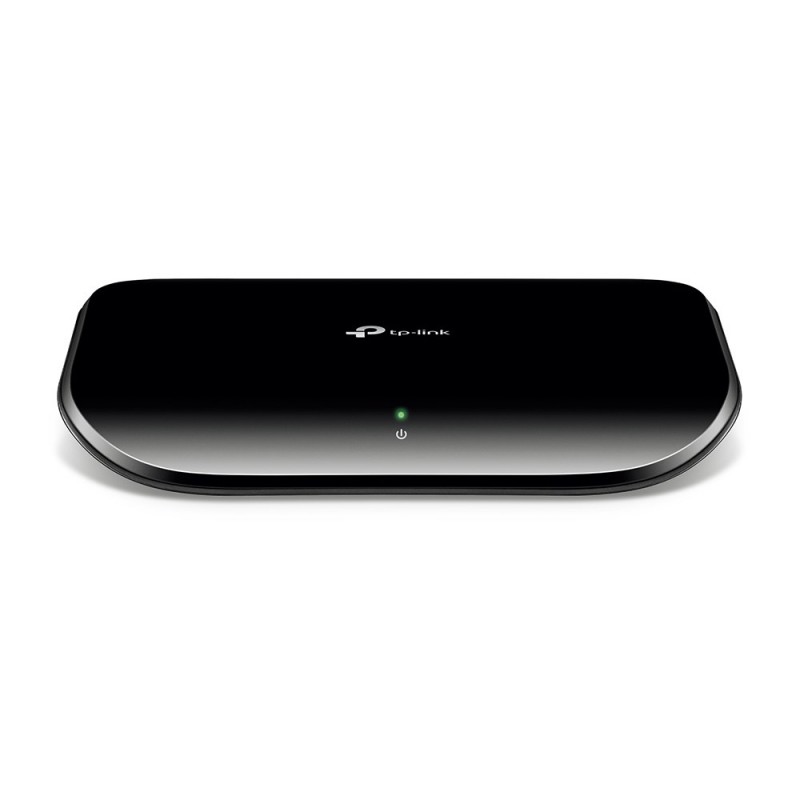

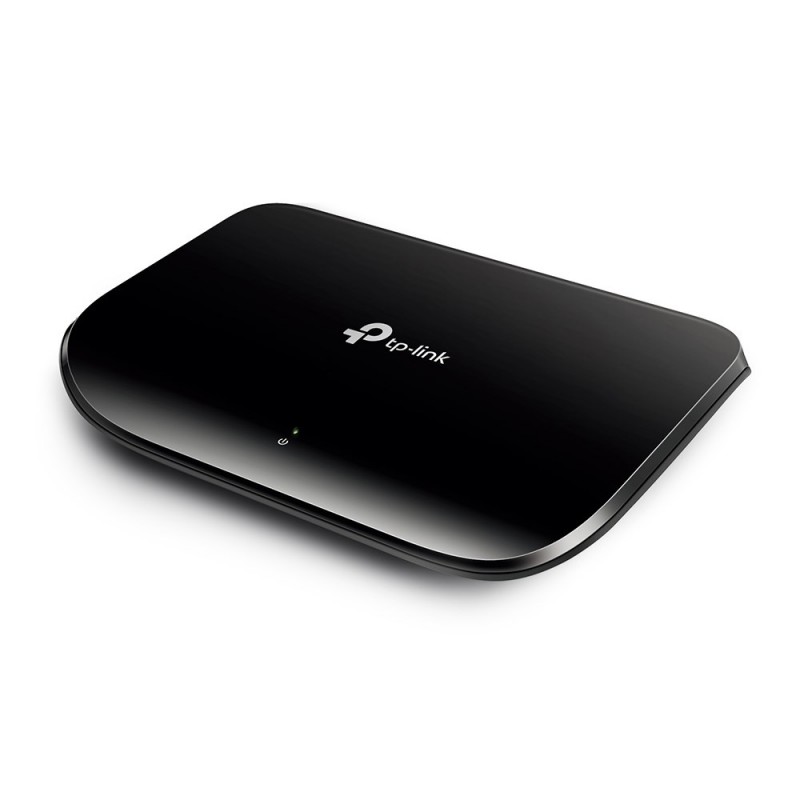

TP-Link 5-Port Gigabit Desktop Network Switch
TL-SG1005D
New product
186 Items
Shipping 2025-11-14 days
19,00 € tax incl.
| Data transmission | |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| Design | |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Product colour | Black |
| Rack mounting | No |
| Stackable | No |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| Operational conditions | |
| Heat dissipation | 8.22 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package depth | 145 mm |
| Package height | 85 mm |
| Package weight | 180 g |
| Package width | 108 mm |
| Performance | |
| Compatible operating systems | Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10, MacOS, NetWare, UNIX, Linux |
| Fanless | Yes |
| Maximum cable length | 100 m |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 2.47 W |
| Power source | DC |
| Power supply included | No |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Safety warning | |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warnings | Do not open the case or try to repair it yourself. |
| Weight & dimensions | |
| Depth | 108 mm |
| Height | 28 mm |
| Width | 165 mm |
