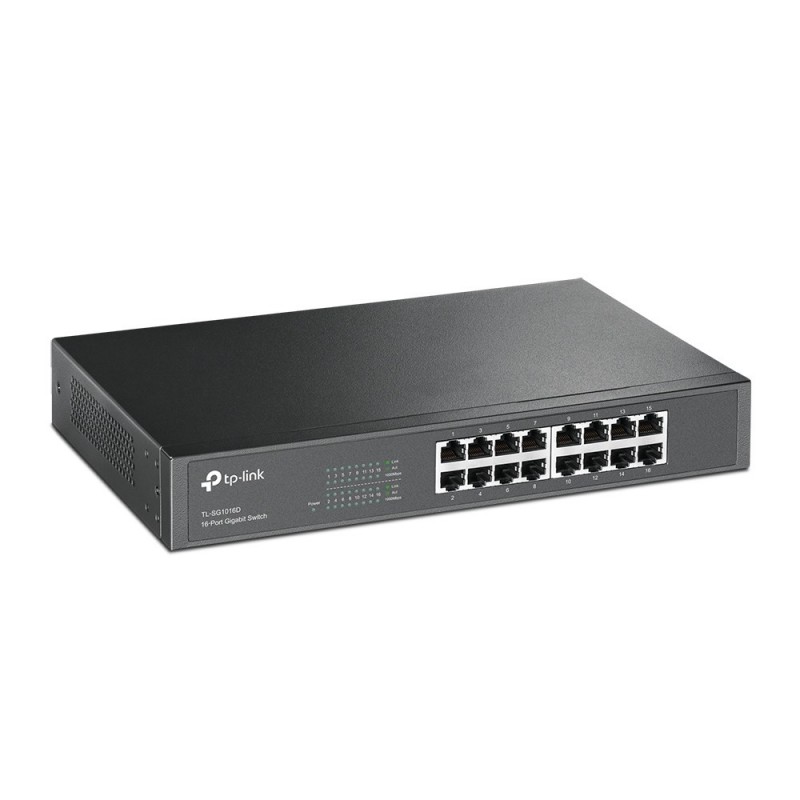

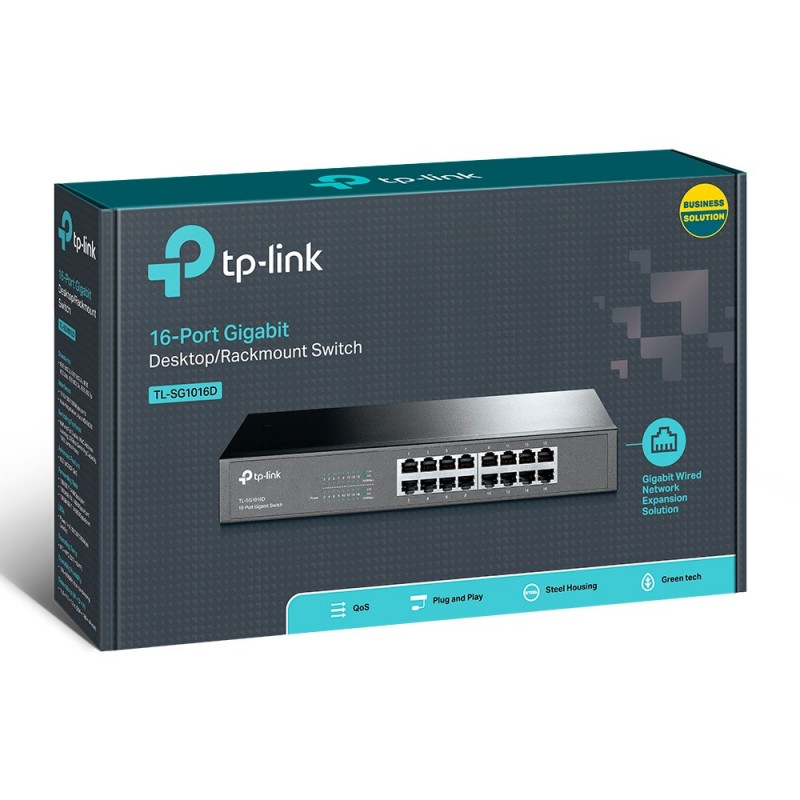

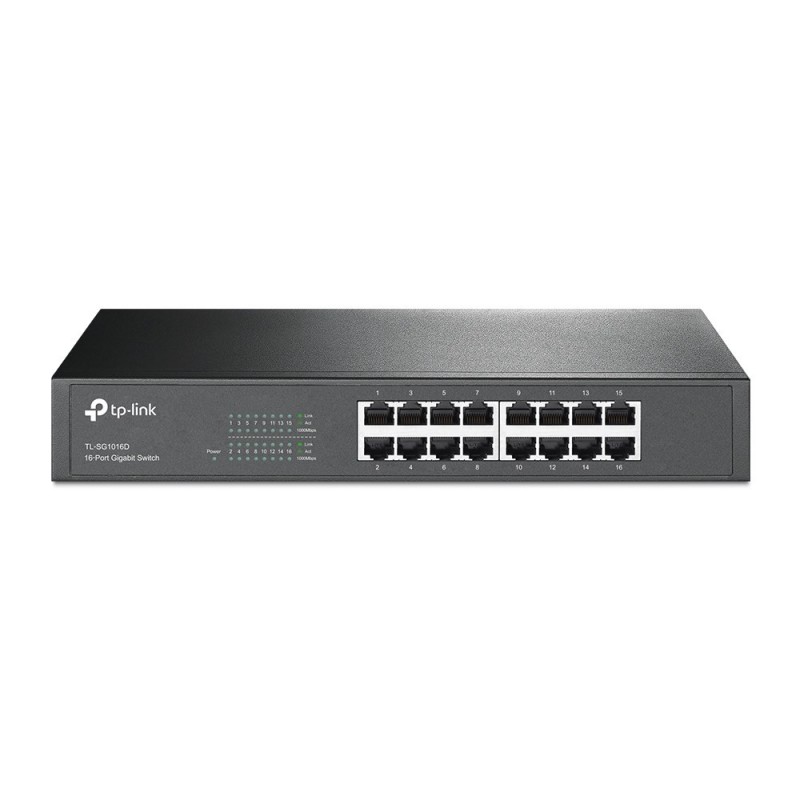

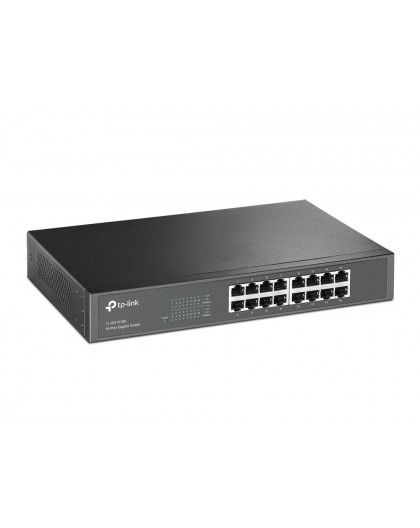

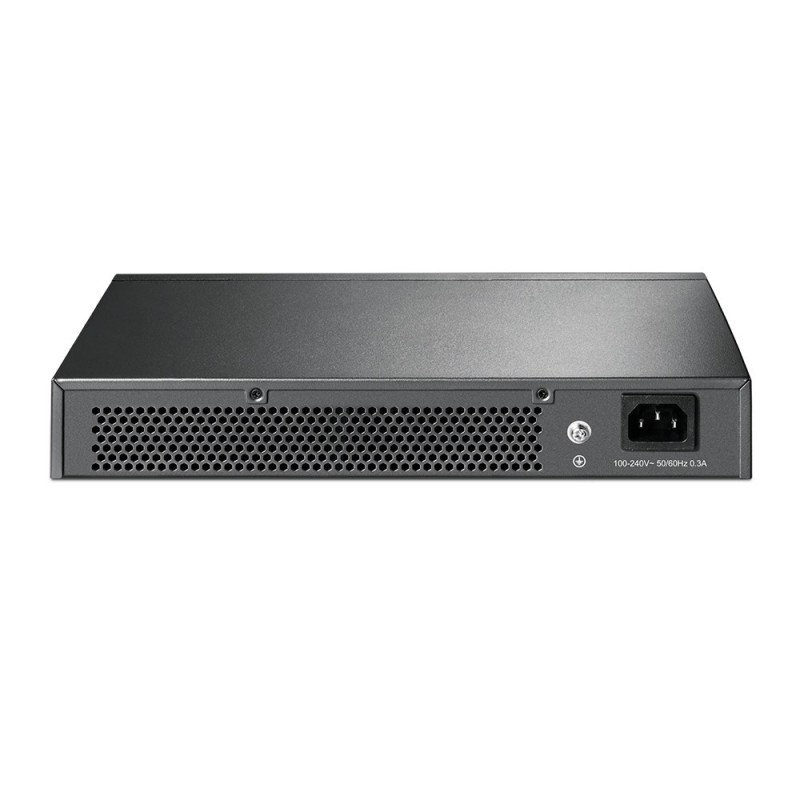

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch
TL-SG1016D
New product
26 Items
Shipping 2025-11-14 days
69,00 € tax incl.
| Data transmission | |
| Forwarding rate | 23.8 Mpps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Switching capacity | 32 Gbit/s |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5 |
| Cable types supported | Cat5e |
| Cable types supported | Cat4 |
| Cable types supported | Cat3 |
| Copper ethernet cabling technology | 1000BASE-TX |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 1000BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3u |
| Operational conditions | |
| Heat dissipation | 31.6 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging data | |
| Cables included | AC |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package type | Box |
| Package weight | 1.85 kg |
| Package width | 250 mm |
| Rack mount kit | Yes |
| User guide | Yes |
| Performance | |
| Compatible operating systems | Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux |
| Fanless | Yes |
| Maximum cable length | 100 m |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 9.26 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Sustainability | |
| Sustainability certificates | RoHS |
| Sustainability certificates | CE |
| Sustainability certificates | Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
