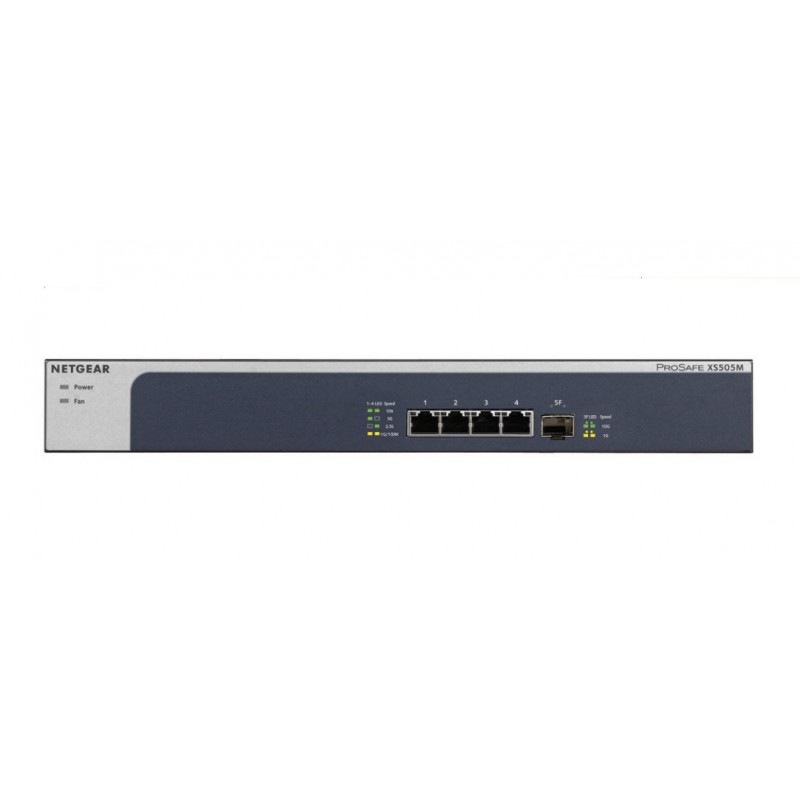

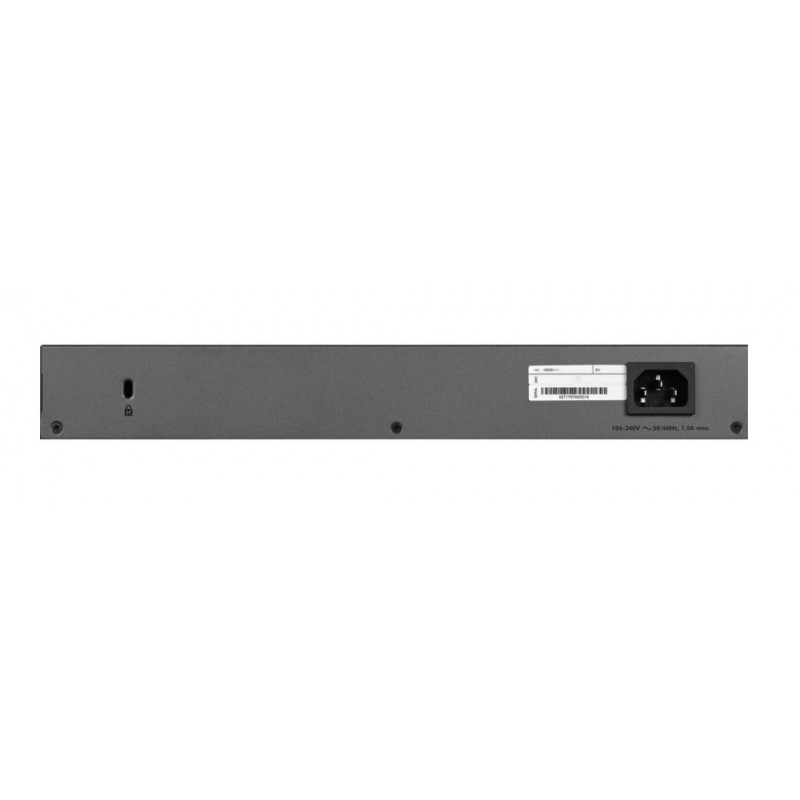

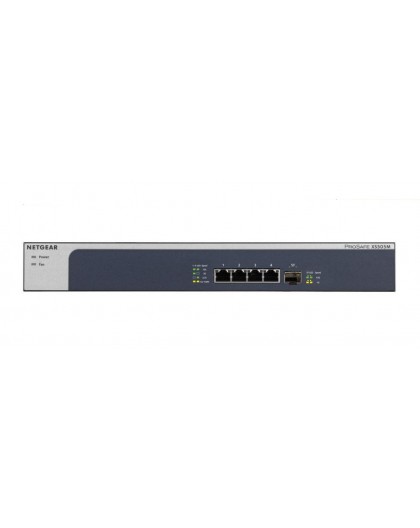

NETGEAR XS505M - switch - 5 porte - ik
XS505M-100EUS
New product
9 Items
Shipping 2025-11-24 days
419,00 € tax incl.
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 128 MB |
| Switching capacity | 100 Gbit/s |
| Design | |
| Certification | 47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438 |
| LED indicators | Yes |
| Product colour | Grey |
| Product colour | Silver |
| Rack mounting | Yes |
| Safety | CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Network | |
| 10G support | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3aq |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3an |
| Operational conditions | |
| Heat dissipation | 85.3 BTU/h |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Performance | |
| Mean time between failures (MTBF) | 1093237 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| SFP+ module slots quantity | 1 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (max) | 22.5 W |
| Power consumption (typical) | 12.25 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Depth | 169 mm |
| Height | 43.2 mm |
| Weight | 1.38 kg |
| Width | 328 mm |
