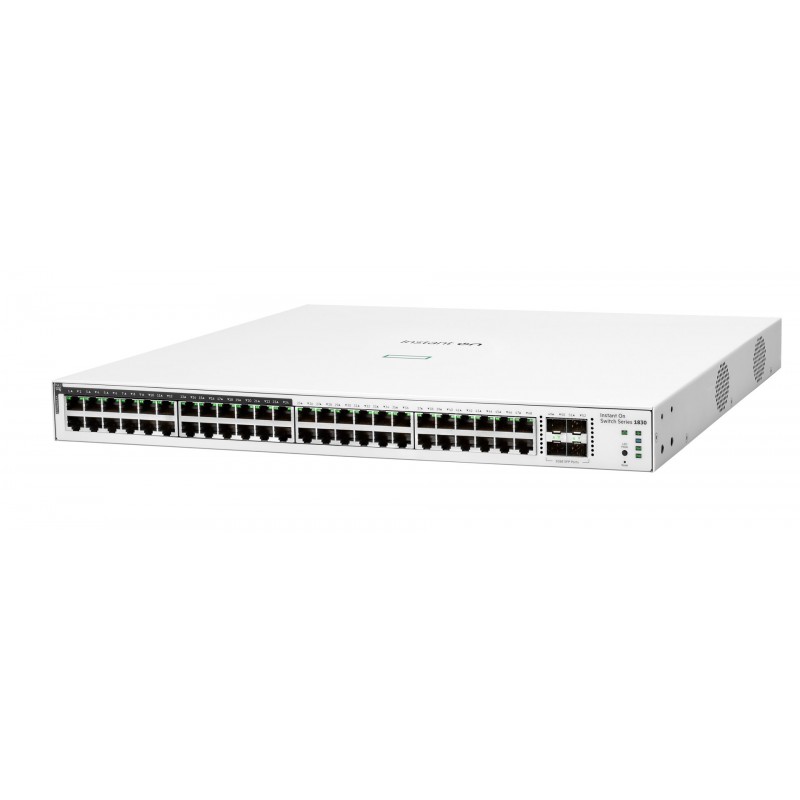

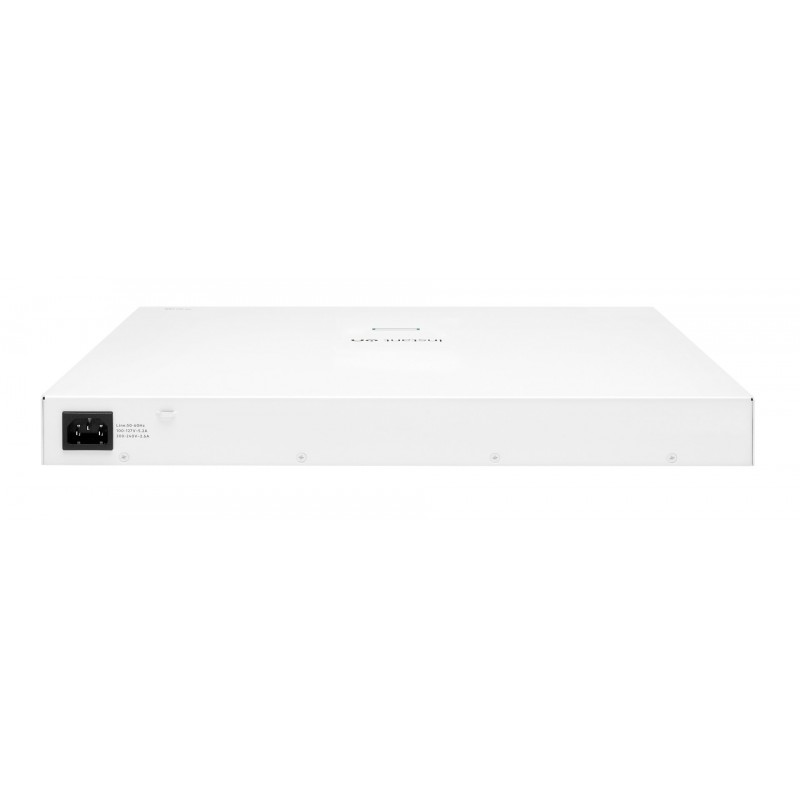

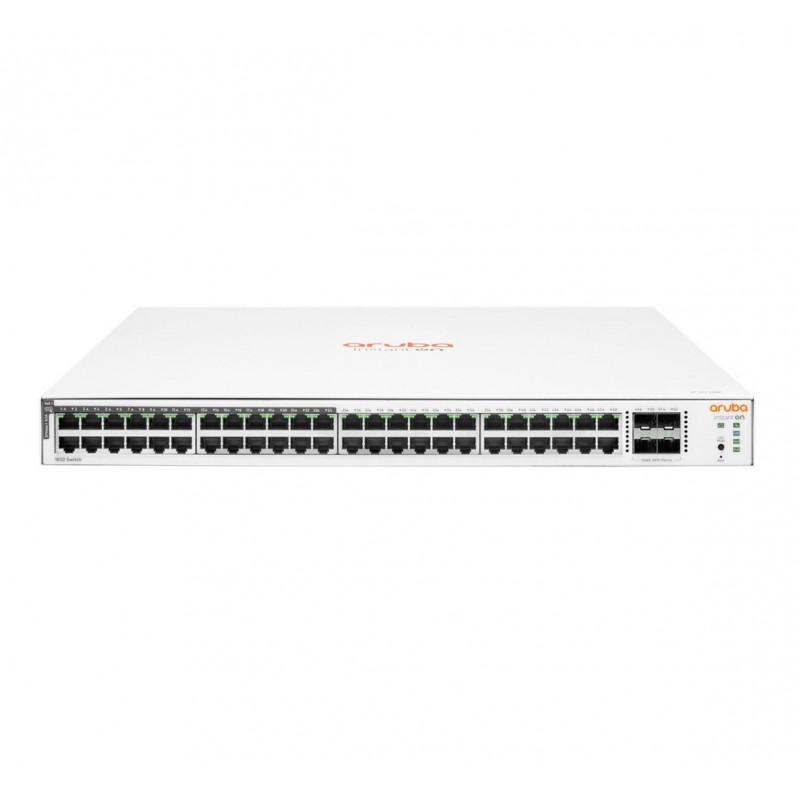

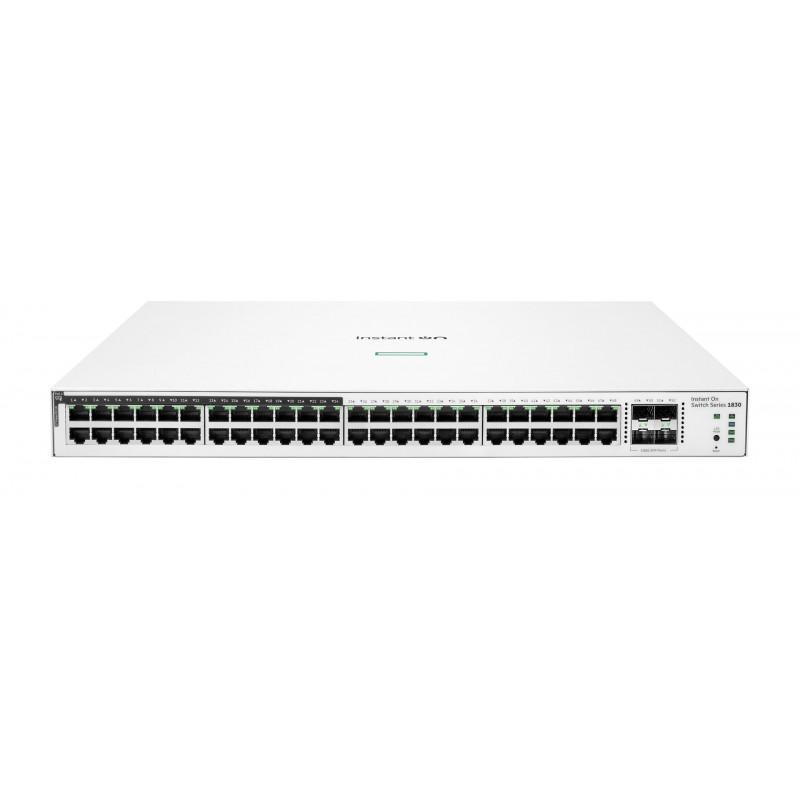

HPE Aruba Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830
JL815A
New product
18 Items
Shipping 2025-11-24 days
559,00 € tax incl.
| Data transmission | |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 2.8 µs |
| Latency (10-100 Mbps) | 5.2 µs |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Switching capacity | 104 Gbit/s |
| Throughput | 77.37 Mpps |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3ac |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3u |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | SDRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM Cortex-A9 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 462.5 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 370 W |
| Safety warning | |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
| Warnings | Do not open the case or try to repair it yourself. |
| Warnings | Follow the safety guidelines for electrical current. |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warnings | Avoid contact of the device with liquid. |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Weight & dimensions | |
| Depth | 443 mm |
| Height | 43.9 mm |
| Weight | 4.94 kg |
| Width | 351 mm |
