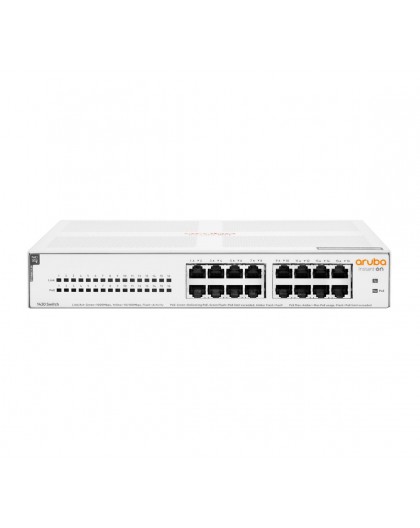

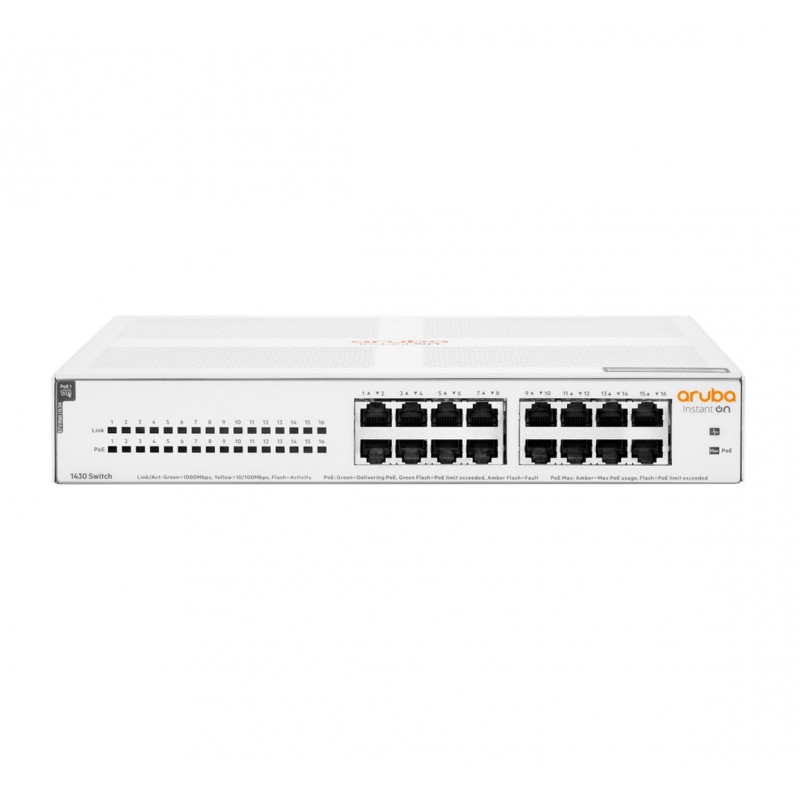

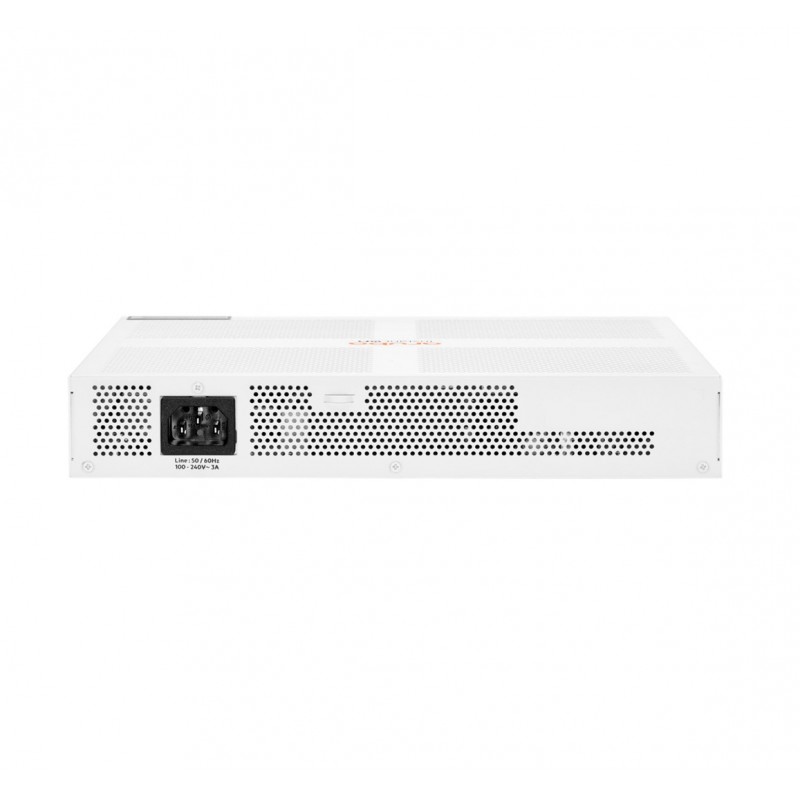

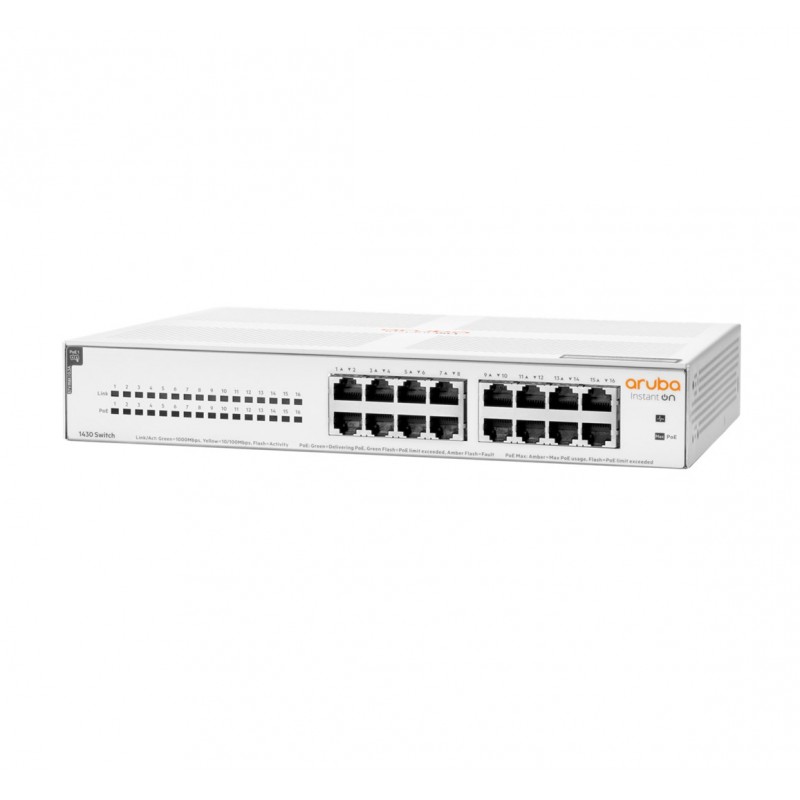

HPE Aruba Networking Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (
R8R48A
New product
7 Items
Shipping 2025-11-21 days
299,00 € tax incl.
| Data transmission | |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 1.8 µs |
| Latency (10-100 Mbps) | 2.7 µs |
| MAC address table | 8192 entries |
| Packet buffer memory | 2 MB |
| Switching capacity | 32 Gbit/s |
| Throughput | 23.8 Mpps |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3z |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (max) | 147 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 124 W |
| Weight & dimensions | |
| Depth | 275 mm |
| Height | 44 mm |
| Weight | 2.09 kg |
| Width | 260 mm |
