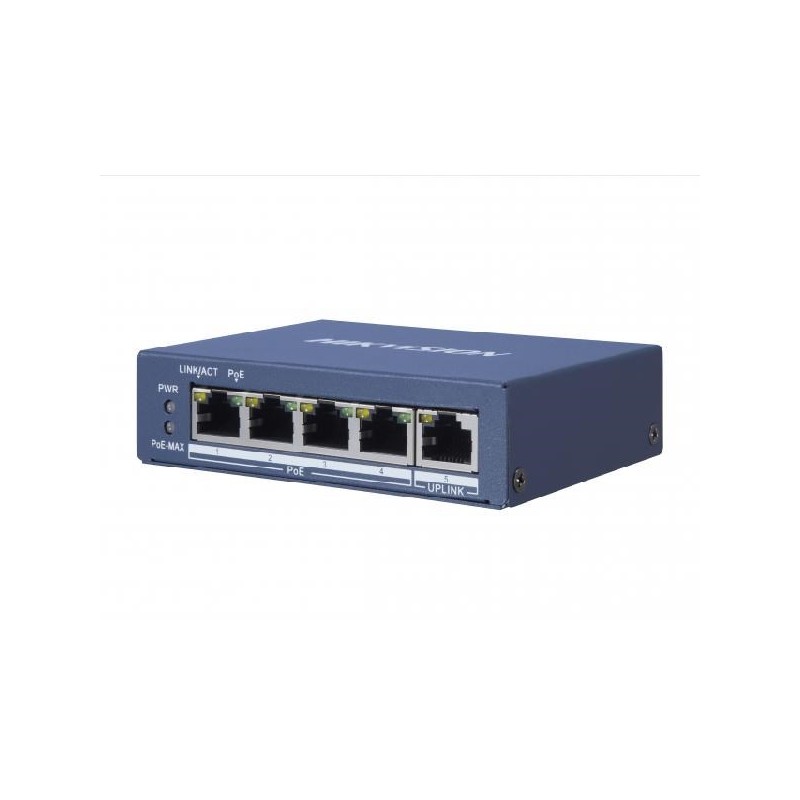

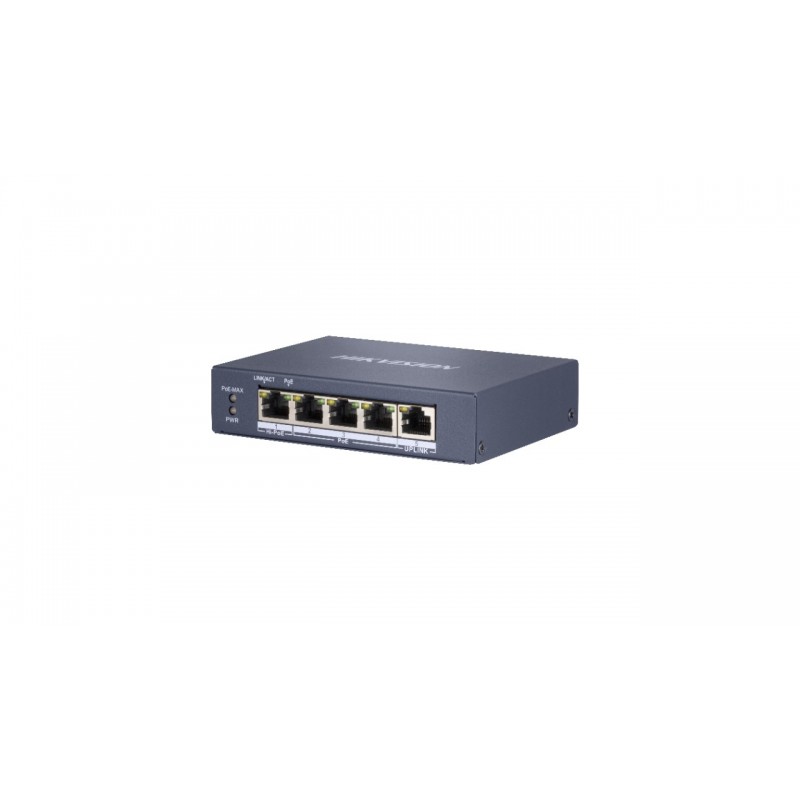

Hikvision DS-3E0505HP-E network links Non-managed Gigabit Ethernet (10/100/1000) PoE support Blue

Reference: DS-3E0505HP-E

Condition: New product

18 Item Items

Shipping 2025-11-19 days

59,00 € tax incl.

Data transmission
Forwarding rate	7.44 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Switching capacity	10 Gbit/s
Design
Certification	FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1
Housing material	Metal
Product colour	Blue
Rack mounting	No
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Network
10G support	No
Auto MDI/MDI-X	Yes
Full duplex	Yes
Networking standards	IEEE 802.3
Networking standards	IEEE 802.3af
Networking standards	IEEE 802.3ab
Networking standards	IEEE 802.3bt
Networking standards	IEEE 802.3x
Networking standards	IEEE 802.3u
Networking standards	IEEE 802.3at
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 85 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power
DC input voltage	48 V
Input current	1.35 A
Power consumption (max)	65 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	3
Total Power over Ethernet (PoE) budget	60 W
Weight & dimensions
Depth	88.1 mm
Height	27.6 mm
Weight	270 g
Width	121 mm
