New

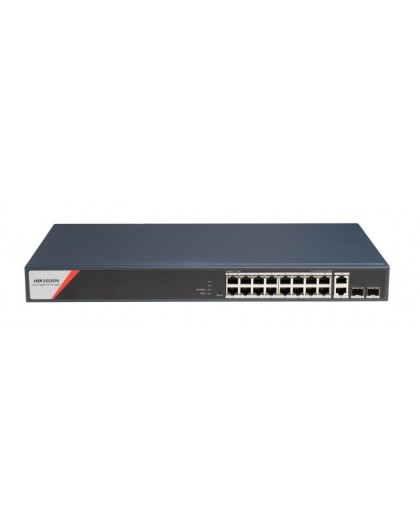

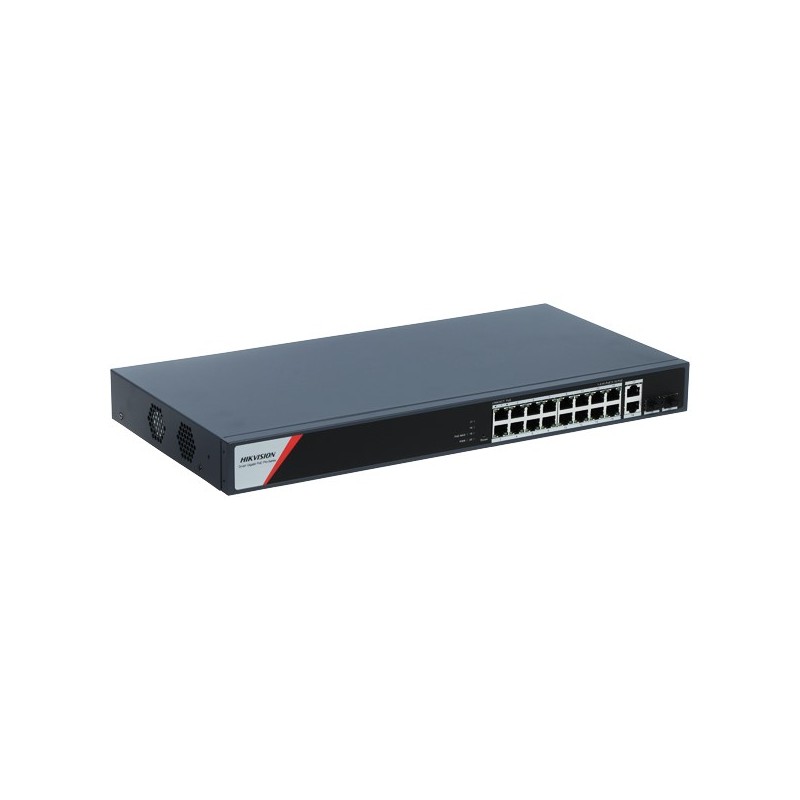

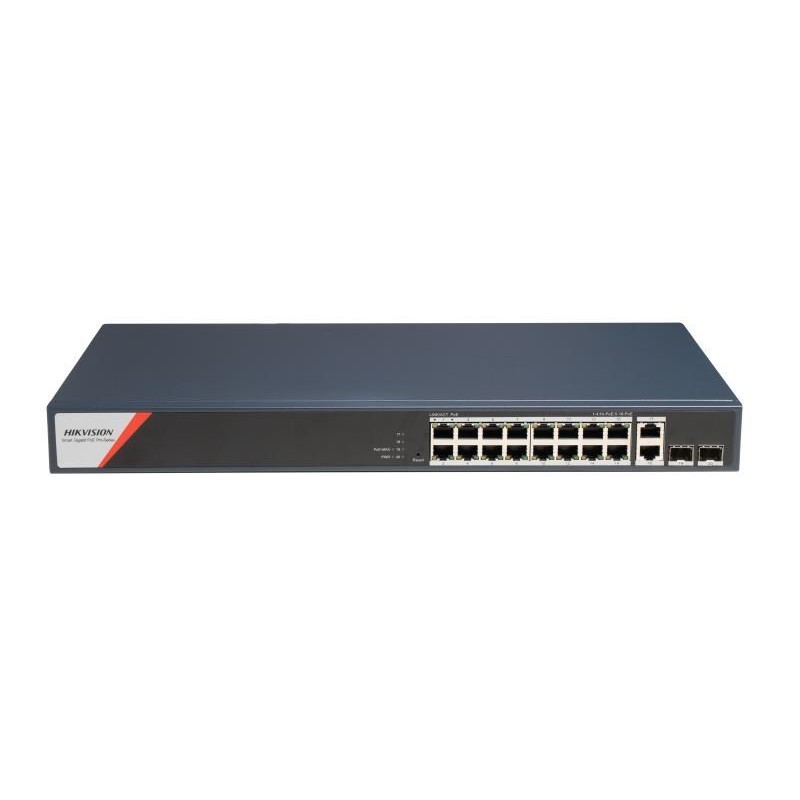

Hikvision 16 Port Gigabit Smart POE Switch
301803250
New product
4 Items
Shipping 2025-11-19 days
849,00 € tax incl.
| Certificates | |
| Compliance certificates | WEEE |
| Compliance certificates | RCM |
| Compliance certificates | CB |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | Low Voltage Directive (LVD) |
| Compliance certificates | Electromagnetic Compatibility (EMC) |
| Compliance certificates | REACH |
| Data transmission | |
| Forwarding rate | 29.76 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 56 Gbit/s |
| Design | |
| Housing material | Metal |
| Rack mounting | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Network | |
| 10G support | No |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3bt |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1w |
| Number of VLANs | 4094 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging data | |
| Package weight | 3.31 kg |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP |
| Fiber ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Power connector | AC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 250 W |
| Power source | AC/PoE |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Protocols | |
| IP Source Guard (IPSG) | Yes |
| Security | |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 128 |
| DHCP features | DHCP client |
| DHCP features | DHCP snooping |
| Loop protection | Yes |
| Queue scheduling algorithms | SP |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Weight & dimensions | |
| Depth | 220.8 mm |
| Height | 44 mm |
| Weight | 2.73 kg |
| Width | 440 mm |
