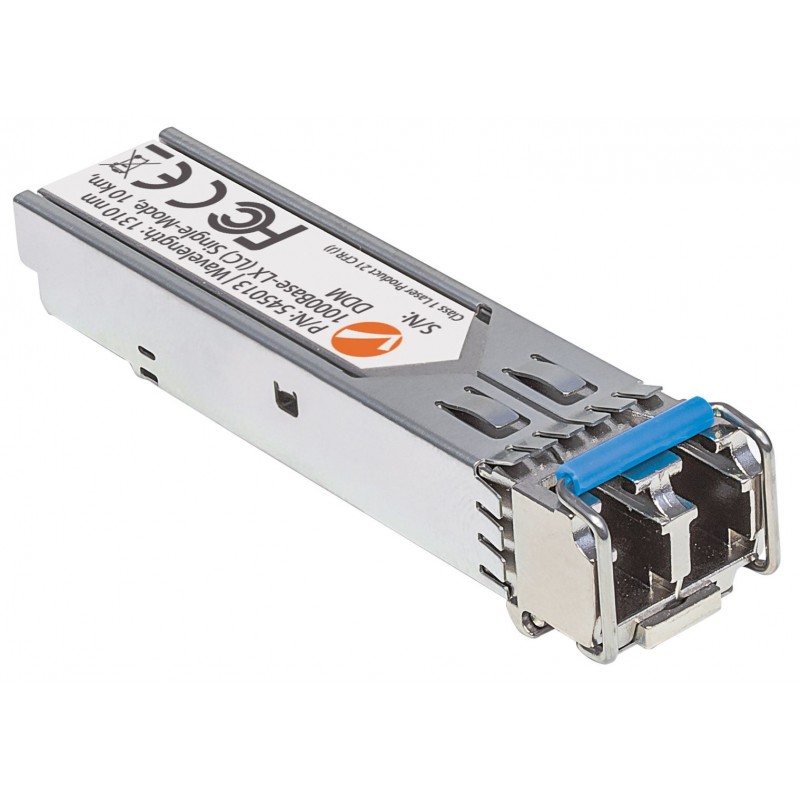

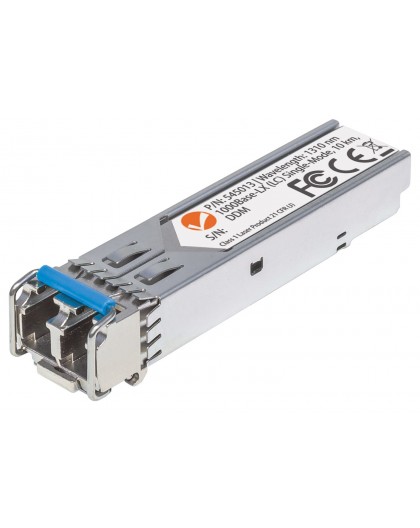

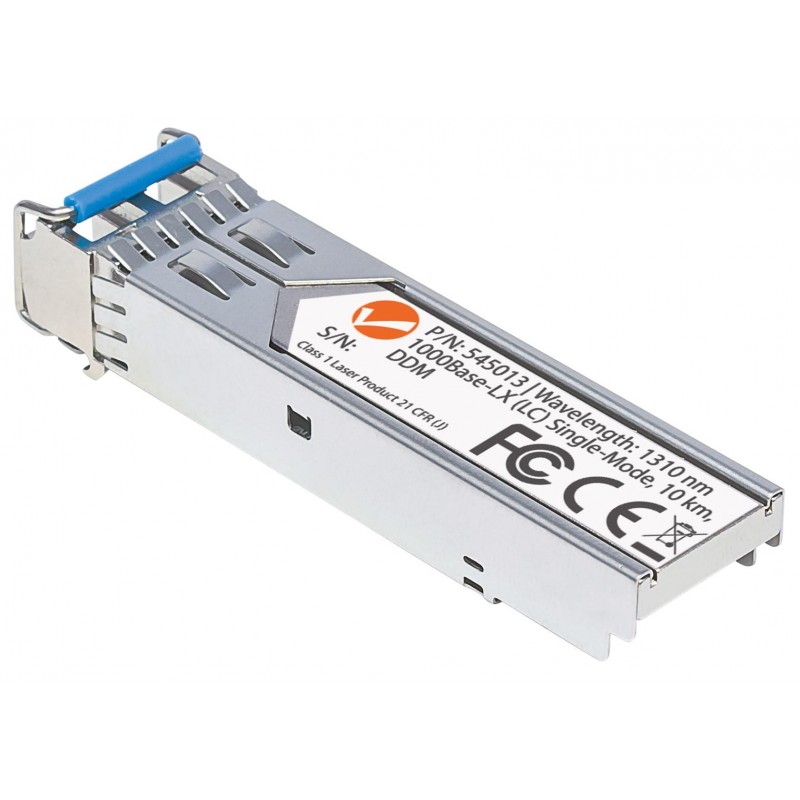

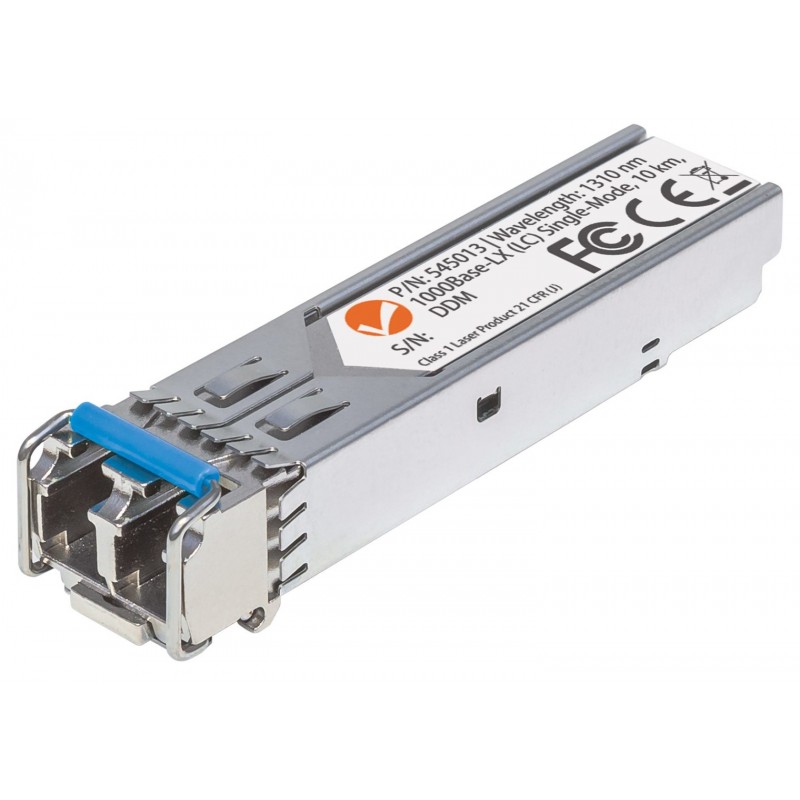

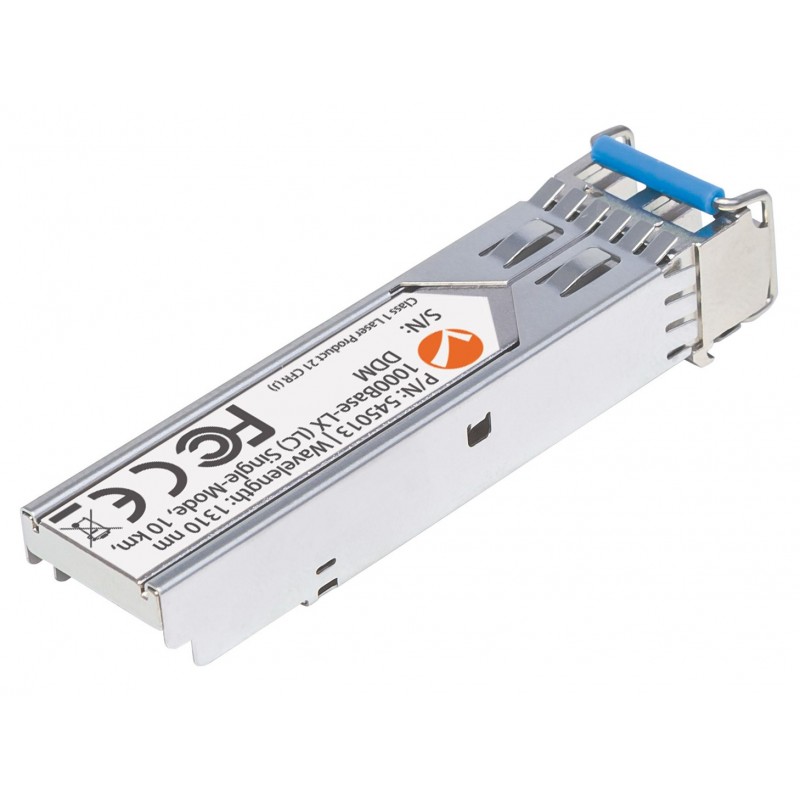

Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, MSA Compliant, Equivalent to
545013
New product
11 Items
Shipping 0001-01-05 days
19,00 € tax incl.
| Features | |
| Certification | FCC Class A, CE Mark |
| Hot-Plug support | Yes |
| Product colour | Aluminium |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Performance | |
| Duplex system | Full |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Fiber optic connector | LC |
| Harmonized System (HS) code | 85369010 |
| Interface type | SFP |
| Link budget | 14 dB |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.3z |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Tx power (max) | -3 dBmW |
| Tx power (min) | -8 dBmW |
| Wavelength | 1310 nm |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 18 g |
| Width | 14 mm |
