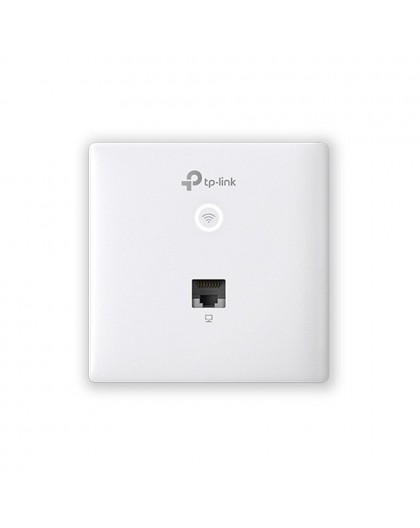

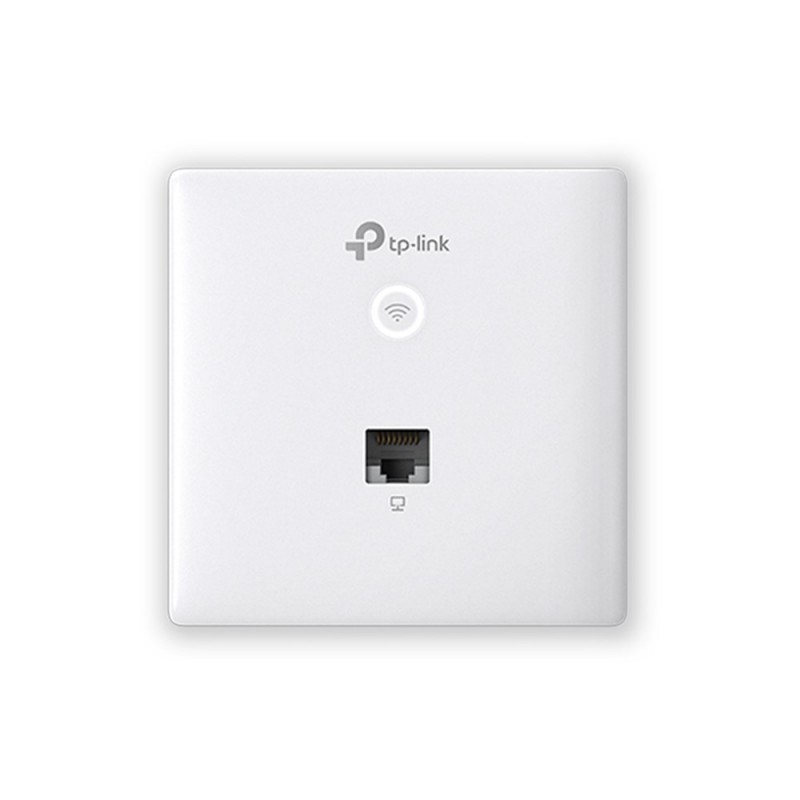

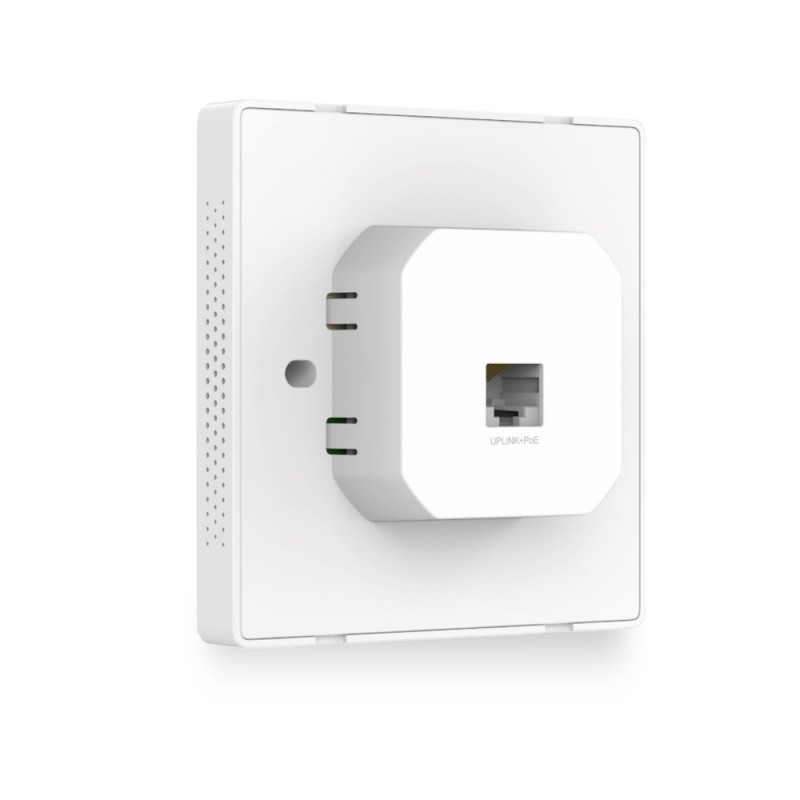

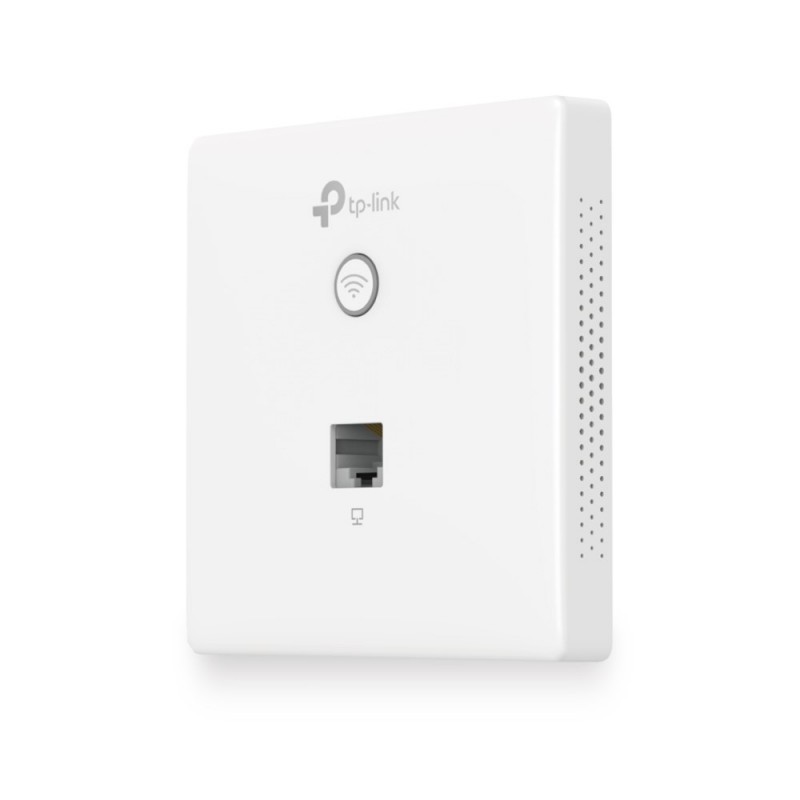

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
EAP230-Wall
New product
4 Items
Shipping 2025-11-14 days
79,00 € tax incl.
| Antenna | |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 3.6 dBi |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Certificates | |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Design | |
| LED indicators | Operation |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000 |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 10 |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11b |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.11ac |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
| Virtual LAN features | VLAN mapping |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Syslog | Yes |
| Web-based management | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 2 pc(s) |
| Quick start guide | Yes |
| Packaging data | |
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 210 g |
| Package width | 118 mm |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Safety warning | |
| Warnings | Do not expose to prolonged moisture. |
| Warnings | Avoid direct contact with water. |
| Warnings | Electronic products should be recycled at specialist electronic waste collection facilities. |
| Security | |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Security algorithms | WPA |
| Security algorithms | WPA-PSK |
| Security algorithms | WPA2-PSK |
| Security algorithms | 64-bit WEP |
| Security algorithms | WPA2-Enterprise |
| Security algorithms | 128-bit WEP |
| Security algorithms | SNMP |
| Security algorithms | 152-bit WEP |
| Security algorithms | SNMPv2 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Depth | 86.8 mm |
| Height | 30.2 mm |
| Width | 86.8 mm |
