New Motherboard - ASRock X870E Taichi

Motherboard - ASRock X870E Taichi

Asrock

X870ETaichi

New product

5 Items

Shipping 2025-11-14 days

479,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
PCI Express x16 (Gen 5.x) slots2
Features
Audio chipRealtek ALC4082
Audio output channels5.1 channels
Motherboard chipsetAMD X870E
Motherboard chipset familyAMD
Motherboard form factorExtended ATX
Operating system architecture64-bit
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11 x64
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Number of SATA III connectors4
RGB LED pin headerYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8200+ MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8126
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standards802.11b
Wi-Fi standardsWi-Fi 4 (802.11n)
Wi-Fi standards802.11g
Wi-Fi standardsWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a
Wi-Fi standardsWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 7 (802.11be)
Processor
Compatible processor seriesAMD Ryzen™ 7000 Series
Compatible processor seriesAMD Ryzen™ 8000 Series
Compatible processor seriesAMD Ryzen™ 9000 Series
Maximum number of SMP processors1
Processor manufacturerAMD
Processor socketSocket AM5

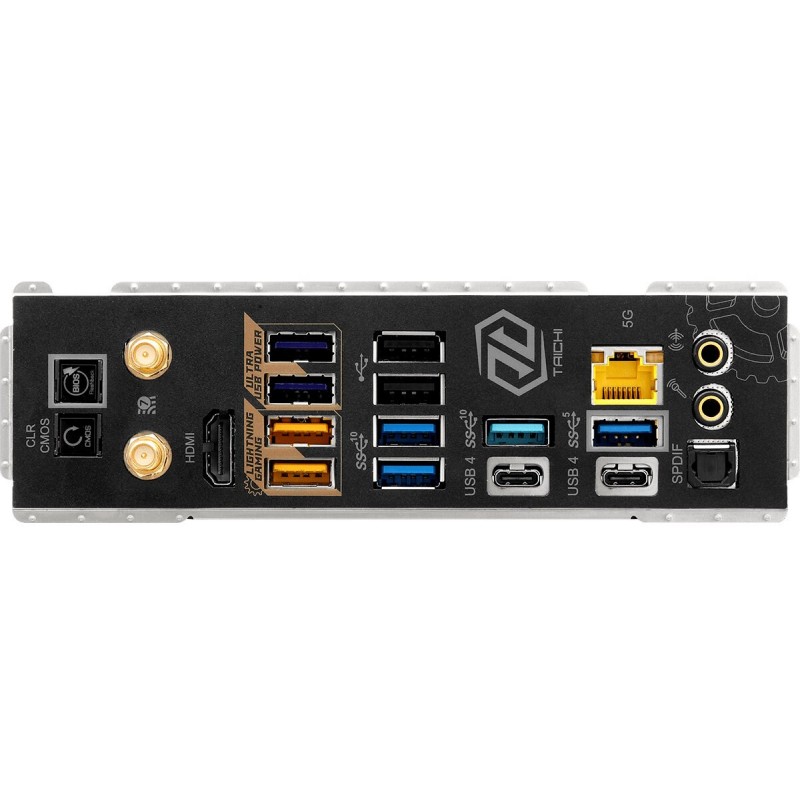

Rear panel I/O ports
Clear CMOS buttonYes
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Line-outYes
Microphone inYes
Number of USB 2.0 Type-A ports2
Number of Wi-Fi antenna ports2
S/PDIF out portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2x2 Type-C ports quantity2
Storage controllers
Supported storage drive interfacesBlazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Weight & dimensions
Depth267 mm
Width305 mm
