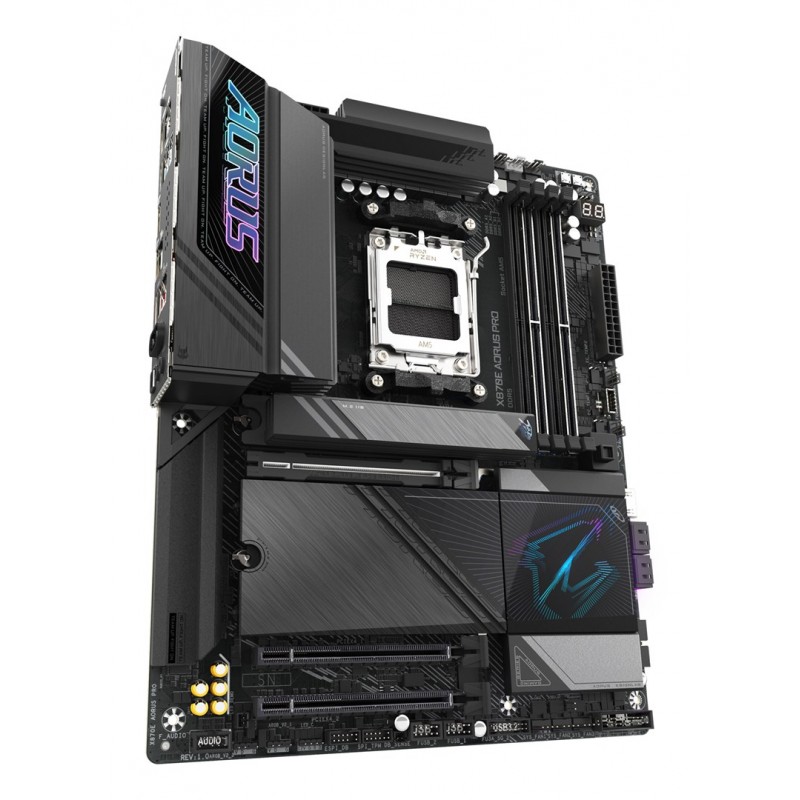

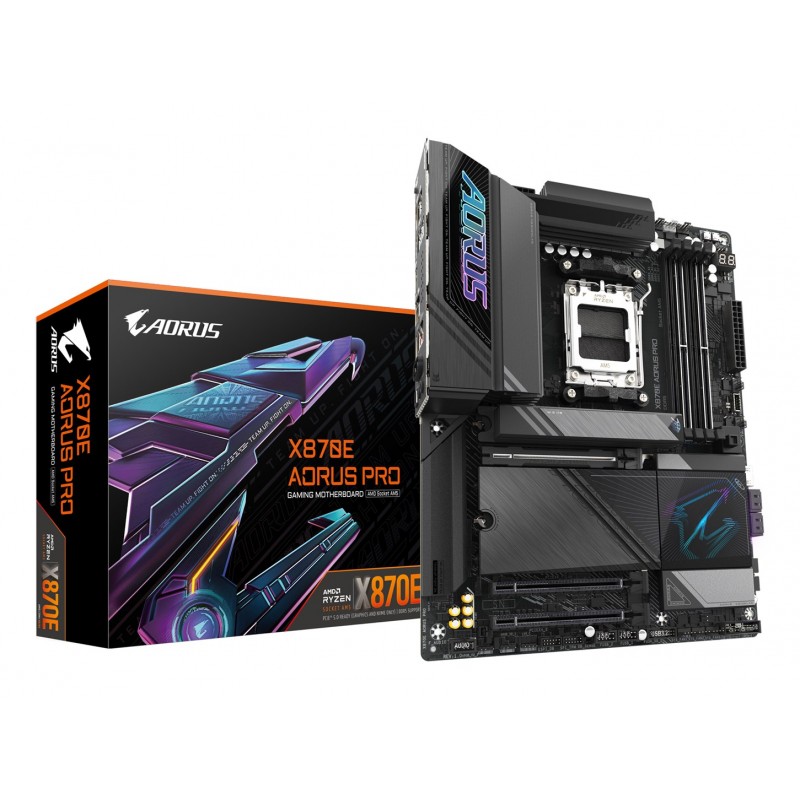

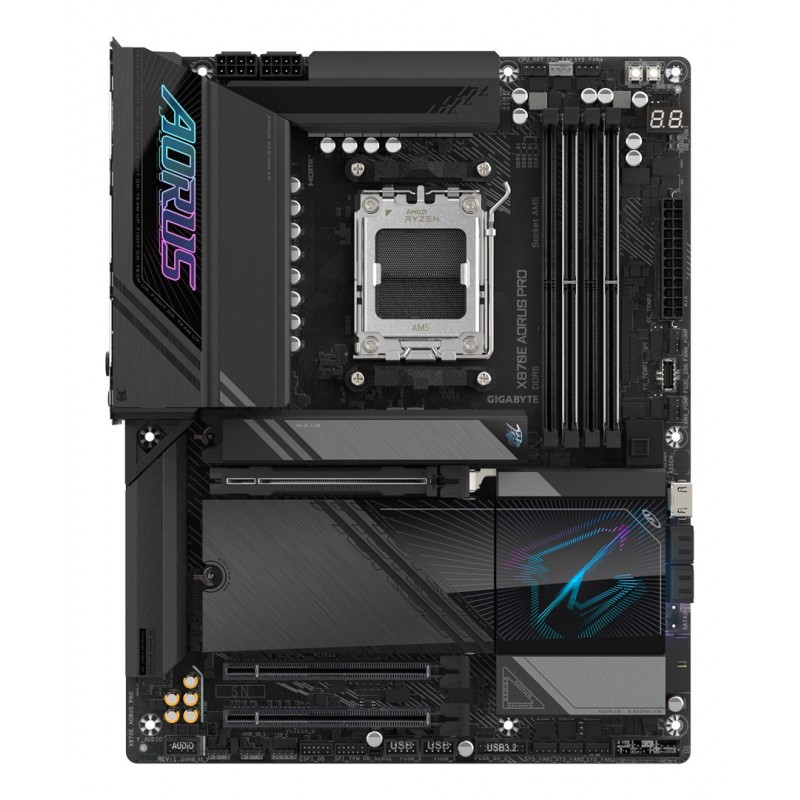

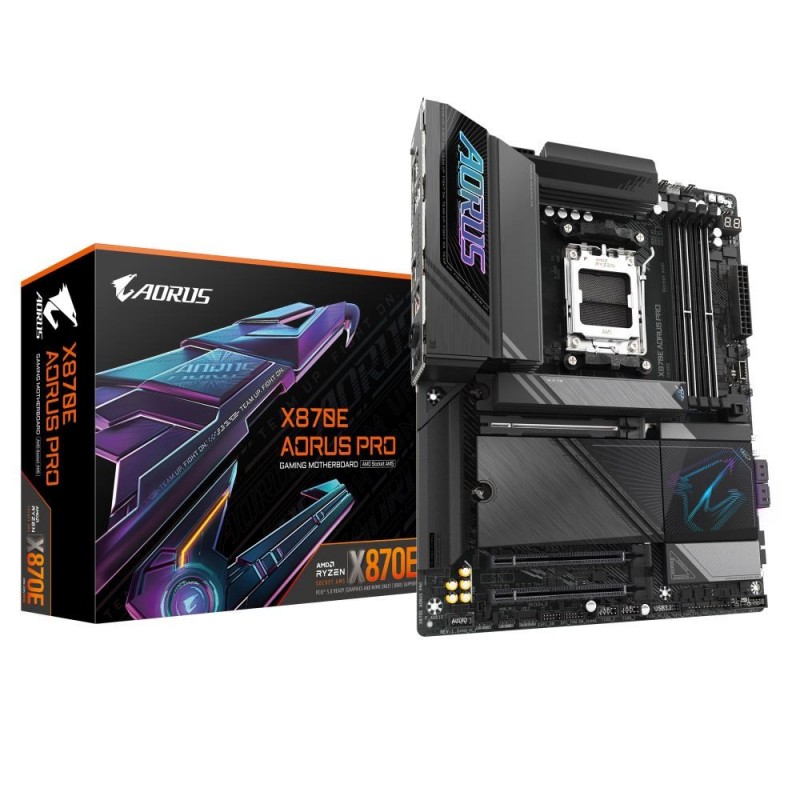

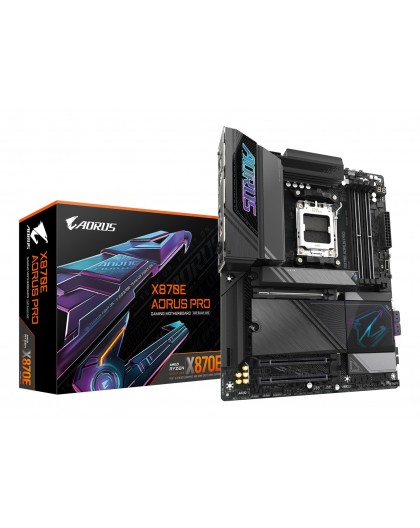

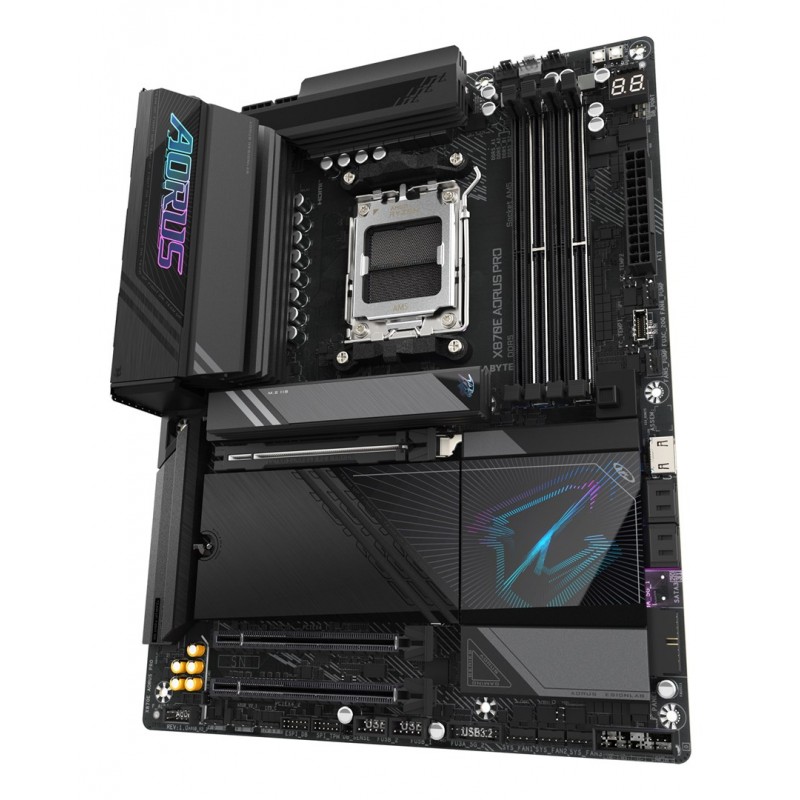

Home / ///GIGABYTE X870E AORUS PRO Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe
New GIGABYTE X870E AORUS PRO Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe

GIGABYTE X870E AORUS PRO Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe

Gigabyte

X870EAORUSPRO

New product

26 Items

Shipping 2025-11-24 days

399,00 € tax incl.

Battery
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
BIOS
ACPI version5.0
BIOS memory size256 Mbit
BIOS typeUEFI AMI
Clear CMOS buttonYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Expansion slots
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size25110
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation5.0
3rd M.2 largest key size22110
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
Number of M.2 (M) slots4
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 slots2
Features
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Component forPC
Motherboard chipsetAMD X870E
Motherboard chipset familyAMD
Motherboard form factorATX
PC health monitoringTemperature
PC health monitoringVoltage
PC health monitoringFan
Product colourBlack
Windows operating systems supportedWindows 11 x64
Graphics
DirectX version12.0
On-board graphics cardNo
Parallel processing technology supportNot supported
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors6
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers4
Number of SATA III connectors4
Number of water pump connectors2
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 connectors1
Logistics data
Country of originChina
Products per shipping (inner) case1 pc(s)
Memory
ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Maximum internal memory per slot64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8200 MHz
Supported memory clock speeds6600
Supported memory clock speeds6800
Supported memory clock speeds8000 MHz
Supported memory clock speeds4400
Supported memory clock speeds6666
Supported memory clock speeds7000
Supported memory clock speeds8200
Supported memory clock speeds5600
Supported memory clock speeds7200 MHz
Supported memory clock speeds6000
Supported memory clock speeds7800
Supported memory clock speeds6400
Supported memory clock speeds4800
Supported memory module capacities2GB
Supported memory module capacities4GB
Supported memory module capacities12GB
Supported memory module capacities1GB
Supported memory module capacities32GB
Supported memory module capacities8GB
Supported memory module capacities24GB
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelQualcomm QCNCM865
Other features
Weight2.4 kg
Packaging content
Antenna includedYes
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes
Packaging data
Package depth294 mm
Package height80 mm
Package weight2.74 kg
Package width345 mm
Processor
Compatible processor seriesAMD Ryzen 9000 Series
Compatible processor seriesAMD Ryzen 7000 Series
Compatible processor seriesAMD Ryzen 8000 Series
Maximum internal memory supported by processor256 GB
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Rear panel I/O ports
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 2x2 ports quantity2
WiFi-AP antenna jack2
Safety warning
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
WarningsAvoid contact with liquids to prevent electronic damage.
WarningsDispose of in accordance with local regulations for electronic waste.
Storage controllers
Number of HDDs supported4
Number of storage drives supported8
RAID levels1
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Technical details
Warranty period3 year(s)
Weight & dimensions
Depth244 mm
Height35 mm
Width305 mm
