New ASUS ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard

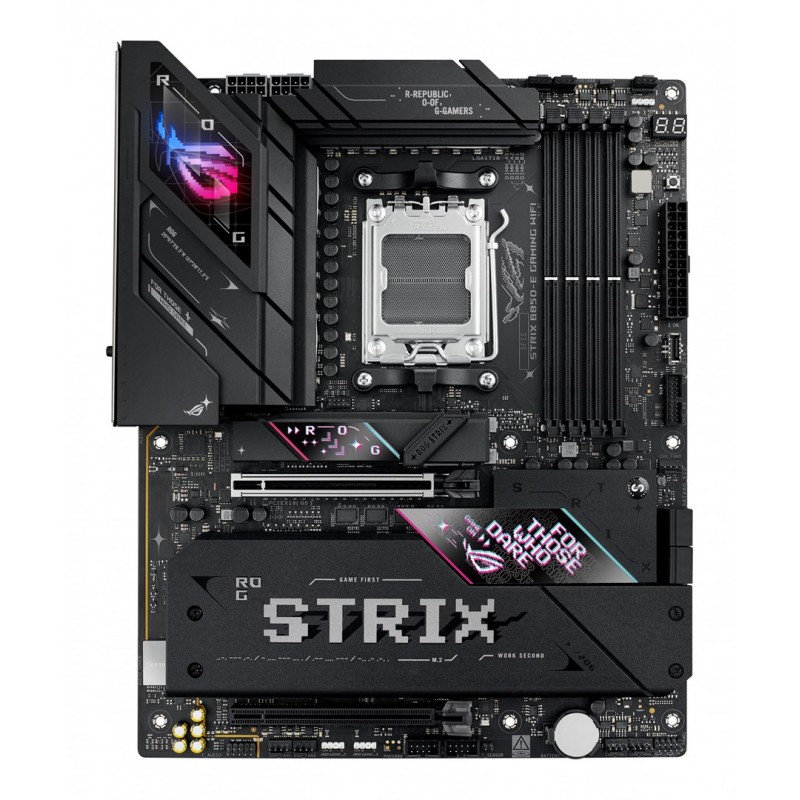

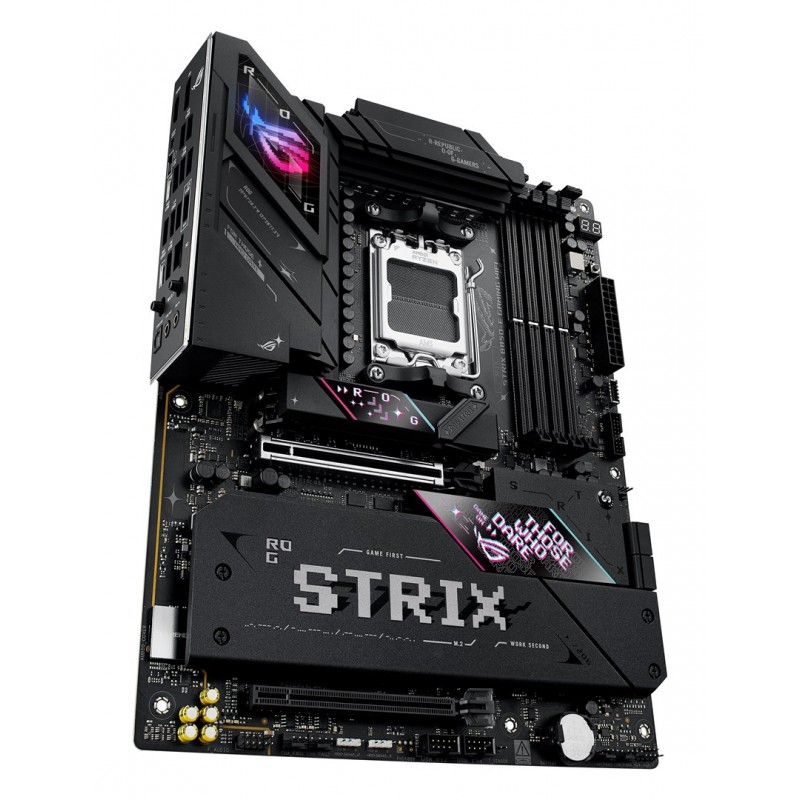

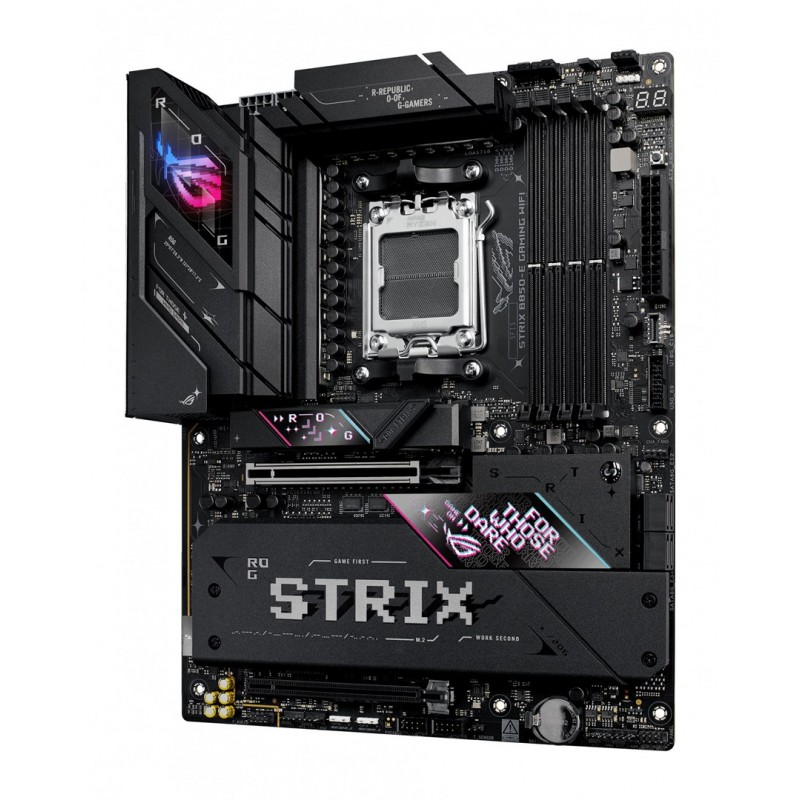

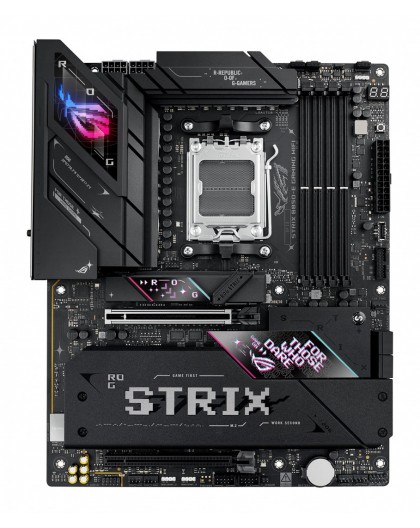

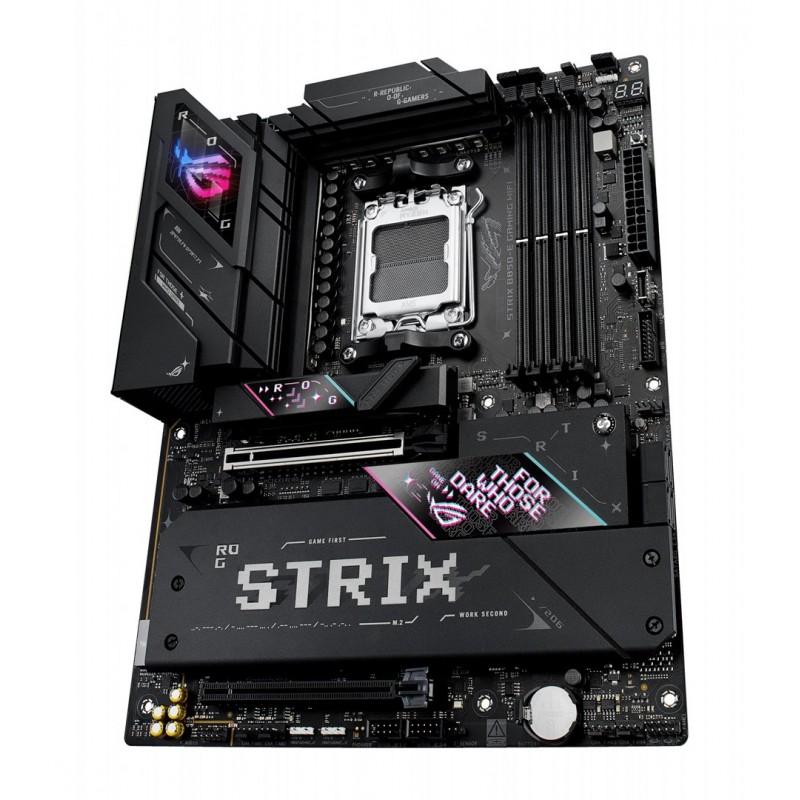

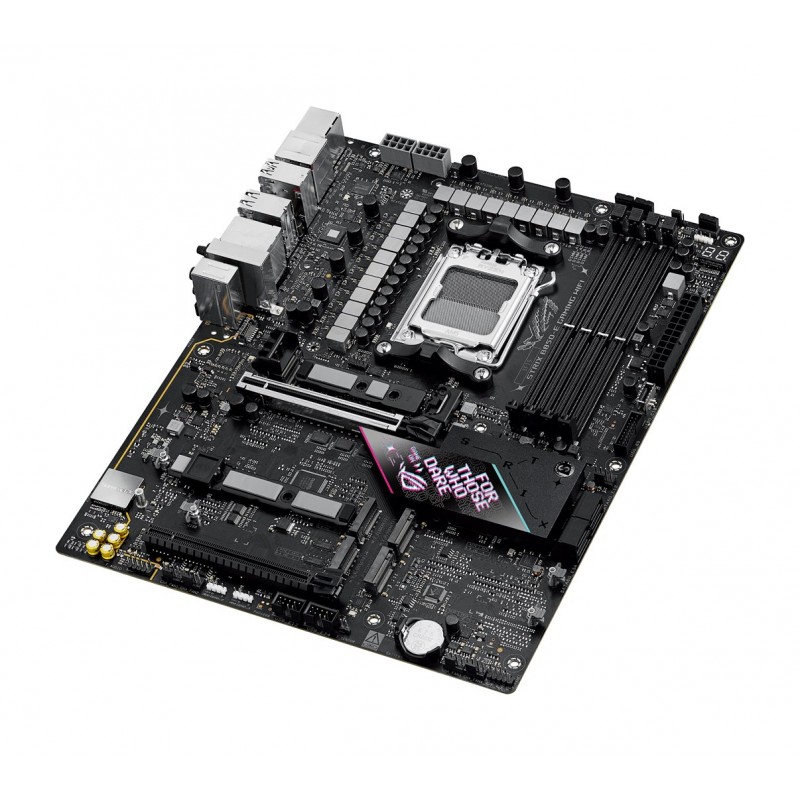

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard

ASUS

90MB1J60-M0EAY0

New product

4 Items

Shipping 2025-11-14 days

419,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Clear CMOS buttonYes
Expansion slots
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size2280
5th M.2 highest PCI Express generation4.0
5th M.2 largest key size2280
Number of M.2 (M) slots5
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Features
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Motherboard chipsetAMD B850
Motherboard chipset familyAMD
Motherboard form factorATX
Power source typeATX
Product colourBlack
Windows operating systems supportedWindows 11
Graphics
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors5
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)2
Number of RGB LED pin headers3
Number of SATA III connectors4
Number of temperature sensor headers1
Number of water pump connectors1
RGB LED pin headerYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityECC & Non-ECC
Maximum internal memory192 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8000 MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
Other features
Quick installation guideYes
Packaging content
Antenna includedYes
Cables includedSATA
Packaging data
Package depth281 mm
Package height87 mm
Package weight2.3 kg
Package width356 mm
Processor
Compatible processor seriesAMD Ryzen 7000 Series
Compatible processor seriesAMD Ryzen 9000 Series
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Rear panel I/O ports
Digital audio optical out1
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
S/PDIF out portYes
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
USB 3.2 Gen 2x2 Type-C ports quantity1
USB4 Gen 3x2 ports quantity1
WiFi-AP antenna jack2
Safety warning
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
Storage controllers
Number of HDDs supported4
Number of storage drives supported9
RAID levels5
RAID levels1
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width305 mm
