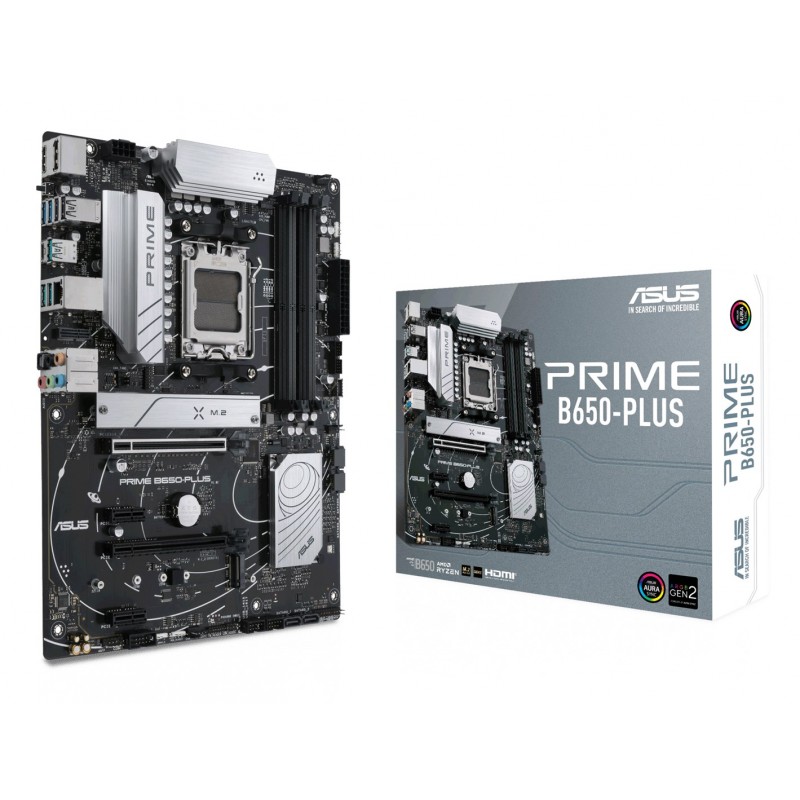

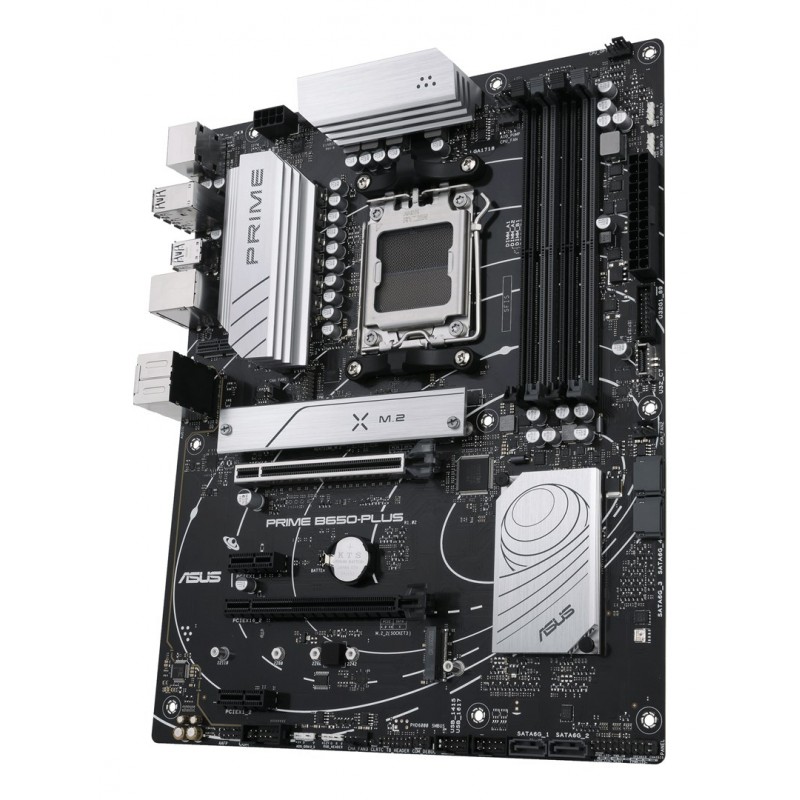

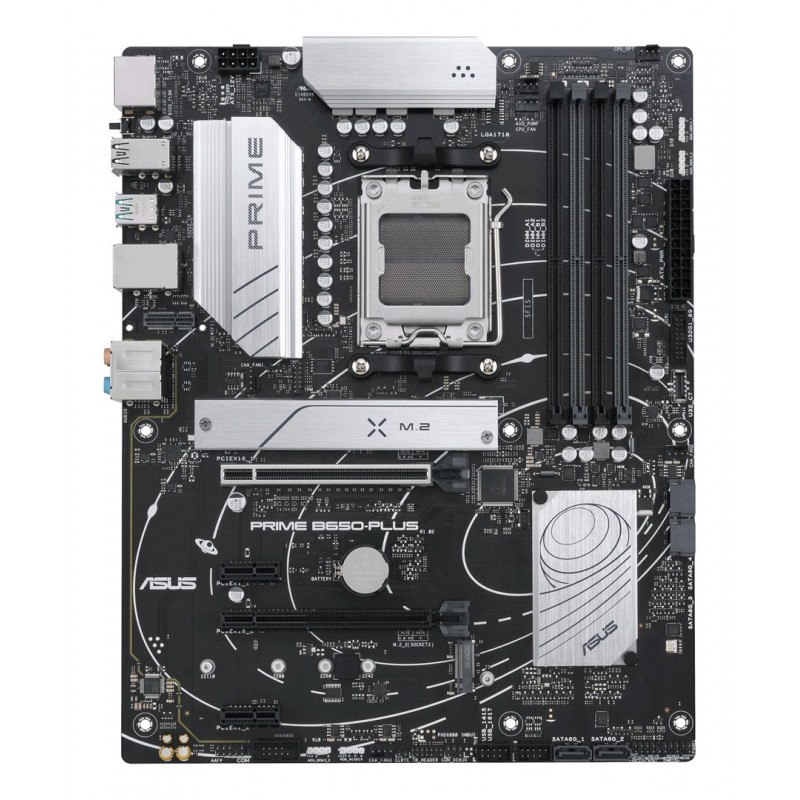

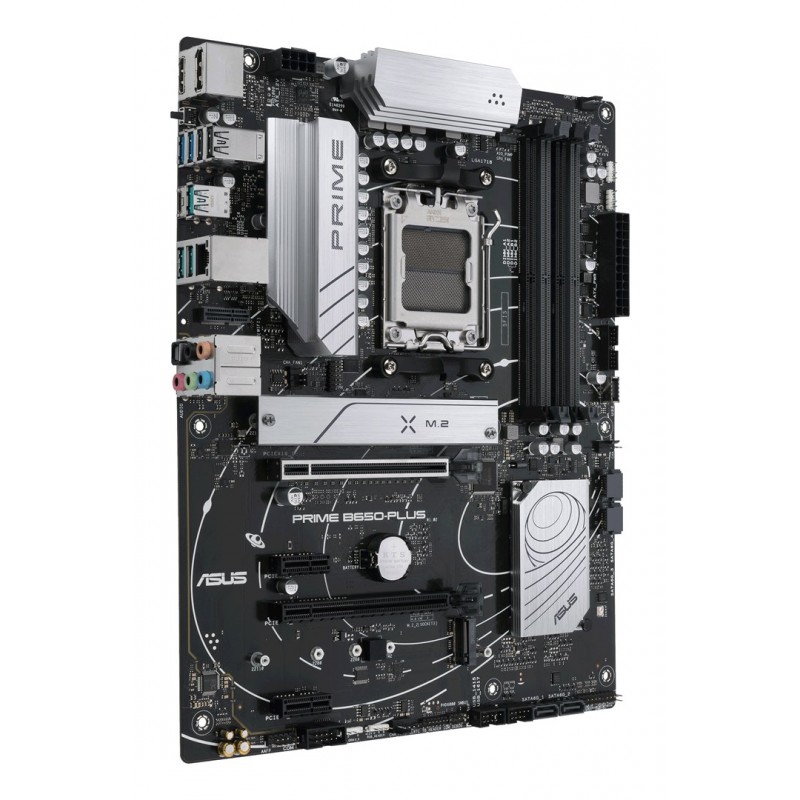

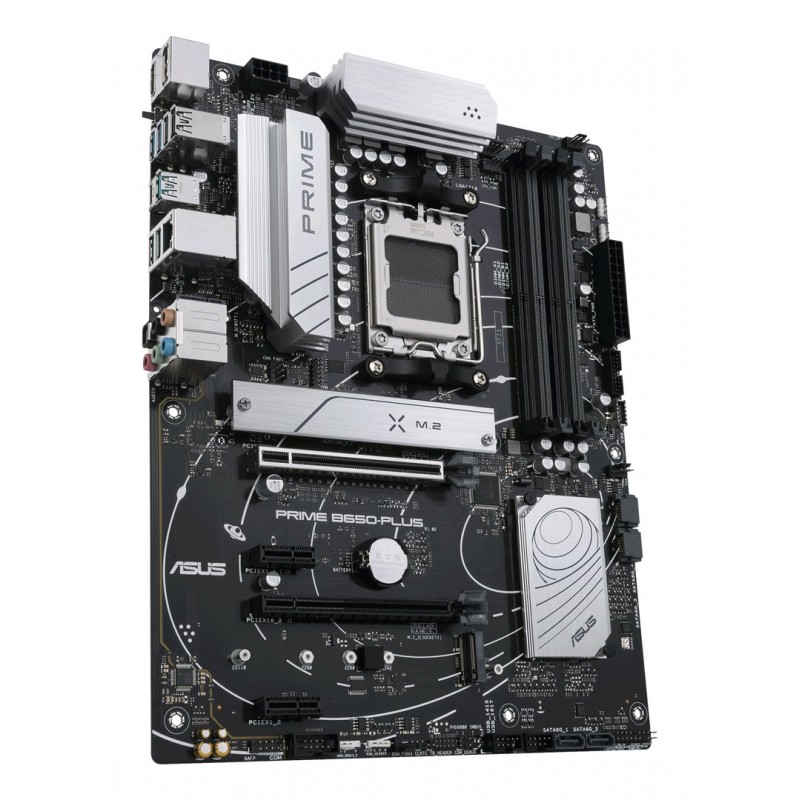

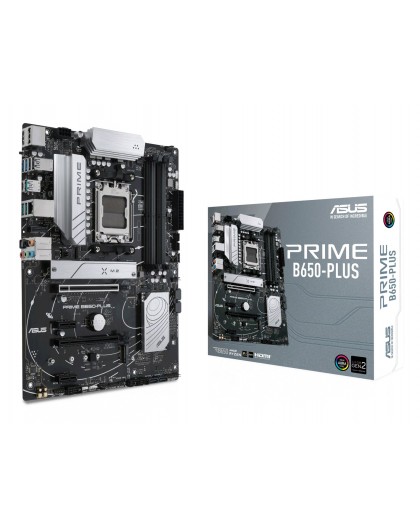

ASUS PRIME B650-PLUS AMD B650 Socket AM5 ATX
90MB1BS0-M0EAY0
New product
11 Items
Shipping 2025-11-14 days
169,00 € tax incl.
| BIOS | |
| BIOS type | UEFI AMI |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x4 (Gen 1.x) slots | 2 |
| Features | |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 11 x64 |
| Graphics | |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Memory | |
| ECC compatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 5000 |
| Supported memory clock speeds | 6000 |
| Supported memory clock speeds | 6400 MHz |
| Supported memory clock speeds | 5800 |
| Supported memory clock speeds | 5400 |
| Supported memory clock speeds | 5200 |
| Supported memory clock speeds | 5600 |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 6200 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Other features | |
| Back-to-BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Packaging data | |
| Package depth | 373 mm |
| Package height | 68 mm |
| Package weight | 1.35 kg |
| Package width | 338 mm |
| Processor | |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| Warnings | Avoid contact with liquids to prevent electronic damage. |
| Warnings | Dispose of in accordance with local regulations for electronic waste. |
| Storage controllers | |
| RAID levels | 1 |
| RAID levels | 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 244 mm |
| Width | 305 mm |
