Home / ///ASUS PRIME A520M-K AMD A520 Socket AM4 micro ATX
New ASUS PRIME A520M-K AMD A520 Socket AM4 micro ATX

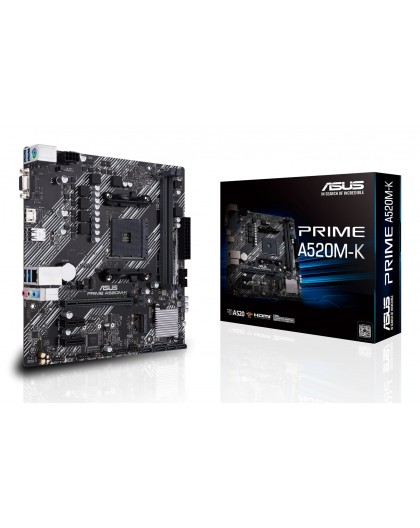

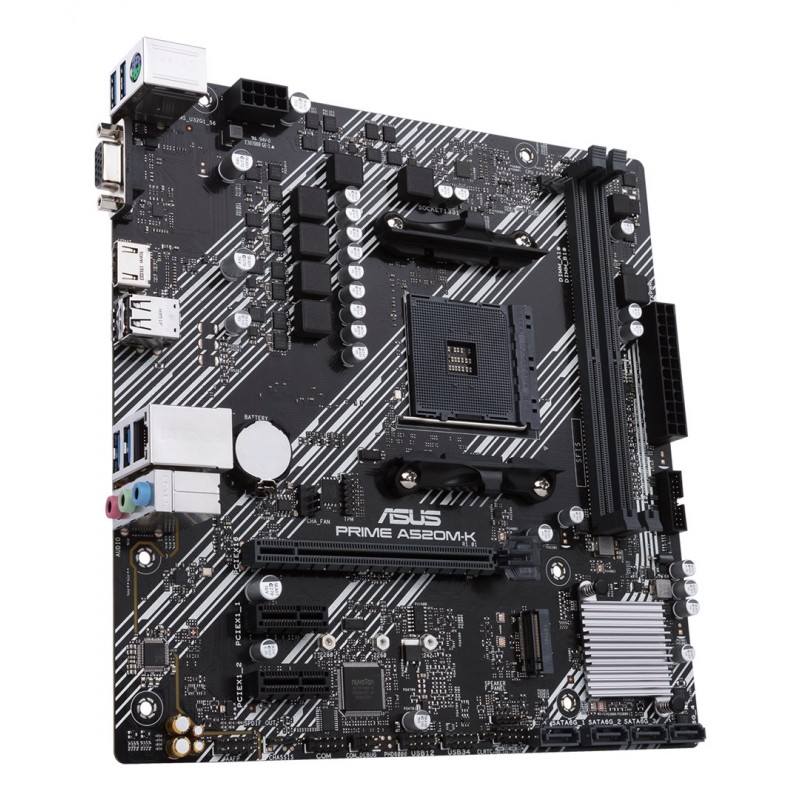

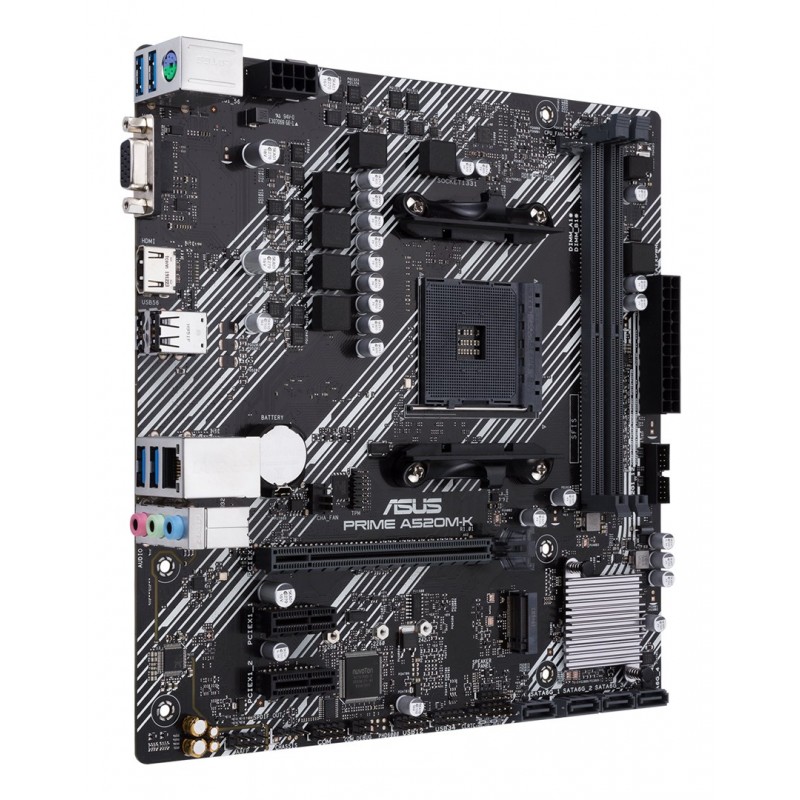

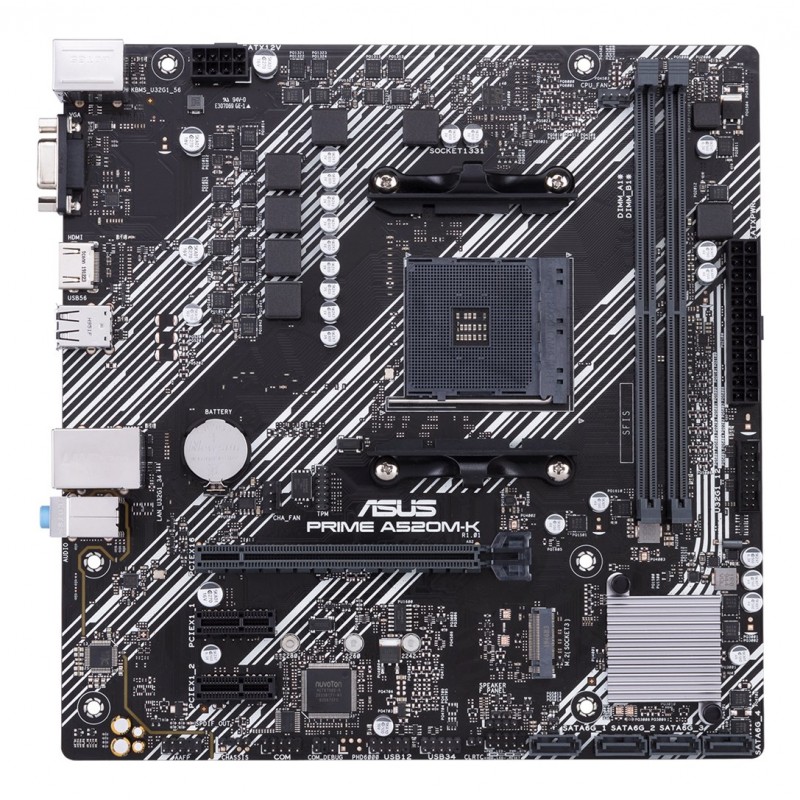

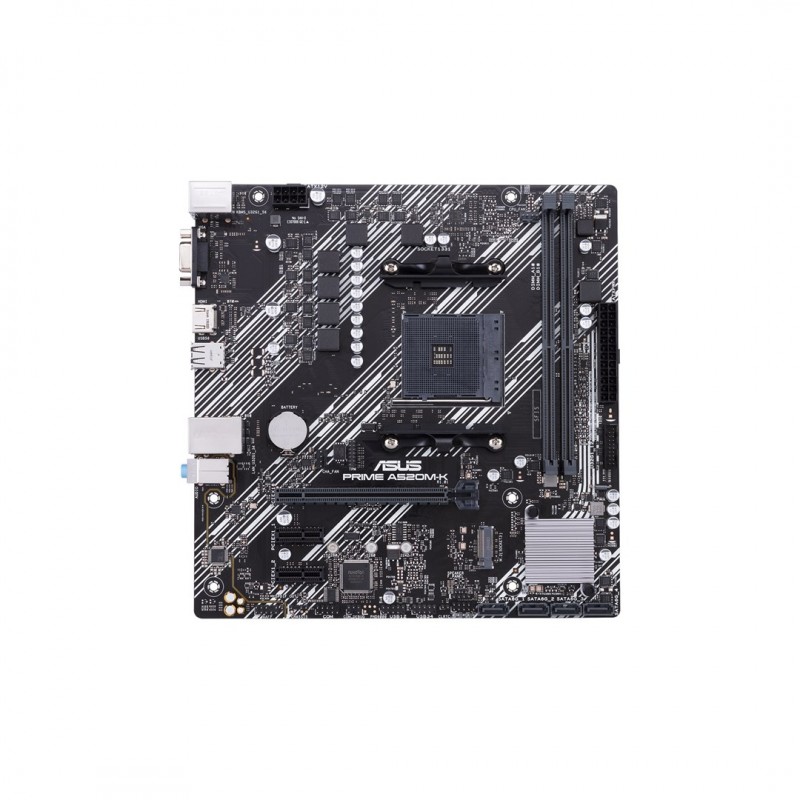

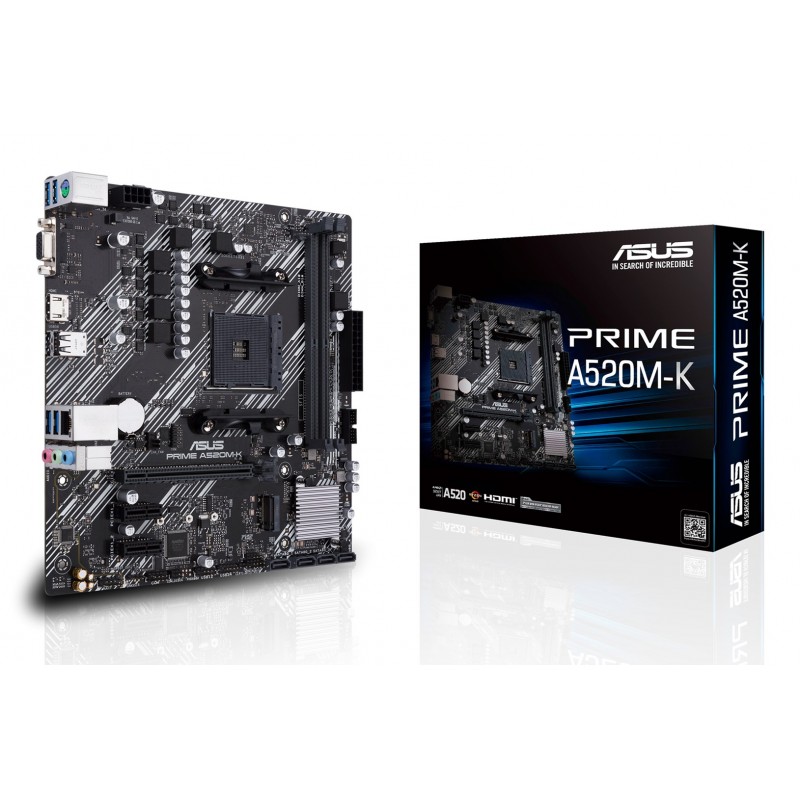

ASUS PRIME A520M-K AMD A520 Socket AM4 micro ATX

ASUS

PRIMEA520M-K

New product

6 Items

Shipping 2025-11-20 days

79,00 € tax incl.

BIOS
BIOS memory size256 Mbit
BIOS typeUEFI AMI
Clear CMOS jumperYes
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
Features
Audio chipRealtek ALC887 / Realtek ALC897
Audio output channels7.1 channels
Component forPC
Motherboard chipsetAMD A520
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11
Graphics
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Number of chassis fan connectors1
Number of COM connectors1
Number of EATX power connectors2
Number of SATA III connectors4
S/PDIF out connectorYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Logistics data
Harmonized System (HS) code84733020
Memory
ECC сompatibilityECC
Maximum internal memory64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speeds3466
Supported memory clock speeds3200 MHz
Supported memory clock speeds2666
Supported memory clock speeds4266
Supported memory clock speeds4333
Supported memory clock speeds4600
Supported memory clock speeds4133
Supported memory clock speeds4000
Supported memory clock speeds3733
Supported memory clock speeds4400 MHz
Supported memory clock speeds4866
Supported memory clock speeds3333
Supported memory clock speeds4466
Supported memory clock speeds3000
Supported memory clock speeds3400
Supported memory clock speeds3866
Supported memory clock speeds2400
Supported memory clock speeds2800
Supported memory clock speeds2933
Supported memory clock speeds3600
Supported memory clock speeds2133
Supported memory clock speeds4200
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wake-on-LAN readyYes
Wi-FiNo
Packaging content
Cables includedSATA
Processor
Compatible processor seriesAMD Ryzen™ 3
Compatible processor seriesAMD Ryzen™ 7
Compatible processor seriesAMD Ryzen™ 5
Processor manufacturerAMD
Processor socketSocket AM4
Supported processor socketsSocket AM4
Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs3
Microphone inYes
PS/2 ports quantity1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB connector typeUSB Type-A
VGA (D-Sub) ports quantity1
Safety warning
WarningsStore away from water and sources of moisture.
WarningsDispose of according to local electro-waste regulations.
WarningsAvoid direct contact with sensitive electronic components.
Storage controllers
Number of storage drives supported5
RAID levels1
RAID levels10
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth221 mm
Width226 mm
