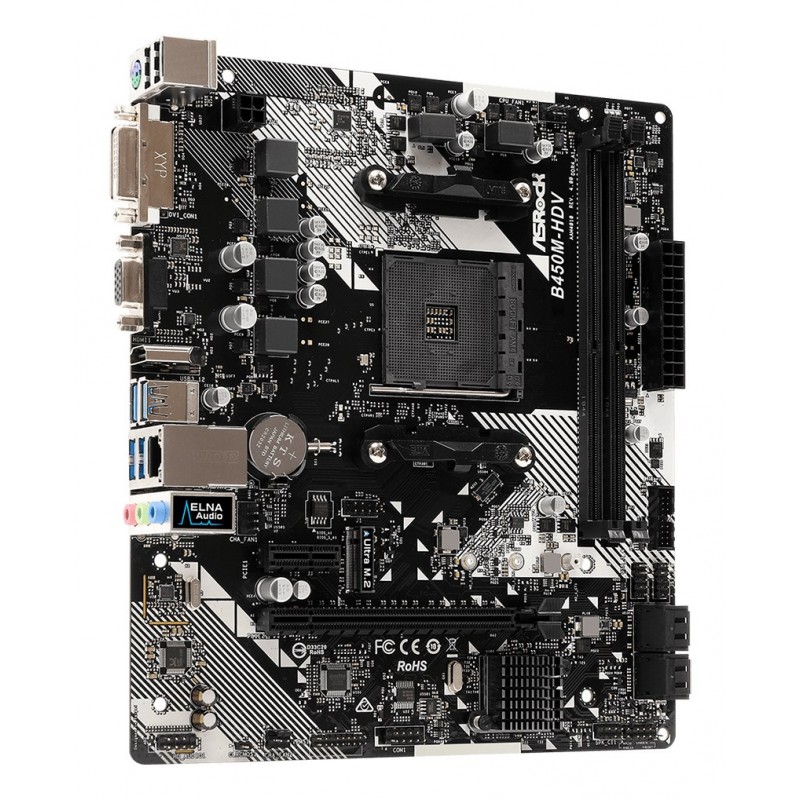

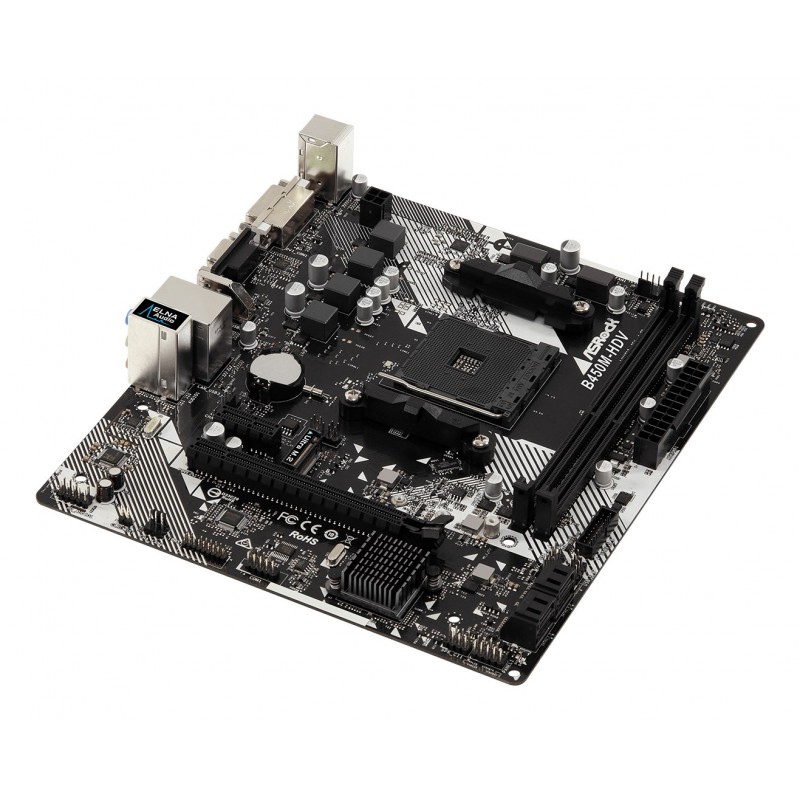

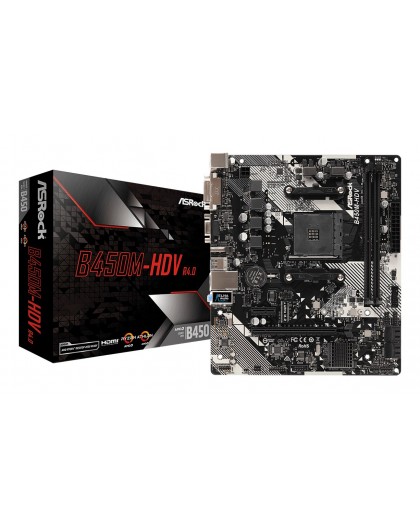

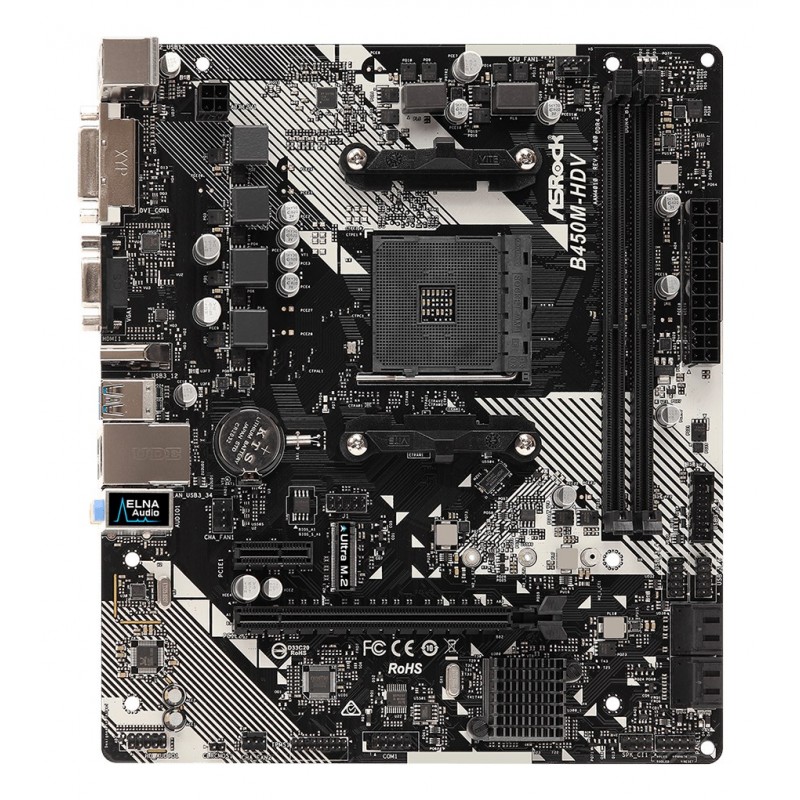

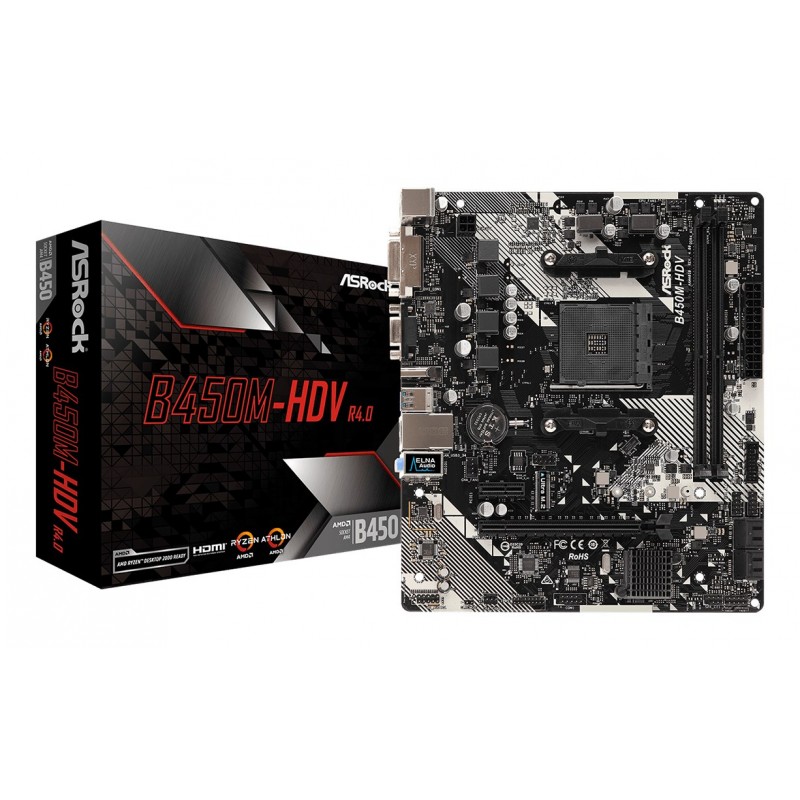

Asrock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
B450M-HDVR4.0
New product
200 Items
Shipping 2025-11-14 days
59,00 € tax incl.
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Features | |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Motherboard chipset | AMD B450 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 Home x64 |
| Windows operating systems supported | Windows 10 Pro x64 |
| Windows operating systems supported | Windows 10 Education x64 |
| Windows operating systems supported | Windows 10 Enterprise x64 |
| Windows operating systems supported | Windows 10 x64 |
| Graphics | |
| DirectX version | 12.0 |
| Graphics card family | AMD |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| On-board graphics card | Yes |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| 12V power connector | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| ECC compatibility | ECC & Non-ECC |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2667 |
| Supported memory clock speeds | 2933 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Other features | |
| Quick installation guide | Yes |
| Utilities included | Yes |
| Weight | 465 g |
| Packaging content | |
| Bundled software | AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Cables included | SATA |
| Drivers included | Yes |
| Processor | |
| Compatible processor series | AMD Ryzen 3000 Series |
| Compatible processor series | AMD Ryzen 2000 Series |
| Compatible processor series | AMD Athlon |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |

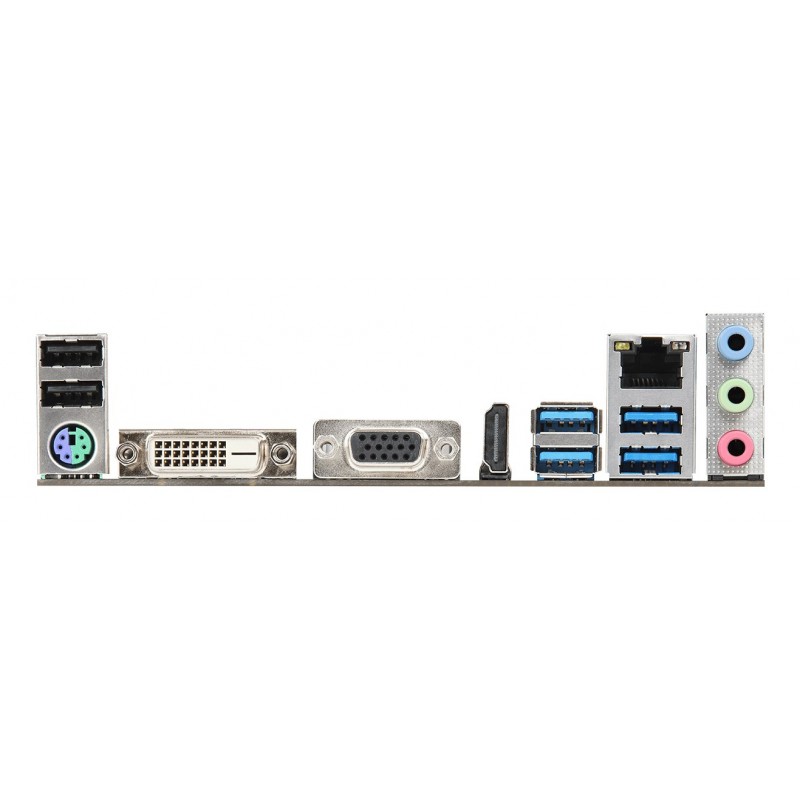

| Rear panel I/O ports | |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Safety warning | |
| Warnings | Dispose of according to local electro-waste regulations. |
| Warnings | Avoid direct contact with sensitive electronic components. |
| Warnings | Store away from water and sources of moisture. |
| Storage controllers | |
| RAID levels | 1 |
| RAID levels | 10 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 201 mm |
| Height | 70 mm |
| Width | 230 mm |
