New ASRock Z890M Riptide WiFi Motherboard

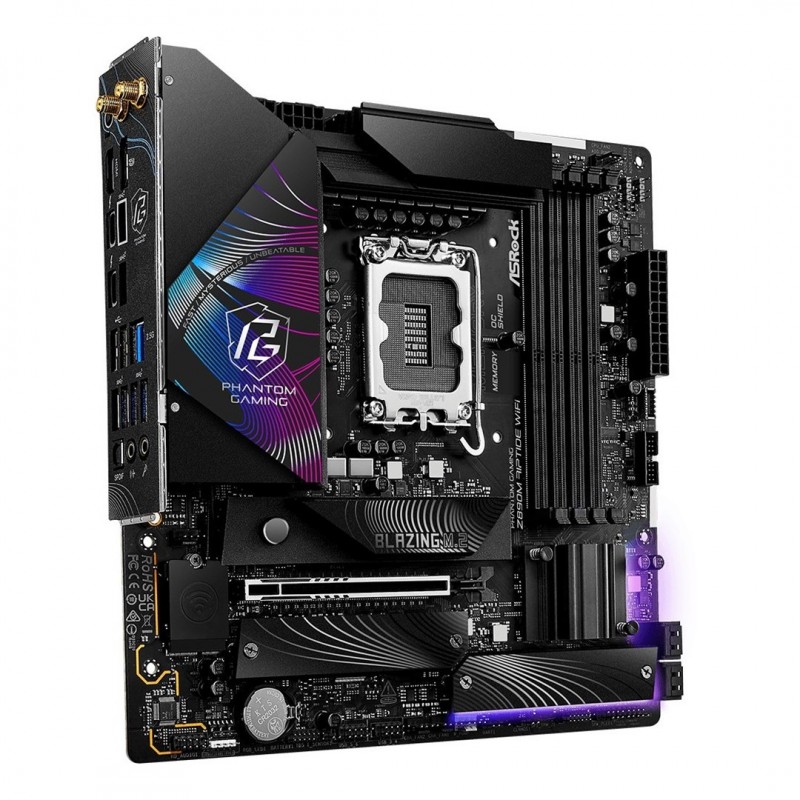

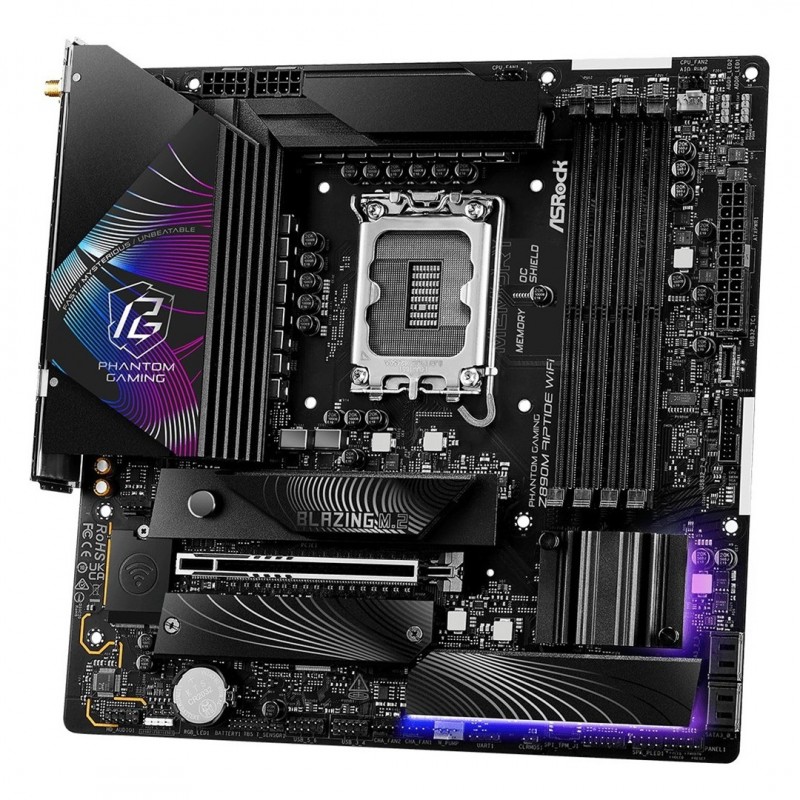

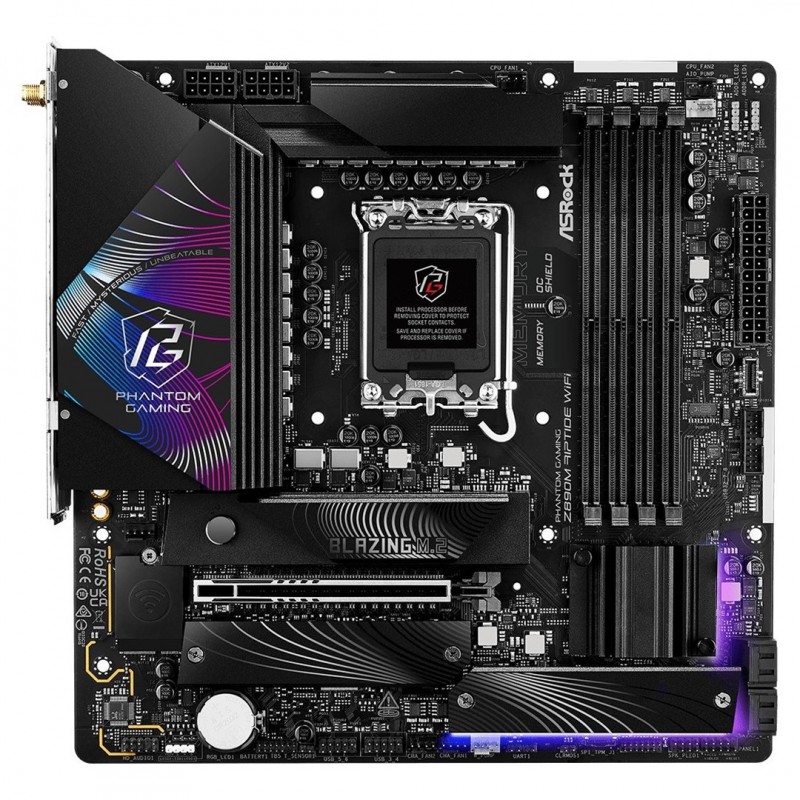

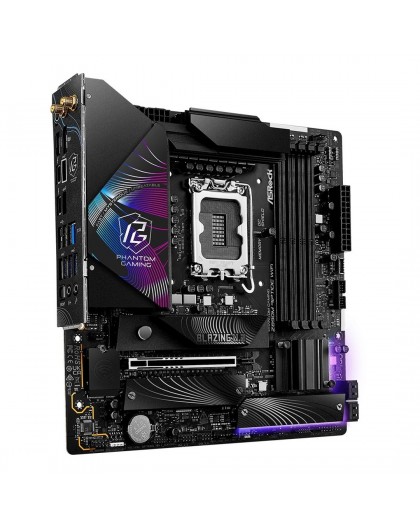

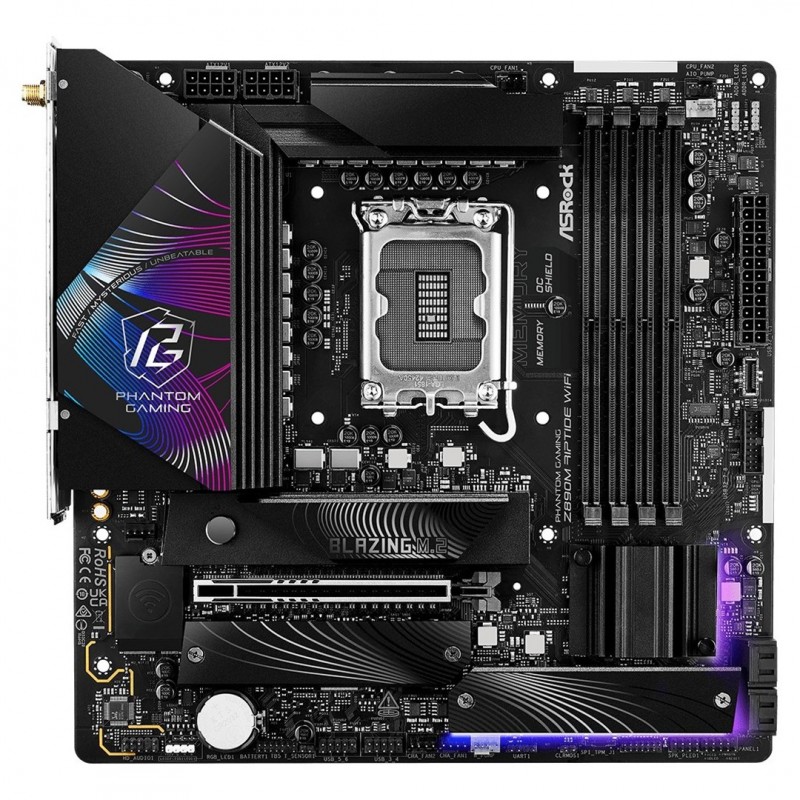

ASRock Z890M Riptide WiFi Motherboard

Asrock

Z890MRiptideWiFi

New product

5 Items

Shipping 2025-11-14 days

279,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Certificates
CertificatesFCC
CertificatesErP/EuP ready
CertificatesCE
Expansion slots
Number of M.2 (M) slots1
Number of SATA III connectors4
PCI Express x16 (Gen 5.x) slots1
Features
Audio chipRealtek ALC897
Audio output channels7.1 channels
Graphics cardIntel Xe LPG
Motherboard chipsetIntel Z890
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Internal I/O
8-pin power connector 12 V2
AIO pump fan connector1
ATX Power connector (24-pin)Yes
Chassis fan connector (4-pin)3
CPU fan connector2
Front panel audio connectorYes
Number of addressable LED slots2
Number of RGB LED pin headers1
Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports1
Pump connector1
Termistora HeaderYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Memory
ECC сompatibilityNon-ECC
Intel Extreme Memory Profile (XMP) version3.0
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Memory speed (max)9466 MHz
Number of memory slots4
Supported memory typesDDR5 DIMM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerKiller E3100G
Top Wi-Fi standardWi-Fi 6E (802.11axe)
Wi-FiYes
Wi-Fi frequency2,4 Ghz / 5 GHz / 6 GHz
Wi-Fi standards802.11 axe
Wi-Fi standards802.11a
Wi-Fi standards802.11ac
Wi-Fi standards802.11 ax
Wi-Fi standards802.11g
Wi-Fi standards802.11n
Wi-Fi standards802.11b
Wireless statisticsYes

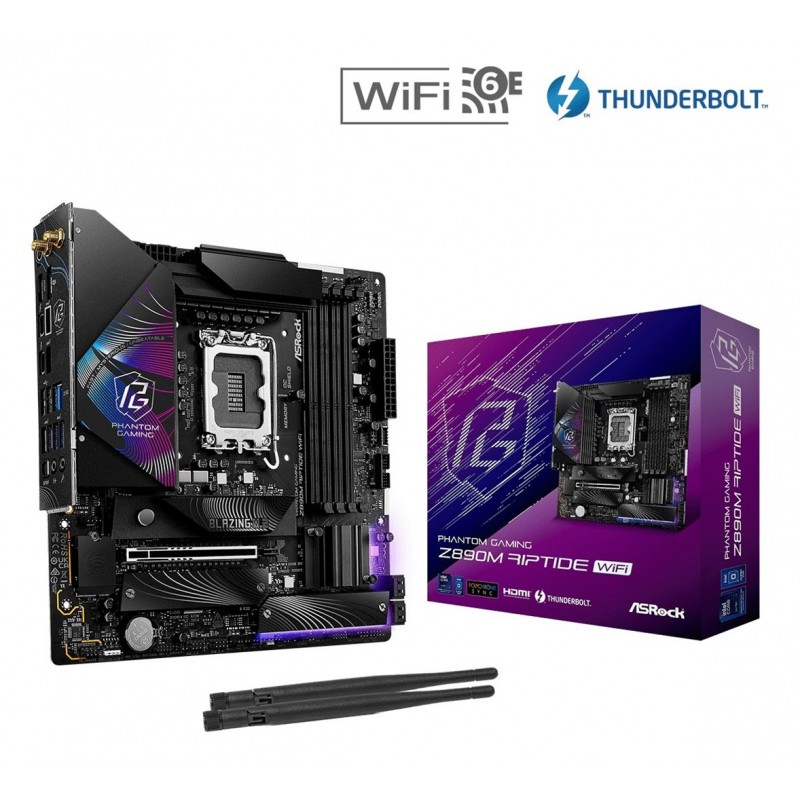

Packaging content
Antennas quantity2
Cables includedSATA III 2 pcs.
Cables includedARGB Splitter Cable x 1
Cables includedThermistor Cable x 1
MotherboardYes
Wi-Fi antennaYes
Processor
Compatible processor seriesIntel Core Ultra (Series 2)
Intel® Turbo Boost Technology3.0
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA1851RL-ILM
Rear panel I/O ports
DisplayPort out quantity1
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Line-outYes
Number of antenna connectors2
Number of microphone inputs1
Number of Thunderbolt 4 USB-C ports2
SPDIF optical outputY
USB 2.0 Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Storage controllers
RAID levels10
RAID levels1
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Width244 mm
