New ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX

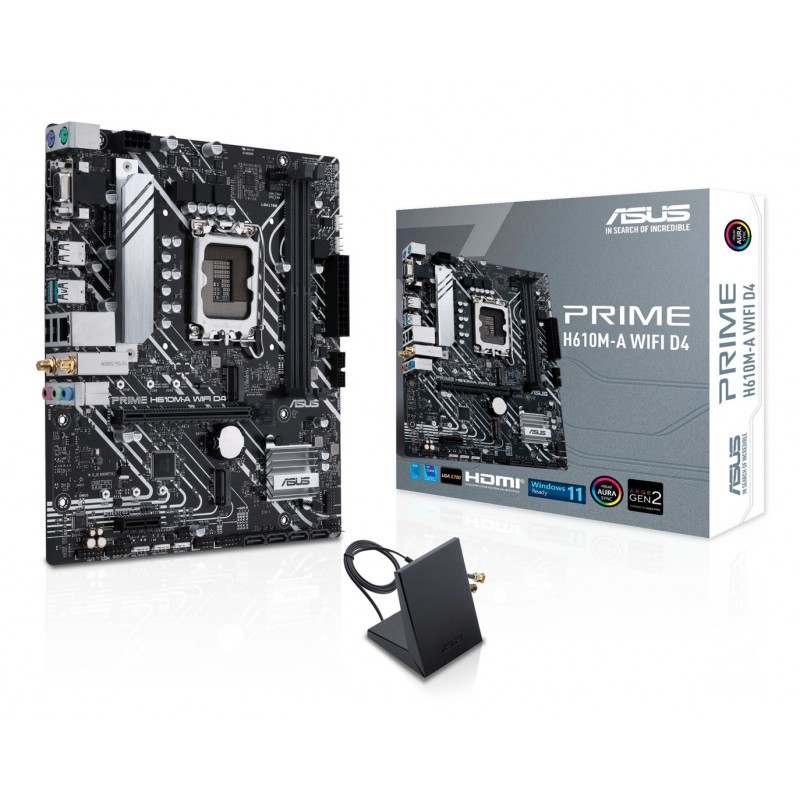

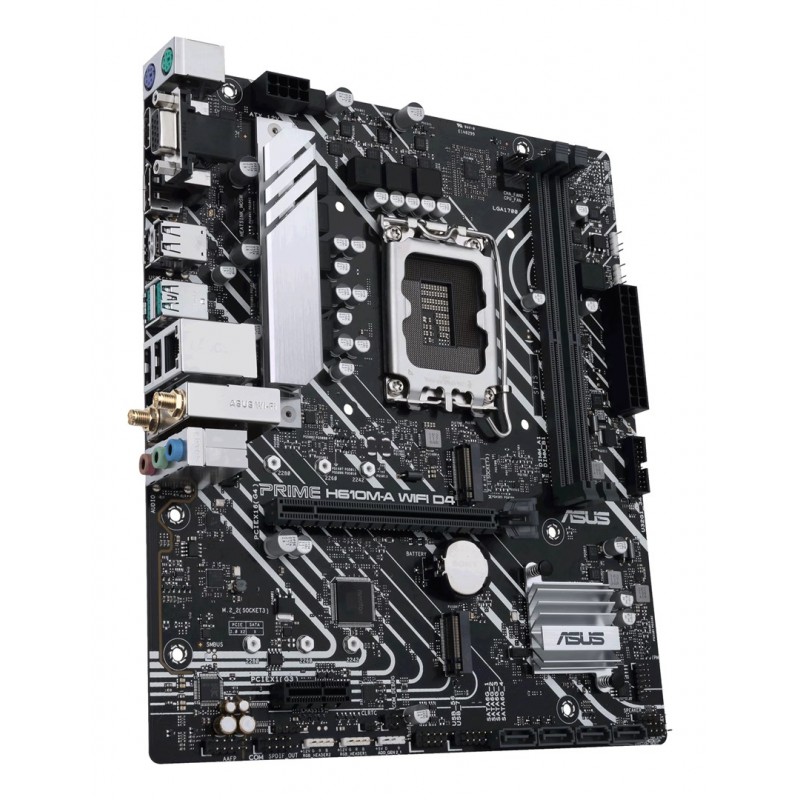

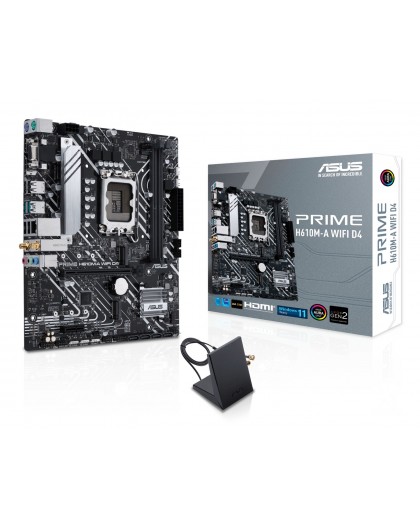

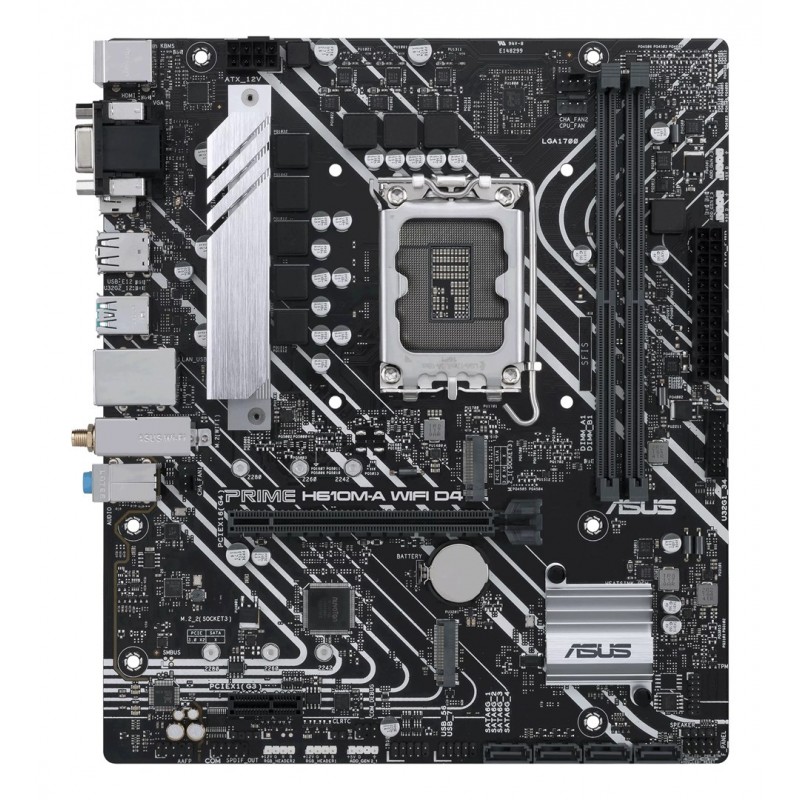

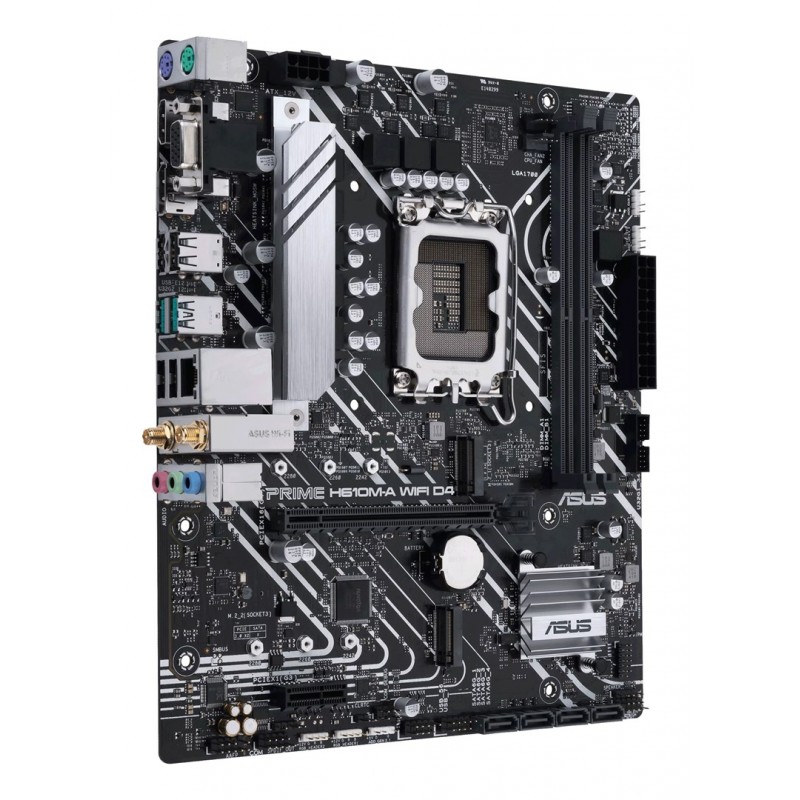

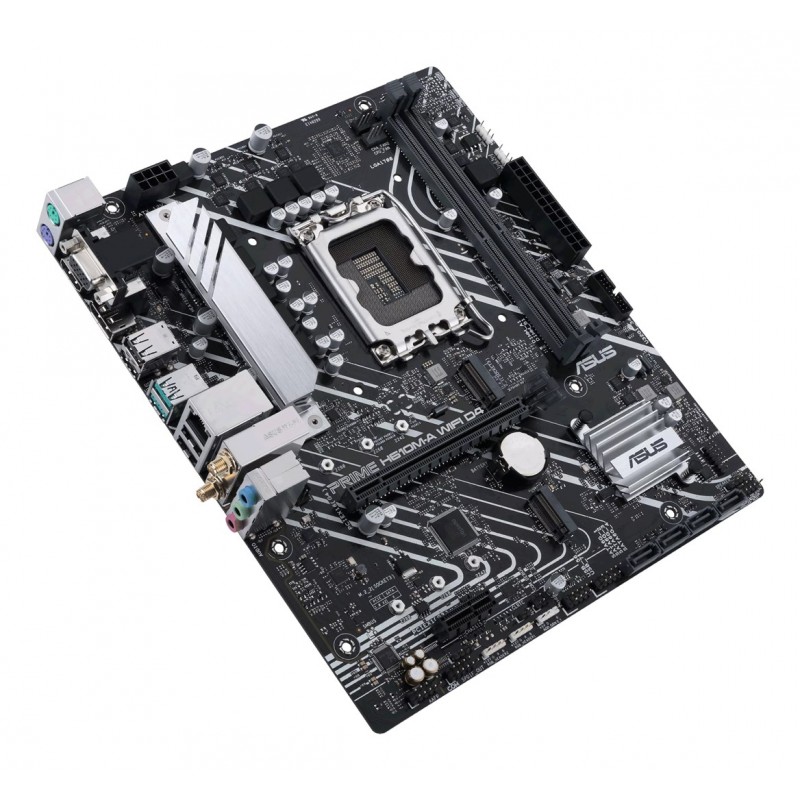

ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX

ASUS

90MB1C80-M0EAY0

New product

40 Items

Shipping 2025-11-14 days

99,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Features
Audio output channels7.1 channels
Motherboard chipsetIntel H610
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11 x64
Graphics
Number of displays supported3
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors2
Number of COM connectors1
Number of SATA III connectors4
RGB LED pin headerYes
S/PDIF out connectorYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Logistics data
Harmonized System (HS) code84733020
Memory
ECC сompatibilityNon-ECC
Maximum internal memory64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speeds2133
Supported memory clock speeds3200
Supported memory clock speeds2666
Supported memory clock speeds2933
Supported memory clock speeds3000
Supported memory clock speeds2400
Supported memory clock speeds2800
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Network
BluetoothYes
Bluetooth version5.0
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-FiYes
Wi-Fi standards802.11g
Wi-Fi standards802.11b
Wi-Fi standardsWi-Fi 4 (802.11n)
Wi-Fi standards802.11a
Wi-Fi standardsWi-Fi 5 (802.11ac)
Other features
Weight815 g
Packaging content
Cables includedSATA
Drivers includedYes
Processor
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Celeron®
Compatible processor seriesIntel® Core™ i3
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Pentium®
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Microphone inYes
PS/2 ports quantity2
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
Safety warning
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
Storage controllers
Supported storage drive interfacesM.2, SATA
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth211 mm
Height58 mm
Width244 mm
