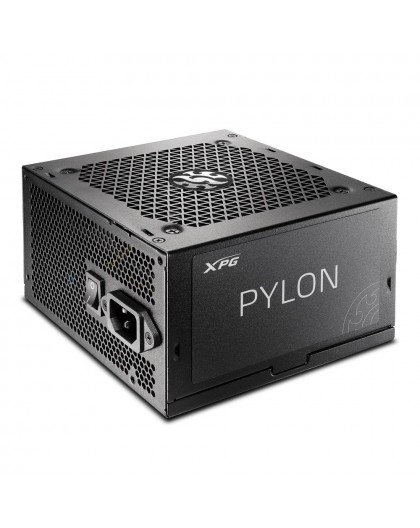

XPG PYLON 550W Power Supply
75260122
New product
38 Items
Shipping 2025-11-14 days
69,00 € tax incl.
| Certificates | |
| Certification | CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC |
| Compliance certificates | RoHS |
| Design | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Cables included | AC |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 546 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Input current | 8/4 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 45.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Overheating |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Over power |
| Total power | 550 W |
| Safety warning | |
| Warnings | The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
| Warnings | Do not open the case - risk of electric shock. |
| Warnings | Avoid contact of the product with water or other liquids. |
| Technical details | |
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Depth | 150 mm |
| Height | 86 mm |
| Width | 140 mm |
