New Seasonic VERTEX GX 1200 - stromforsyni

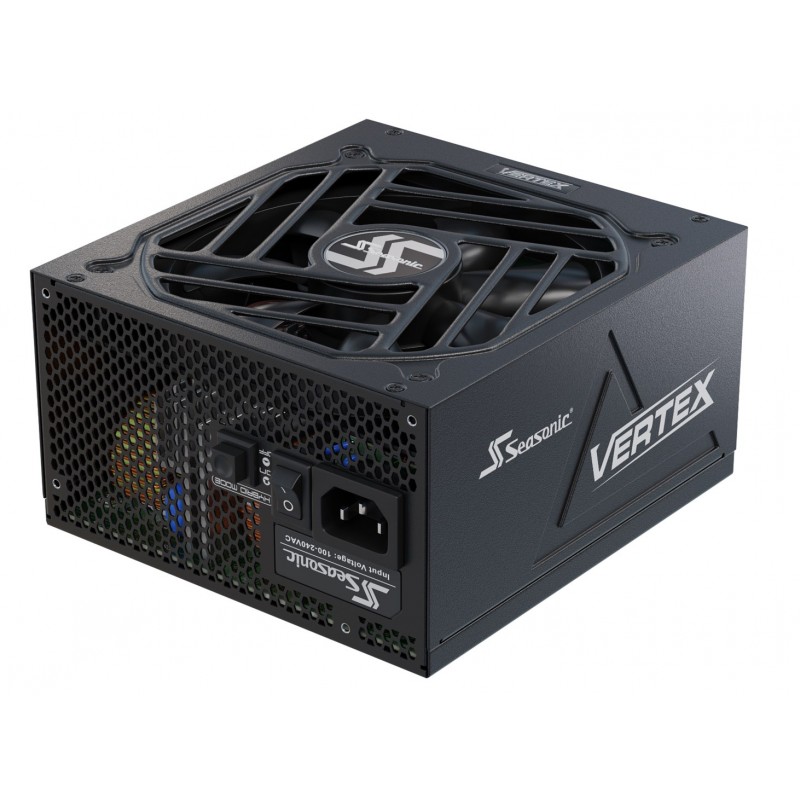

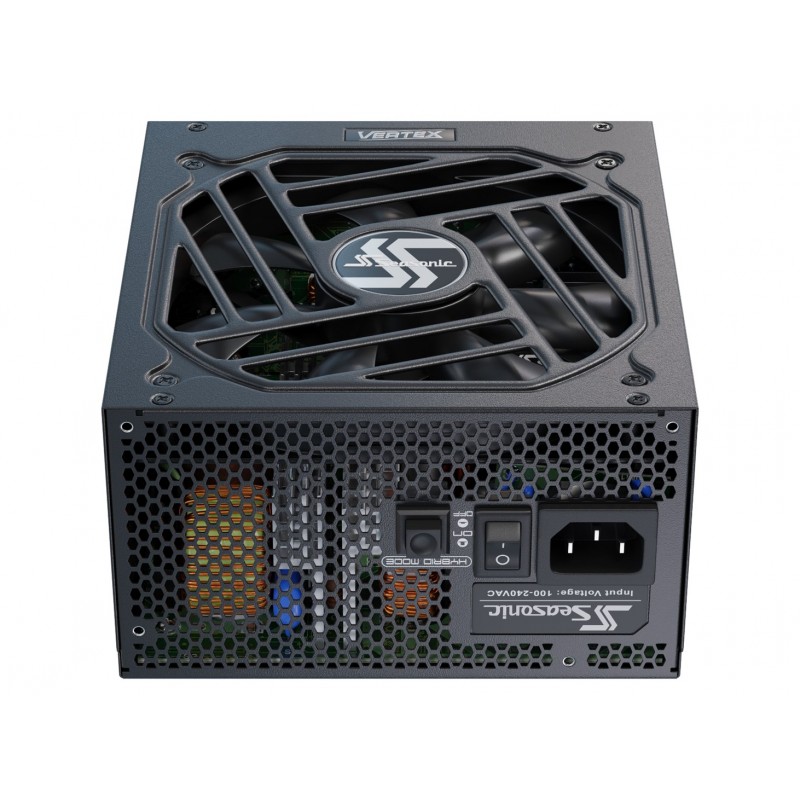

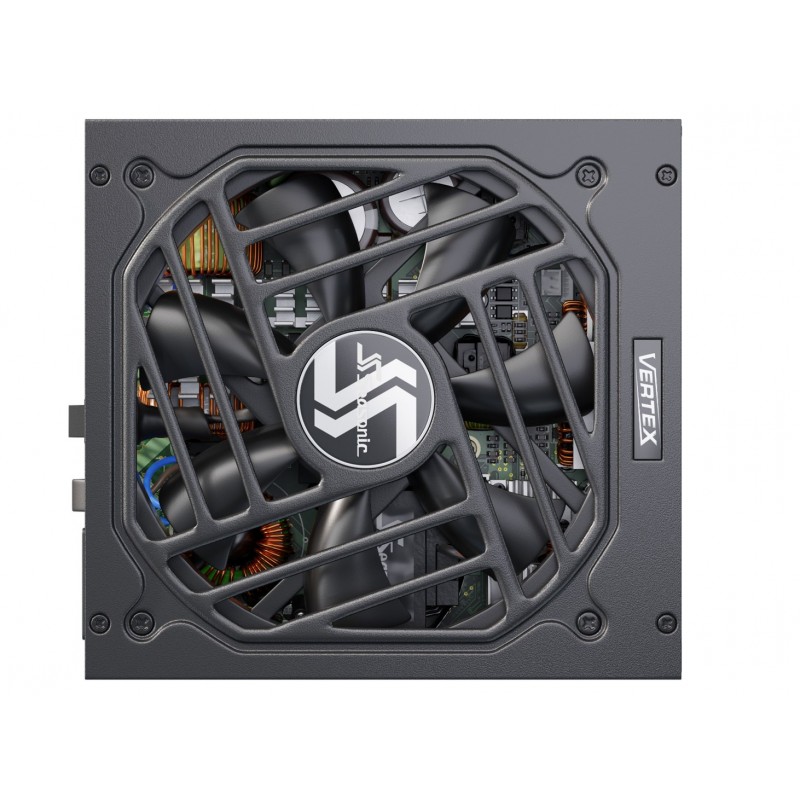

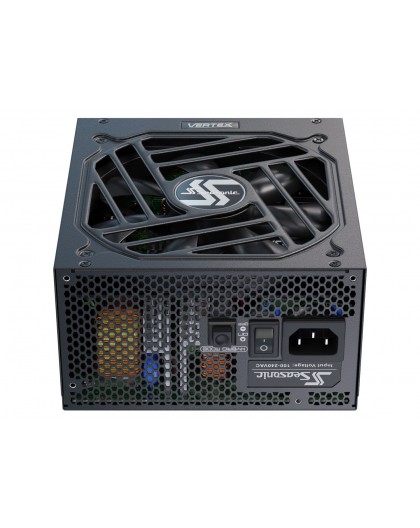

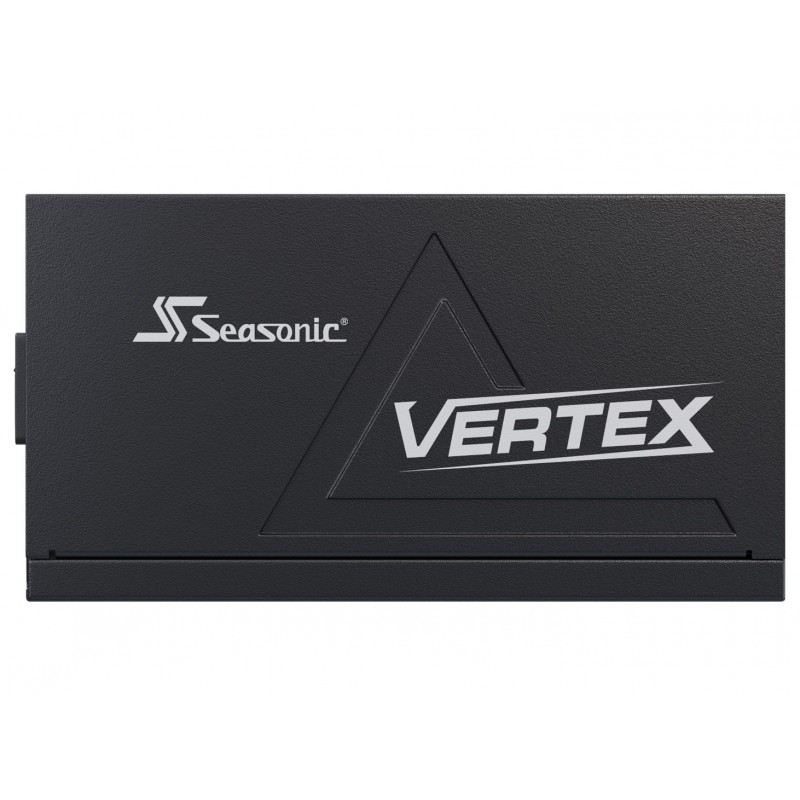

Seasonic VERTEX GX 1200 - stromforsyni

Seasonic

VERTEXGX-1200

New product

15 Items

Shipping 2025-11-21 days

269,00 € tax incl.

Certificates
CertificationcTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Design
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Logistics data
Warranty period10 year(s)
Operational conditions
Operating temperature (T-T)0 - 50 °C
Packaging content
Cable tie(s) includedYes
Cables includedAC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS Gold
ATX version3.0
Bearing technologyFDB
Mean time between failures (MTBF)150000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular
CPU P4 connector (4-pin)2
CPU power cable length65 cm
Motherboard power cable length61 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors4
Peripheral (Molex) power cable length690 mm
Peripheral (Molex) power connectors (4-pin)1
SATA power cable length950 mm
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)1200 W
Combined power (+3.3V)125 W
Combined power (+5V)125 W
Combined power (+5Vsb)15 W
Input current15 - 7.5 A
Max output current (-12V)0.3 A
Max output current (+12V)100 A
Max output current (+3.3V)25 A
Max output current (+5V)25 A
Max output current (+5Vsb)3 A
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresOver power
Total power1200 W
Safety warning
WarningsAvoid contact of the product with water or other liquids.
WarningsDo not open the case - risk of electric shock.
WarningsThe product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
Weight & dimensions
Depth160 mm
Height86 mm
Width150 mm
