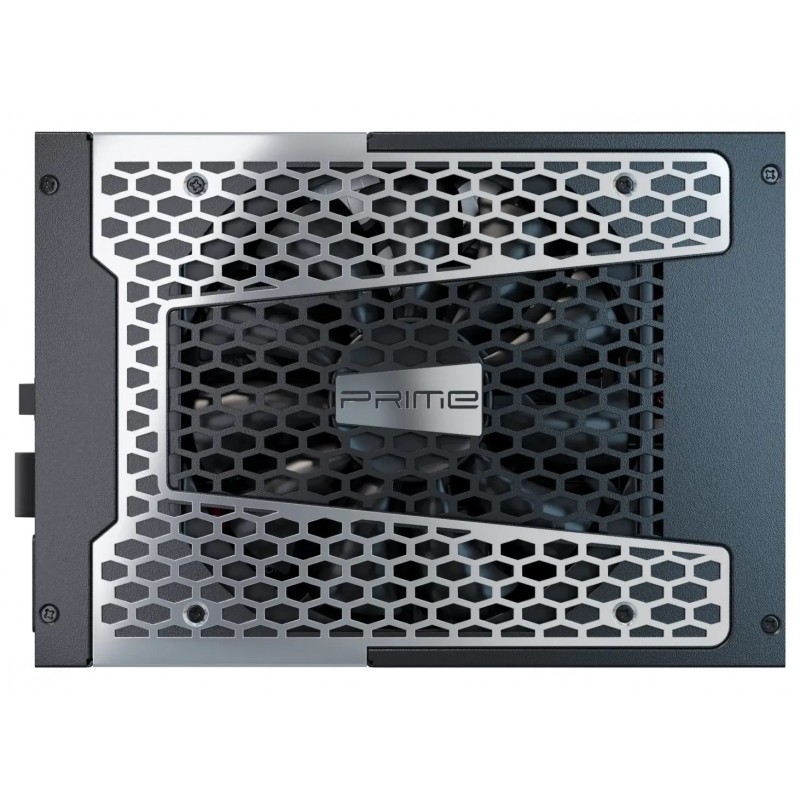

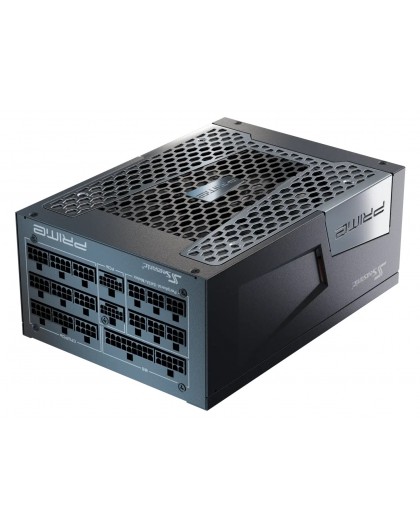

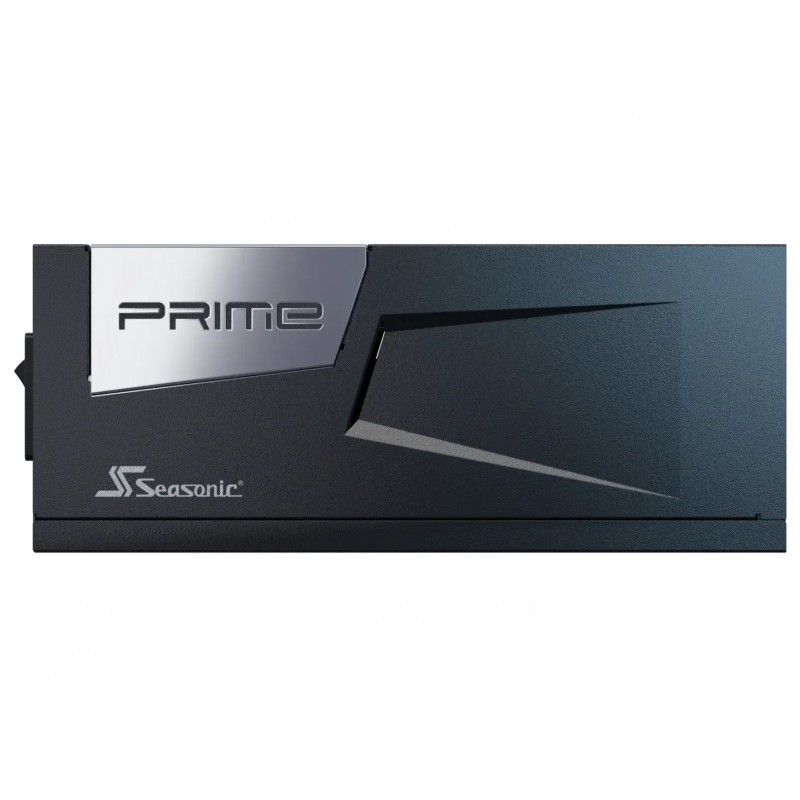

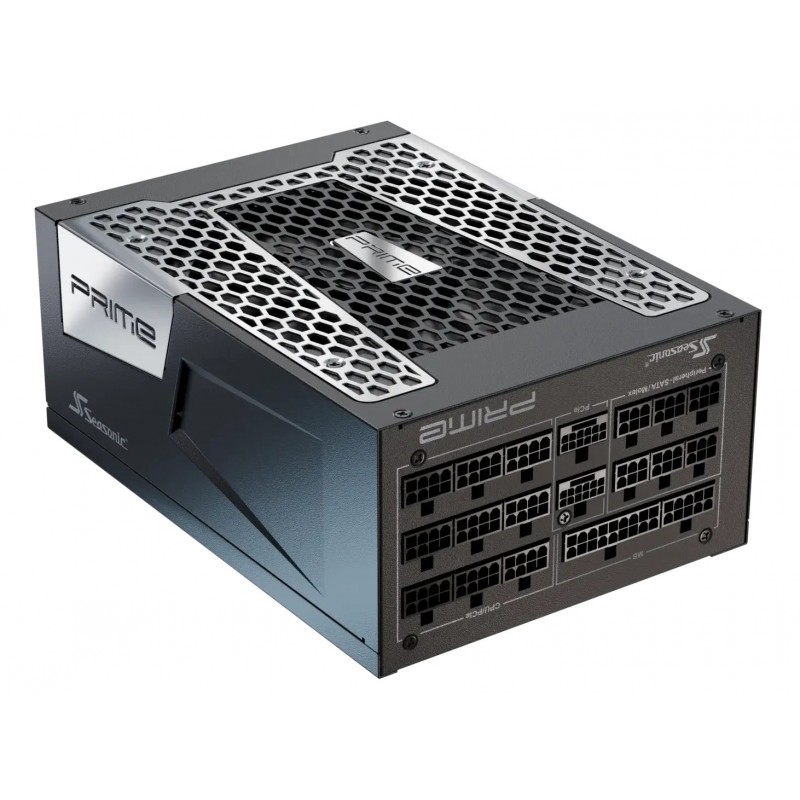

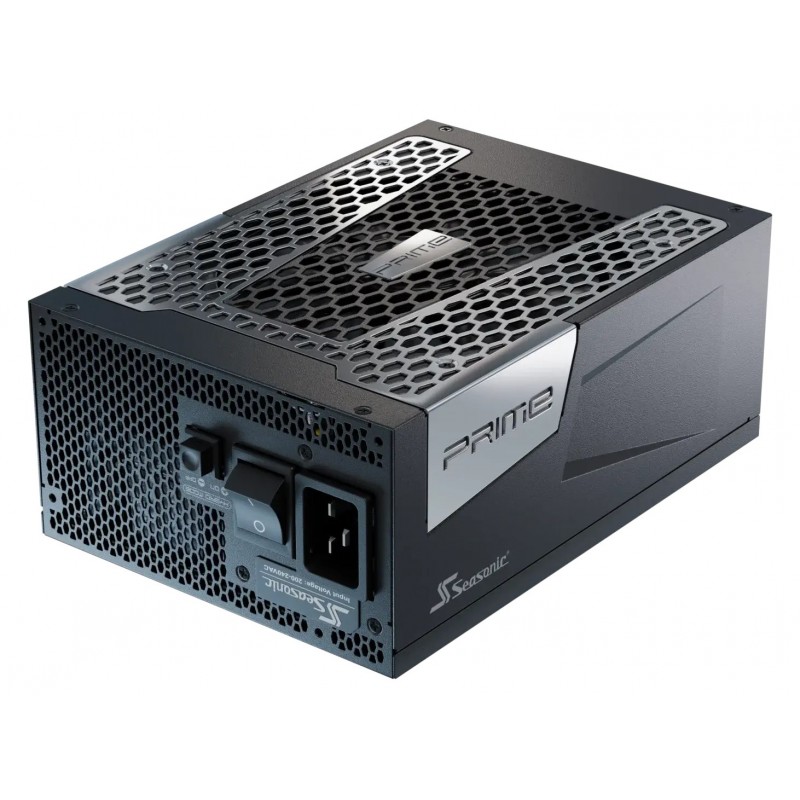

Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black
PRIME-PX-2200-ATX30
New product
116 Items
Shipping 2025-11-14 days
549,00 € tax incl.
| Certificates | |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | CCC |
| Compliance certificates | REACH |
| Compliance certificates | WEEE |
| Design | |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | |
| Cable tie(s) included | Yes |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Packaging data | |
| Package type | Box |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 150000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Ports & interfaces | |
| Cabling type | Fully-Modular |
| CPU power cable length | 70 cm |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power cable length | 470 |
| Peripheral (Molex) power cable length | 690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 450 |
| SATA power cable length | 950 mm |
| SATA power cable length | 860 mm |
| SATA power cable length | 550 |
| SATA power cable length | 470 |
| SATA power cable length | 570 |
| SATA power cable length | 760 mm |
| Power | |
| AC input voltage | 115 - 240 V |
| Combined power (-12V) | 6 W |
| Combined power (+12V) | 2200 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Input current | 15 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+12V) | 183.3 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Total power | 2200 W |
| Weight & dimensions | |
| Depth | 210 mm |
| Height | 86 mm |
| Width | 150 mm |
