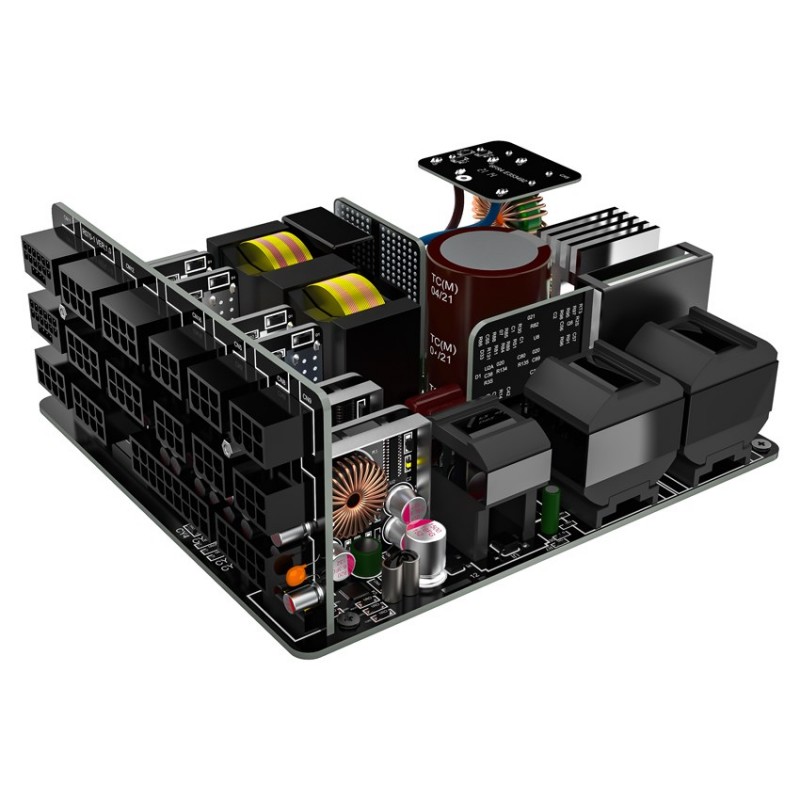

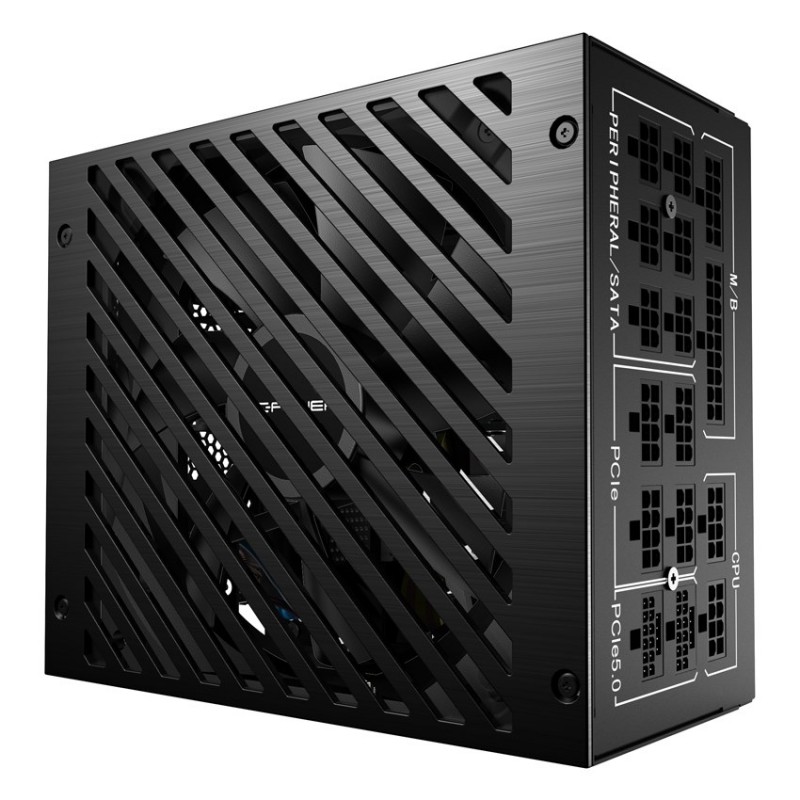

LC-Power LC1000P V3.0 power supply unit 1000 W 20+4 pin ATX ATX Black
LC1000PV3.0
New product
4 Items
Shipping 2025-11-24 days
239,00 € tax incl.
| Design | |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Packaging content | |
| Cables included | PATA, PCIe, SATA |
| Packaging data | |
| Package depth | 310 mm |
| Package height | 225 mm |
| Package type | Box |
| Package weight | 3.39 kg |
| Package width | 115 mm |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| Ports & interfaces | |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 65 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 5 |
| Number of SATA power connectors | 10 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| Peripheral (Molex) power cable length | 500 mm |
| Peripheral (Molex) power cable length | 800 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 650 |
| SATA power cable length | 950 mm |
| SATA power cable length | 800 |
| SATA power cable length | 500 mm |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Combined power (-12V) | 4.8 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 92% |
| Max output current (-12V) | 0.4 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Overheating |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Over power |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Total power | 1000 W |
| Safety warning | |
| Hazard pictogram(s) | GHS07: Harmful |
| Hazard pictogram(s) | GHS02: Flammable |
| Hazard pictogram(s) | GHS09: Environmental hazard |
| Technical details | |
| Compliance certificates | cTUVus |
| Compliance certificates | CE |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Depth | 180 mm |
| Height | 150 mm |
| Weight | 3.05 kg |
| Width | 86 mm |
