Home / ///GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
New GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug

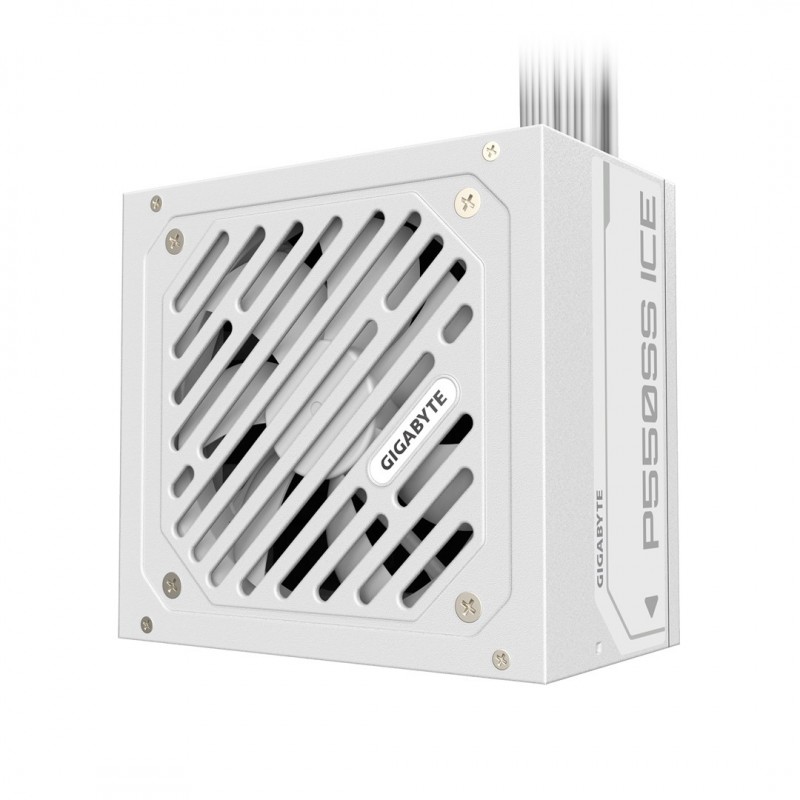

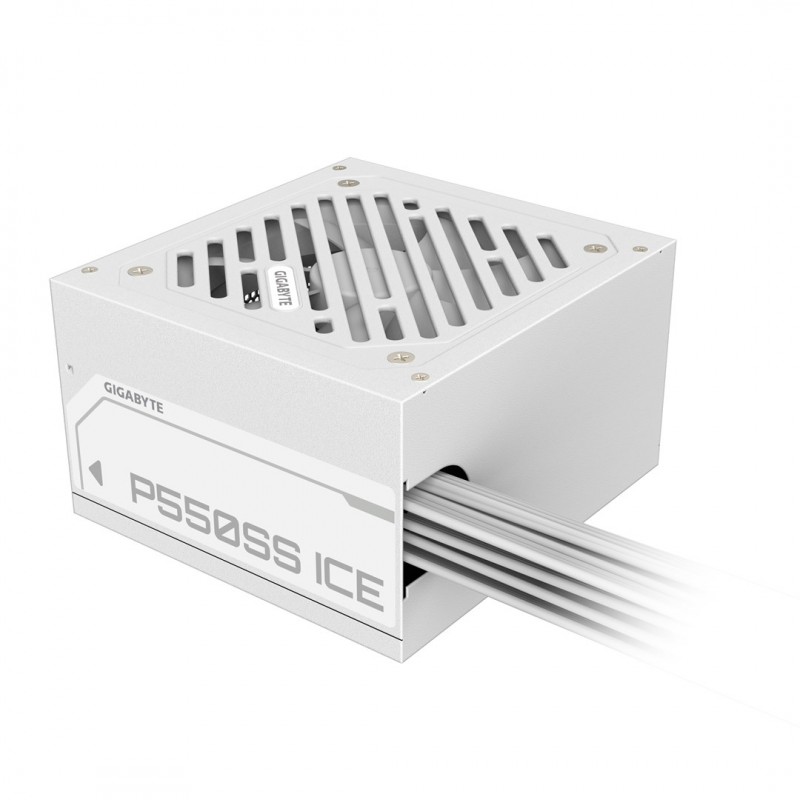

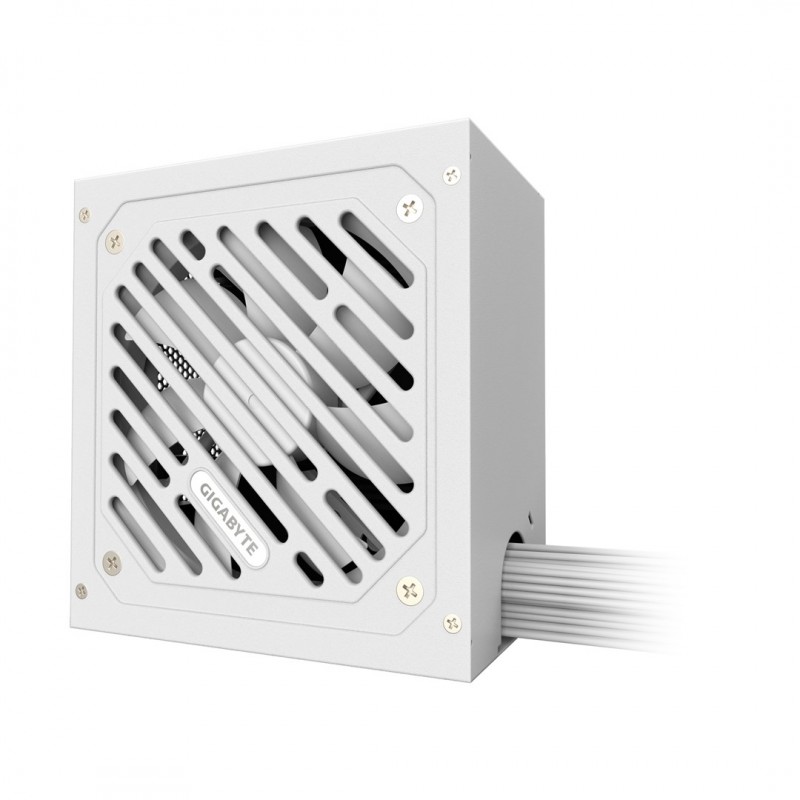

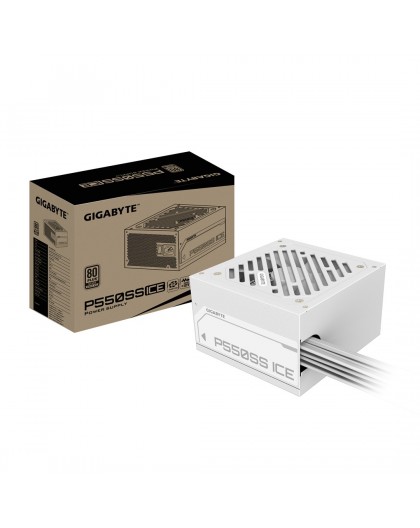

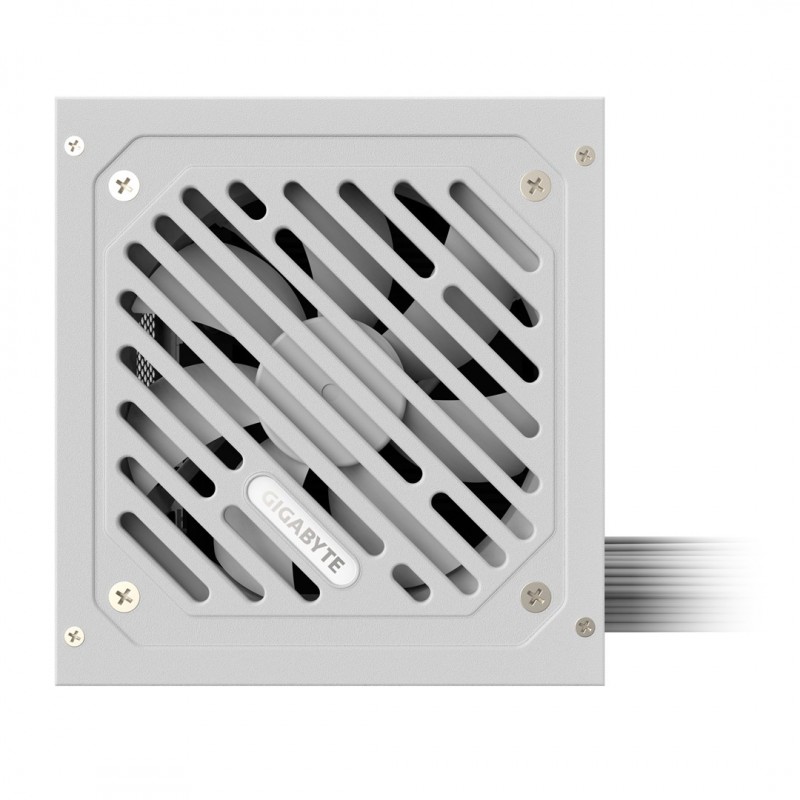

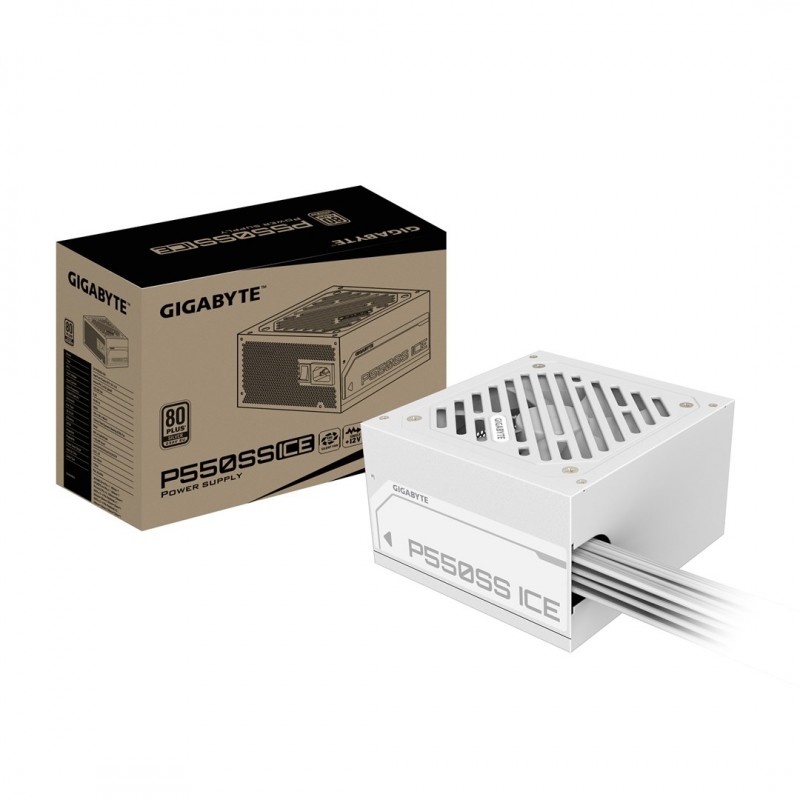

GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug

Gigabyte

504785

New product

80 Items

Shipping 2025-11-20 days

59,00 € tax incl.

Design
Cooling typeActive
Fan diameter12 cm
Fan locationTop
Number of fans1 fan(s)
On/off switchYes
Product colourWhite
Logistics data
Warranty period3 year(s)
Packaging data
Package depth206 mm
Package height117 mm
Package typeBox
Package weight2.11 kg
Package width254 mm
Performance
80 PLUS certification80 PLUS Silver
ATX version3.1
Bearing technologyBall bearing
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX power connector (20+4 pin)Yes
Cabling typeNon-Modular
CPU power connector (4+4 pin)Yes
Floppy disk drive connectorYes
Floppy drive power connector2
Motherboard power cable length60 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors5
PCI Express connectorYes
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power connectors (4-pin)4
Power
AC input frequency50/60 Hz
AC input voltage155-240 V
Combined power (-12V)3.6 W
Combined power (+12V)549.6 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Efficiency90%
Hold time16 ms
Input current6.3 A
Max output current (-12V)0.3 A
Max output current (+12V)45.8 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power Good signal delay range100 - 150 ms
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverheating
Power protection featuresOver power
Power protection featuresUnder voltage
Power protection featuresOver current
Total power550 W
Weight & dimensions
Depth150 mm
Height86 mm
Weight1.95 kg
Width140 mm
