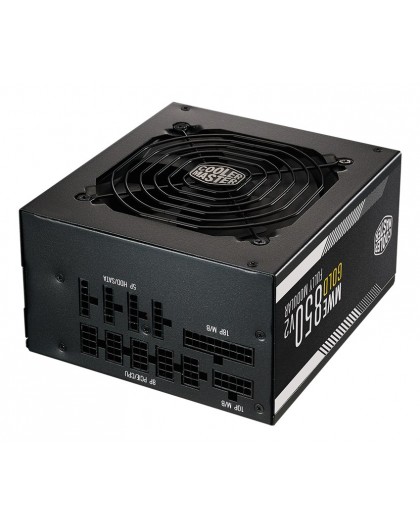

Cooler Master MWE Gold 850 V2 ATX 3.1 power supply unit 850 W 24-pin ATX Black
MPE-8501-AFAAG-3EEU
New product
2 Items
Shipping 2025-11-14 days
Warning: Last items in stock!
149,00 € tax incl.
| Design | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package depth | 310 mm |
| Package height | 120 mm |
| Package type | Box |
| Package weight | 2.9 kg |
| Package width | 194 mm |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Certification | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 860 mm |
| Peripheral (Molex) power cable length | 500 mm |
| Peripheral (Molex) power cable length | 620 |
| Peripheral (Molex) power cable length | 740 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 500 mm |
| SATA power cable length | 860 mm |
| SATA power cable length | 620 |
| SATA power cable length | 740 |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 90% |
| Hold time | 16 ms |
| Input current | 6 - 12 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Over total voltage |
| Power protection features | Over power |
| Total power | 850 W |
| Technical details | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.62 kg |
| Width | 150 mm |
