Home / ///be quiet! Pure Power 13 M | 1000W power supply unit 20+4 pin ATX ATX Black
New be quiet! Pure Power 13 M | 1000W power supply unit 20+4 pin ATX ATX Black

be quiet! Pure Power 13 M | 1000W power supply unit 20+4 pin ATX ATX Black

BE QUIET!

BP028EU

New product

30 Items

Shipping 2025-11-14 days

179,00 € tax incl.

Certificates
Compliance certificatesWEEE
Compliance certificatesRCM
Compliance certificatesCCC
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatesUKCA
Compliance certificatescTUVus
Compliance certificatesTÜV mark
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesCB
Compliance certificatesBSMI
Compliance certificatesIRAM
Design
Cooling typeActive
Fan diameter12 cm
Fan speed0 - 2000 RPM
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Logistics data
Products per shipping (inner) case6 pc(s)
Shipping (inner) case gross weight22.7 kg
Shipping (inner) case height23.3 cm
Shipping (inner) case length58 cm
Shipping (inner) case width32.5 cm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Other features
Cable ties includedYes
Screws includedYes
Packaging content

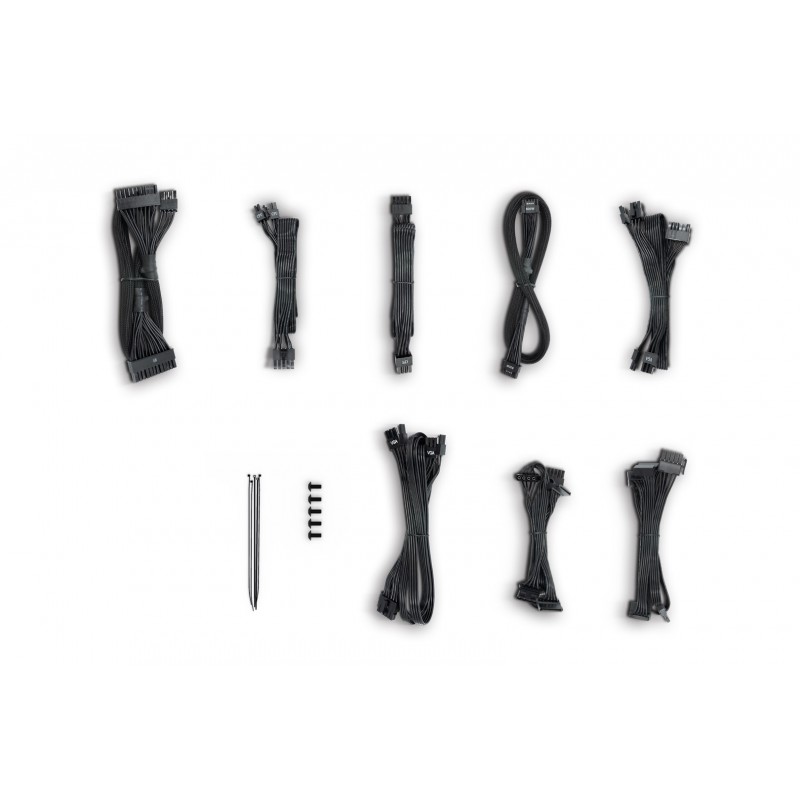

Cables includedAC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data
Package depth320 mm
Package height133 mm
Package weight3.4 kg
Package width210 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyRifle
EPS version2.92
Mean time between failures (MTBF)100000 h

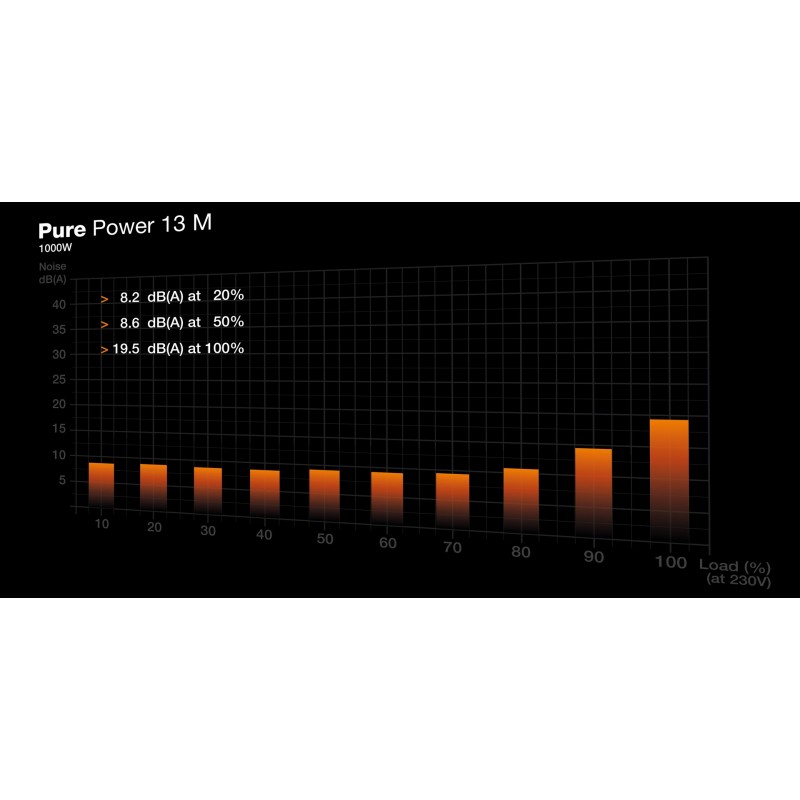

Noise level30.3 dB
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeFully-Modular
CPU P4 connector (4-pin)2

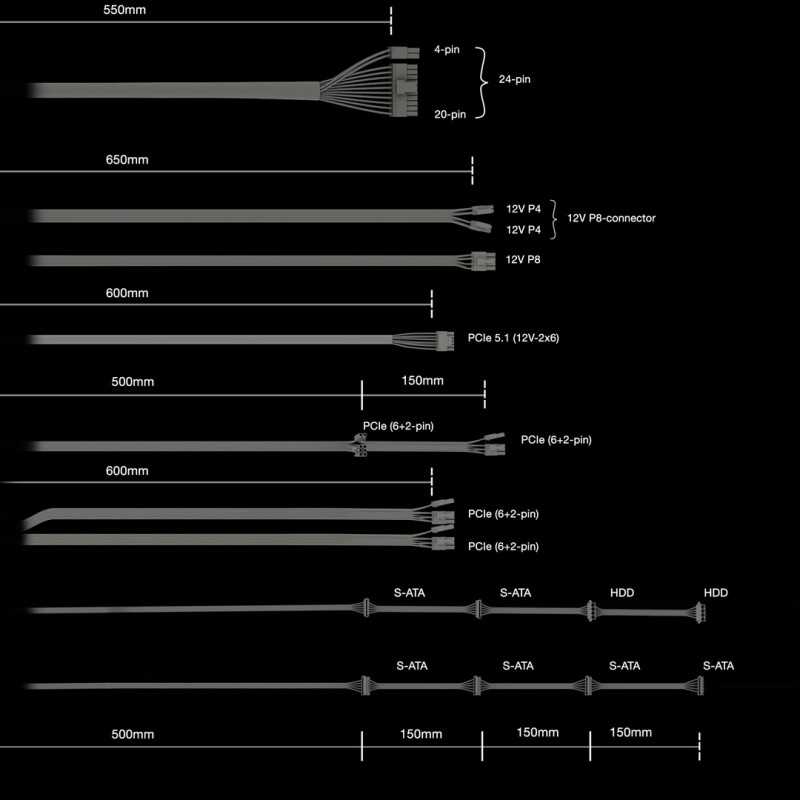

CPU power cable length65 cm
CPU power connector (4+4 pin)Yes
EPS power connector (8-pin)Yes
Motherboard power cable length55 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express power connectors (12-pin)1
PCI Express power connectors (6+2 pin)4
Peripheral (Molex) power cable length950 mm
Peripheral (Molex) power cable length800
Peripheral (Molex) power connectors (4-pin)2
SATA power cable length650
SATA power cable length950 mm
SATA power cable length800
SATA power cable length500 mm
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)1000 W
Combined power (+3.3V)120 W
Combined power (+5V)120 W
Combined power (+5Vsb)15 W
Efficiency92.5%
Hold time21.09 ms
Max output current (-12V)0.3 A
Max output current (+12V1)83.4 A
Max output current (+3.3V)22 A
Max output current (+5V)22 A
Max output current (+5Vsb)3 A
Maximum input current (@110V)12 A
Maximum input current (@220V)6 A
Number of +12V rail(s)1
Peak power1050 W
Power factor0.98
Power Factor Correction (PFC) typeActive
Power protection featuresOver power
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresOverheating
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresUnder voltage
Power protection featuresOver current
Total power1000 W
Technical details
Sustainability certificatesENERGY STAR
Sustainability certificatesErP
Weight & dimensions
Depth160 mm
Height86 mm
Weight2.64 kg
Width150 mm
