Home / ///be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black
New be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black

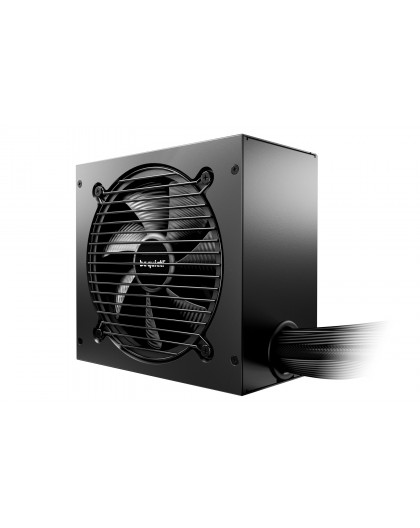

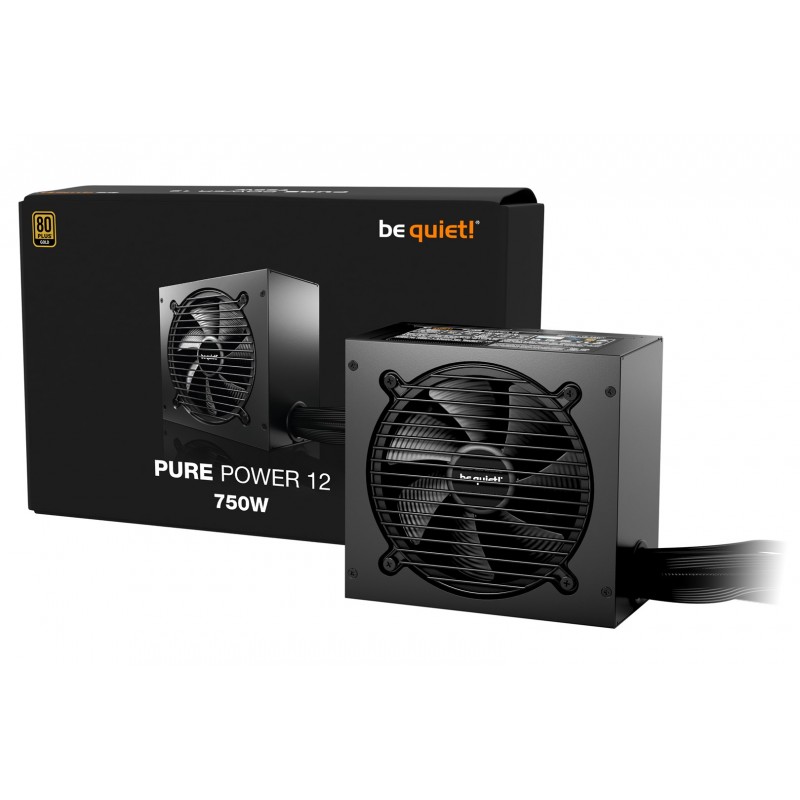

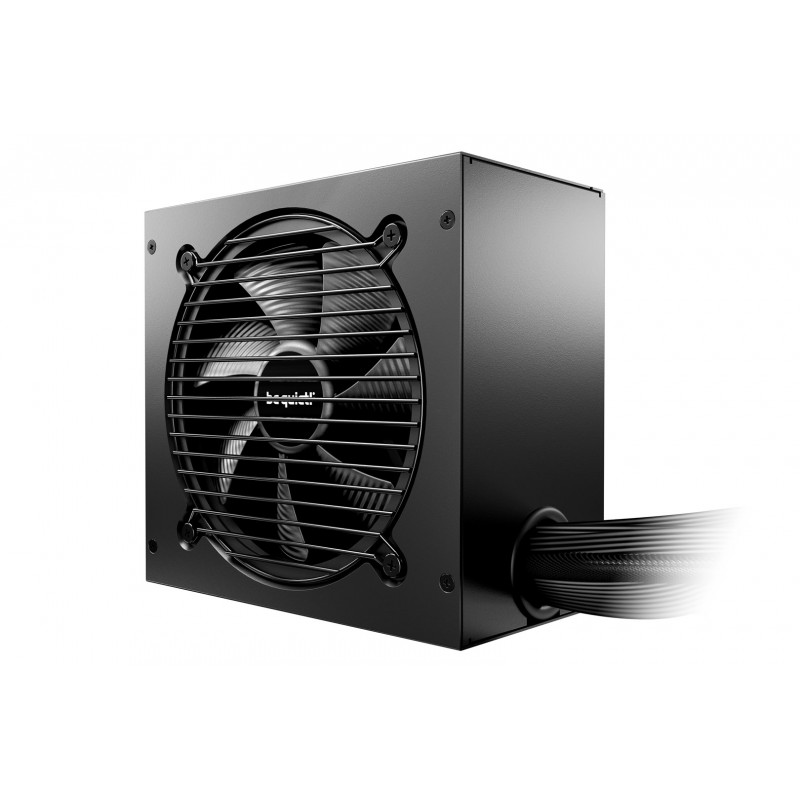

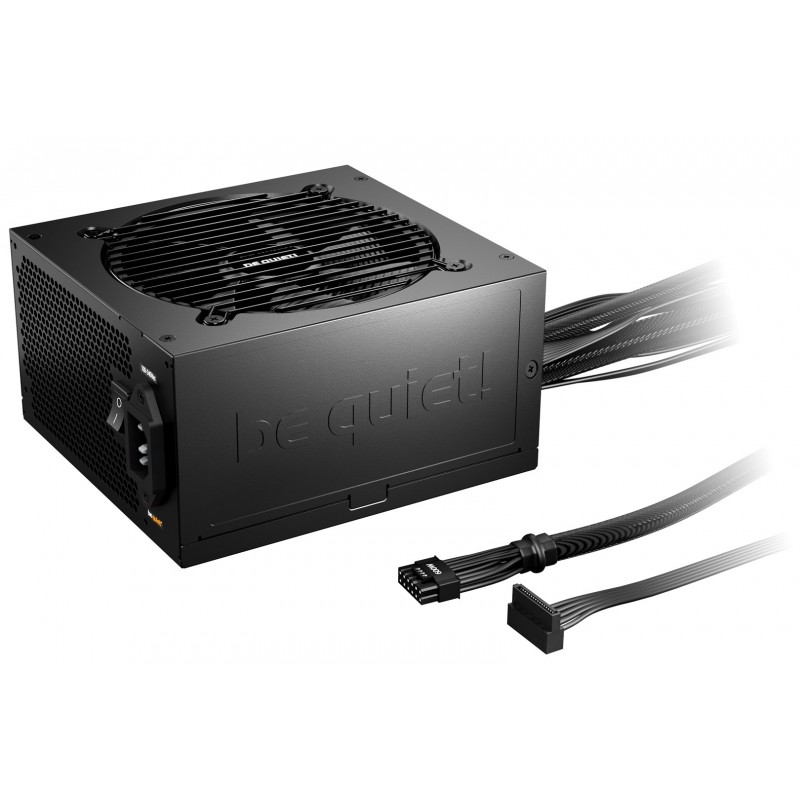

be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black

BE QUIET!

BP003EU

New product

24 Items

Shipping 2025-11-14 days

119,00 € tax incl.

Design
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Logistics data
Products per shipping (inner) case6 pc(s)
Shipping (inner) case height41.8 cm
Shipping (inner) case length44 cm
Shipping (inner) case net weight19.2 kg
Shipping (inner) case width34.5 cm
Operational conditions
Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 70 °C
Other features
Screws includedYes

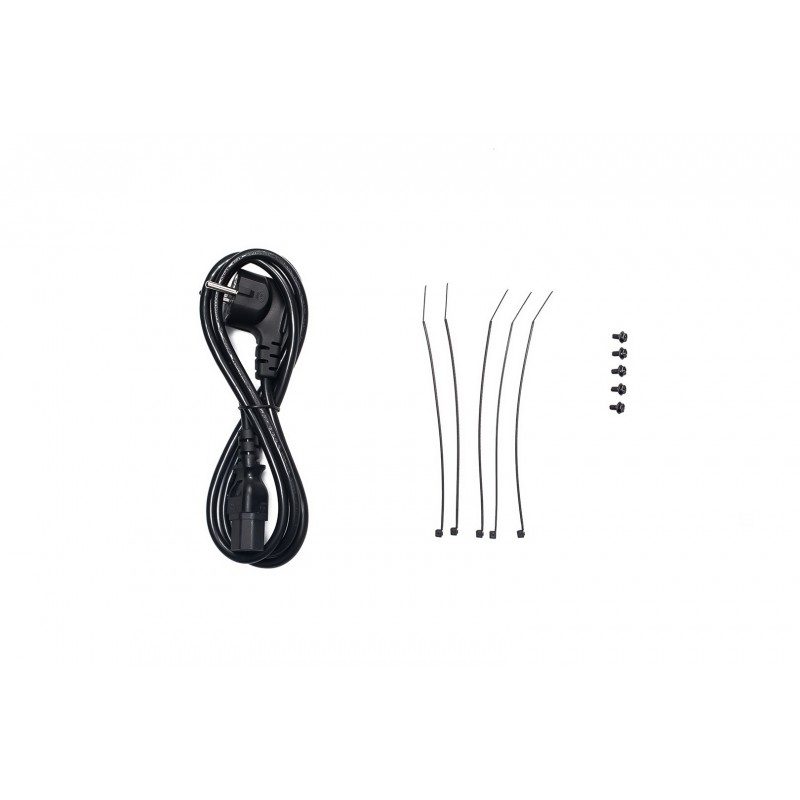

Packaging content
Cable tie(s) includedYes
Cables includedAC
Packaging data
Package depth320 mm
Package height210 mm
Package weight3 kg
Package width133 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyRifle
EPS version2.92
Mean time between failures (MTBF)100000 h
Noise level22.5 dB
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeNon-Modular
CPU power cable length60 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length55 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express power cable length60 cm
PCI Express power connectors (12-pin)1
PCI Express power connectors (6+2 pin)3
Peripheral (Molex) power cable length800
Peripheral (Molex) power connectors (4-pin)1
SATA power cable length800
SATA power cable length650
SATA power cable length950 mm
SATA power cable length500 mm
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)750 W
Combined power (+3.3V)120 W
Combined power (+5V)120 W
Combined power (+5Vsb)15 W
Efficiency90.7%
Hold time17.04 ms
Max output current (-12V)0.3 A
Max output current (+12V1)62.5 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Maximum input current (@110V)10 A
Maximum input current (@220V)5 A
Number of +12V rail(s)1
Peak power820 W
Power factor0.98
Power Factor Correction (PFC) typeActive
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverheating
Power protection featuresOver power
Total power750 W
Technical details
Compliance certificatesCB
Compliance certificatesWEEE
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatescTUVus
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesUKCA
Sustainability certificatesTriman
Sustainability certificatesENERGY STAR
Sustainability certificatesErP
Warranty period10 year(s)
Weight & dimensions
Depth160 mm
Height150 mm
Weight2.6 kg
Width86 mm
