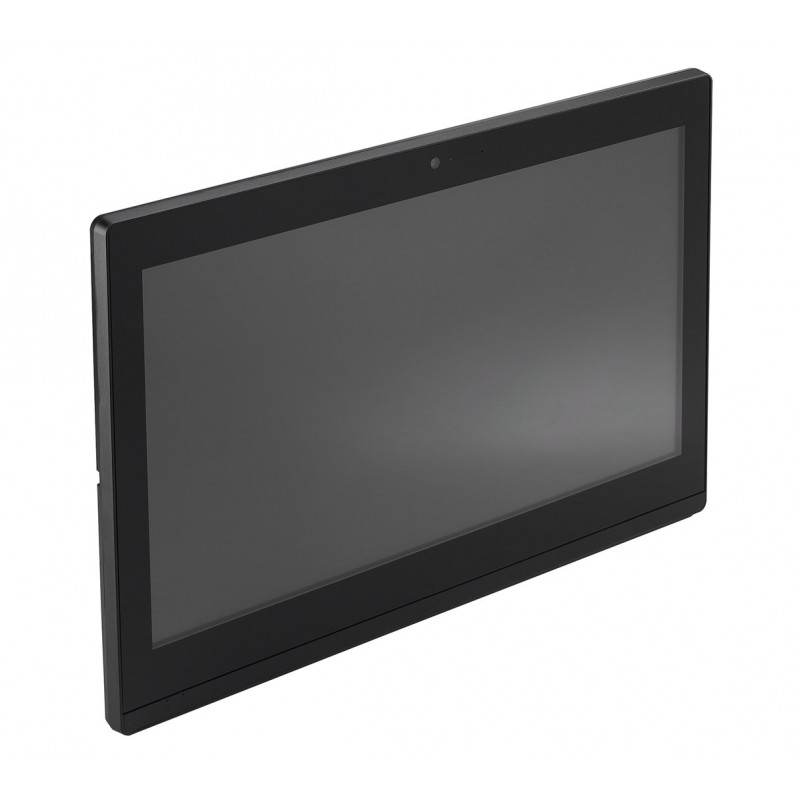

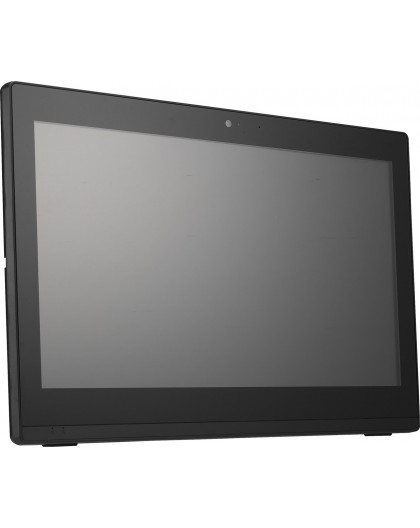

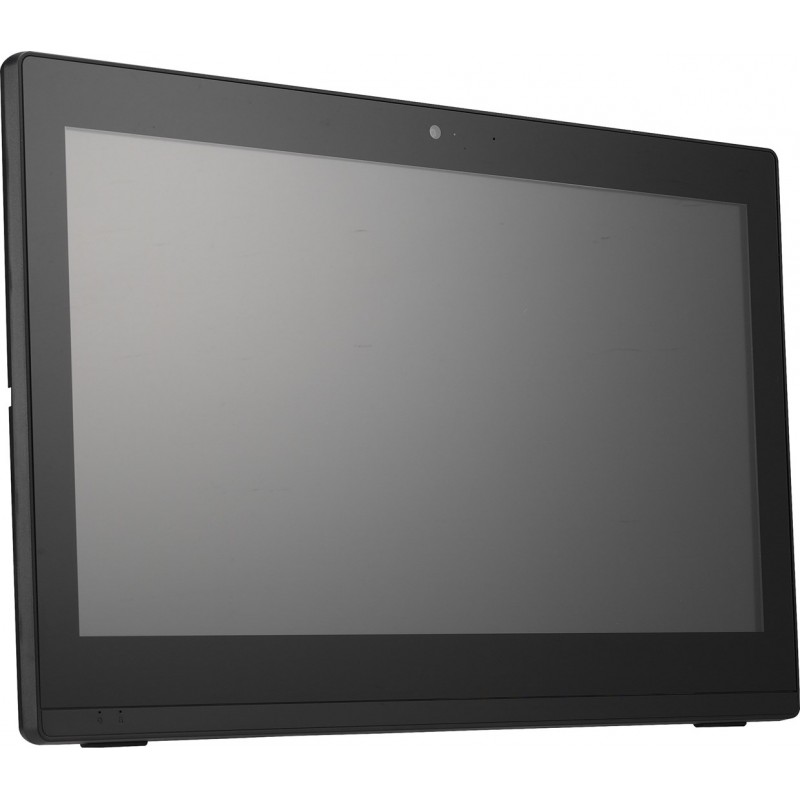

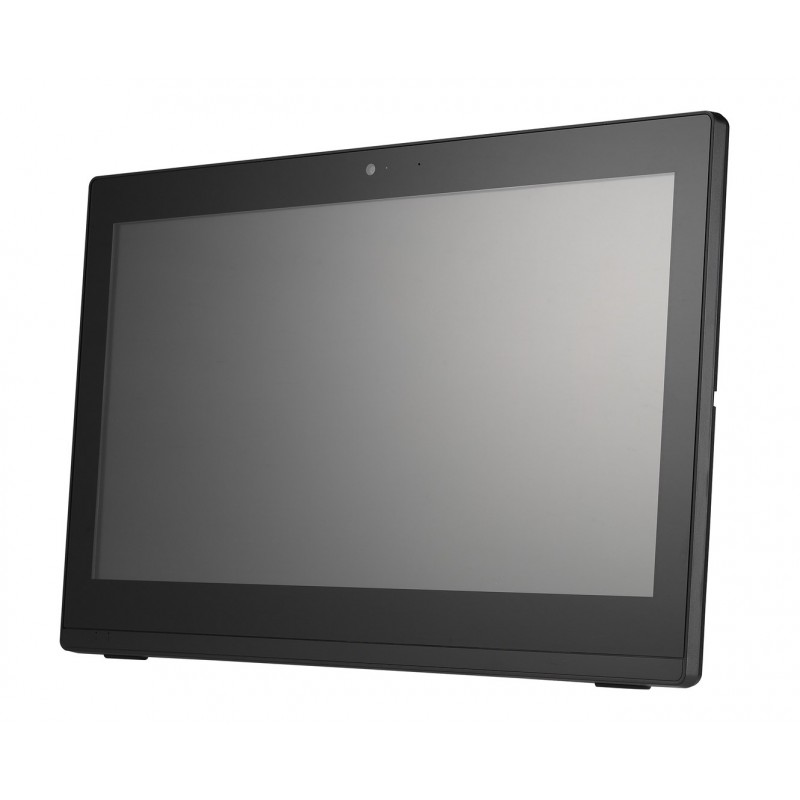

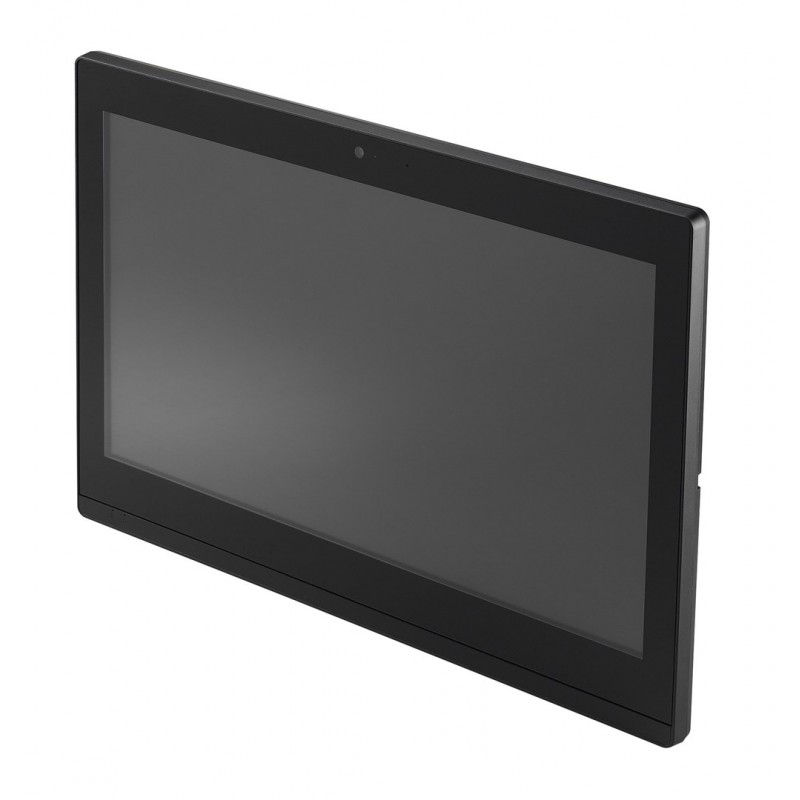

Shuttle All-In-One Barebone P92U, 19.5" Multi-Touch-Screen, Celeron 5205U, Wifi, IP54, fanless, 24/7 permanent operation
PAB-P92U011
New product
13 Items
Shipping 2025-11-24 days
849,00 € tax incl.
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Certificates | |
| Certification | CE, RED, FCC, RCM, VCCI, CB, ETL |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Chassis type | All-in-One |
| Cooling type | Passive |
| LED indicators | Yes |
| On/off switch | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product colour | Black |
| Product type | All-in-One PC barebone |
| VESA mounting | Yes |
| Display | |
| Aspect ratio | 16:9 |
| Display diagonal | 49.5 cm (19.5") |
| Display resolution | 1600 x 900 pixels |
| HD type | HD+ |
| Panel type | LCD |
| Touchscreen | Yes |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 610 |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.2 V |
| Non-ECC | Yes |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2400 |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ethernet LAN | Yes |
| LAN controller | Intel® I211 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Other features | |
| Country of origin | China |
| Packaging content | |
| AC adapter included | Yes |
| Drivers included | Yes |
| Power cord included | Yes |
| Quick start guide | Yes |
| Performance | |
| BIOS type | AMI |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Power | |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Processor | |
| Built-in processor | Yes |
| CPU configuration (max) | 1 |
| Processor cache | 2 MB |
| Processor cores | 2 |
| Processor family | Intel® Celeron® |
| Processor frequency | 1.9 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | 5205U |
| Processor threads | 2 |
| Thermal Design Power (TDP) | 15 W |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel TSX-NI | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Safety warning | |
| Warnings | Avoid exposure to extreme temperatures and humidity. |
| Warnings | Do not open the enclosure to avoid risk of electric shock. |
| Warnings | Do not dispose of with the normal household waste; special disposal required. |
| Software | |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 11 |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SDHC |
| Compatible memory cards | SDXC |
| Compatible memory cards | SD |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5 |
| Supported storage drive types | HDD & SSD |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Depth | 44 mm |
| Height | 321 mm |
| Package weight | 5.62 kg |
| Weight | 4.29 kg |
| Width | 487 mm |
