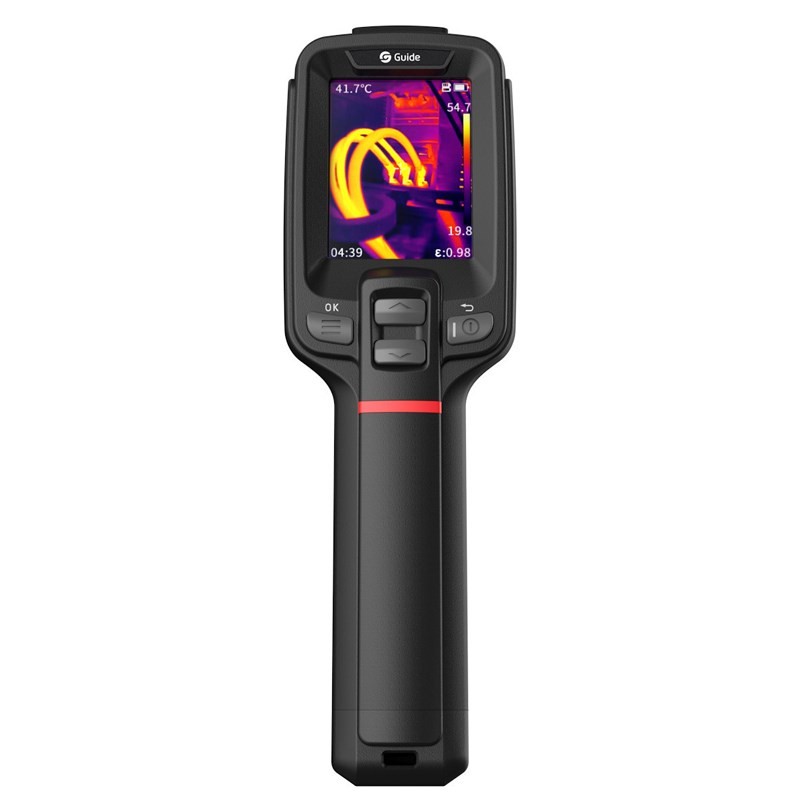

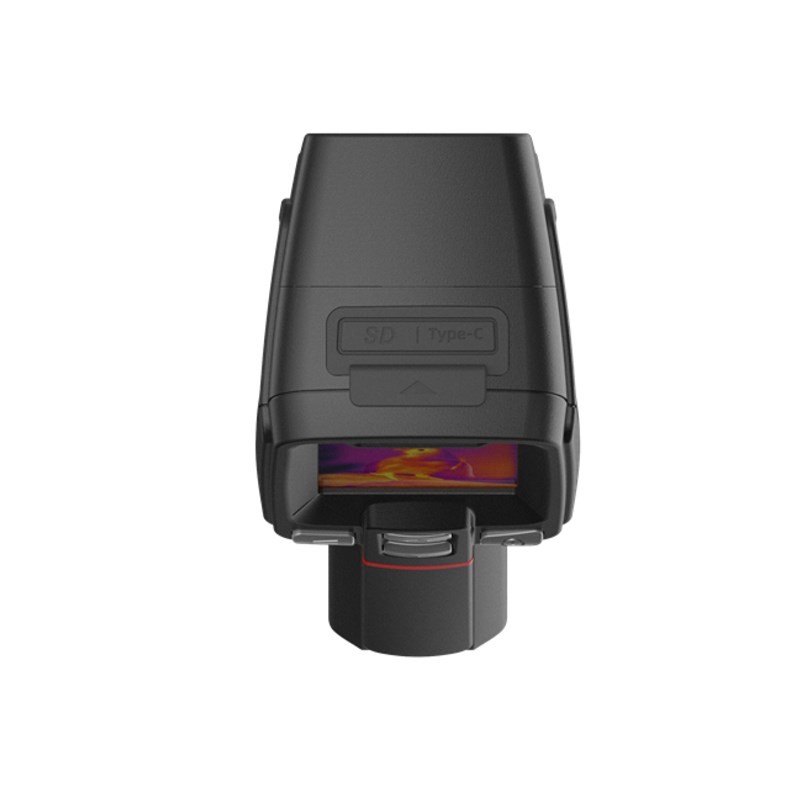

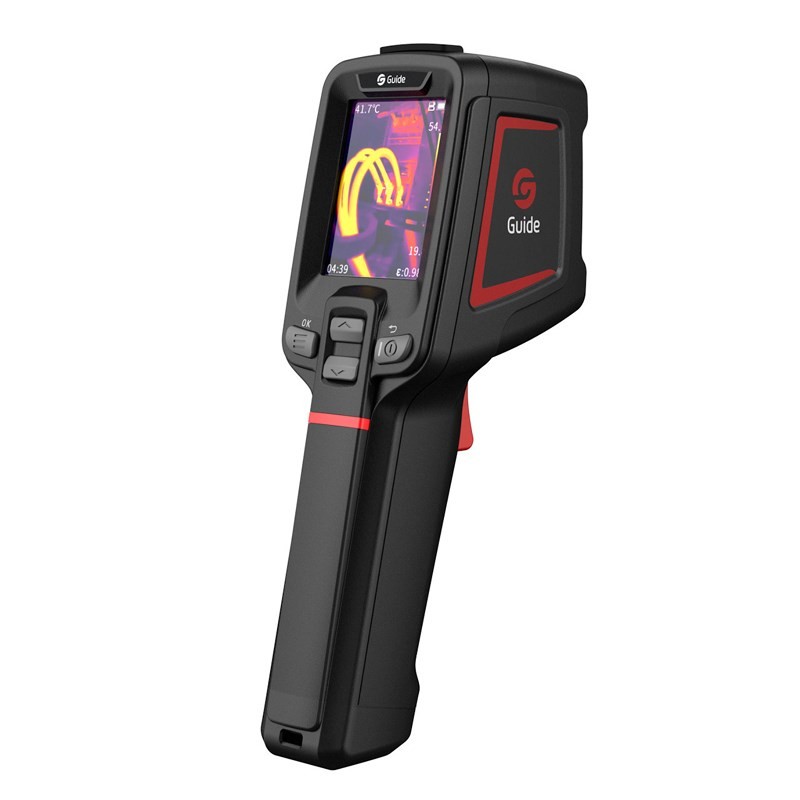

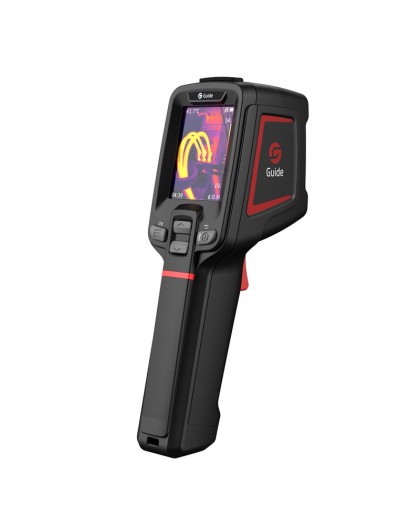

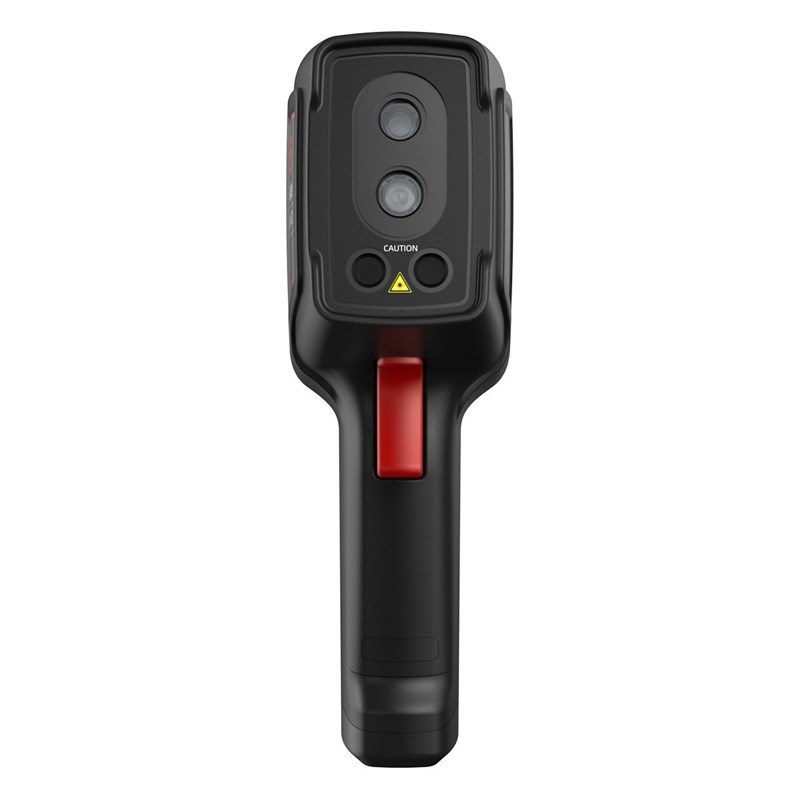

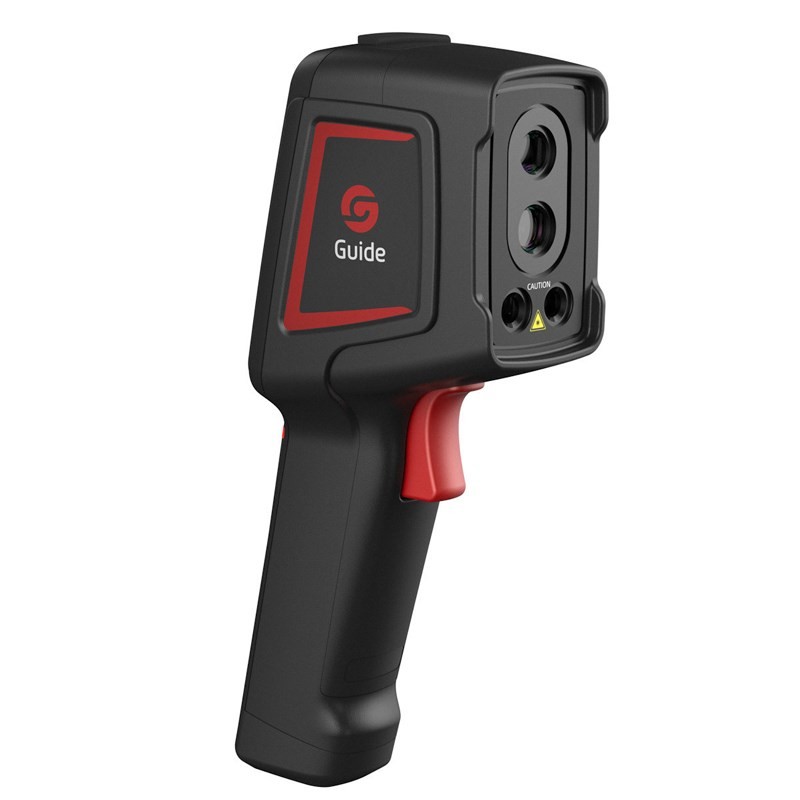

Guide Sensmart E1+ thermal imaging camera Vanadium Oxide Uncooled Focal Plane Arrays Black 120 x 90 pixels Built-in display LCD
E1+
New product
1 Item
Shipping 2025-11-14 days
Warning: Last items in stock!
369,00 € tax incl.
| Battery | |
| Battery life (max) | 8 h |
| Design | |
| Built-in display | Yes |
| Display diagonal | 6.1 cm (2.4") |
| Display type | LCD |
| Drop proof | 200 cm |
| Housing material | Metal |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Features | |
| Maximum memory card size | 16 GB |
| Wi-Fi | Yes |
| Lens system | |
| Fixed focal length | 2.28 mm |
| Sensor resolution (thermal module) | 120 x 90 pixels |
| Packaging content | |
| Battery charger included | Yes |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
| Wrist strap included | Yes |
| Packaging data | |
| Package type | Box |
| Performance | |
| Accuracy | 2 °C |
| Built-in laser pointer | Yes |
| Built-in viewfinder | Yes |
| Horizontal field of view | 50° |
| Image frequency | 25 Hz |
| Infrared spectral band | 7.5 - 14 µm |
| Internal storage capacity | 16 GB |
| Maximum resolution | 240 x 180 pixels |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Temperature measurement range | -20 - 550 °C |
| Thermal frame rate | 25 Hz |
| Thermal sensitivity (NETD) | 60 mK |
| Vertical field of view | 38° |
| Ports & interfaces | |
| USB connector type | USB Type-C |
| USB port | Yes |
| Weight & dimensions | |
| Depth | 62 mm |
| Height | 76 mm |
| Weight | 350 g |
| Width | 194 mm |
