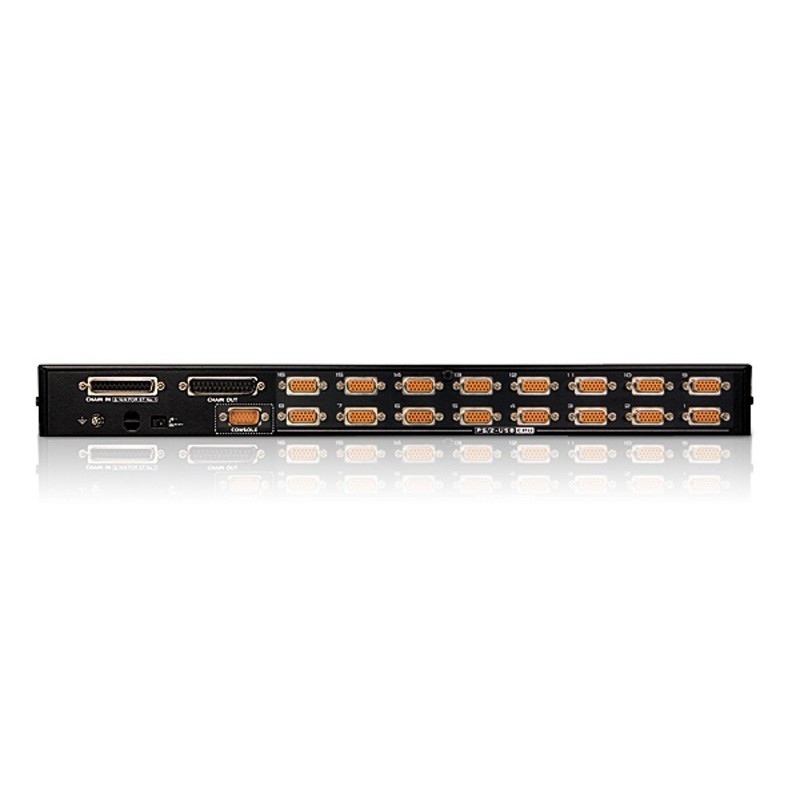

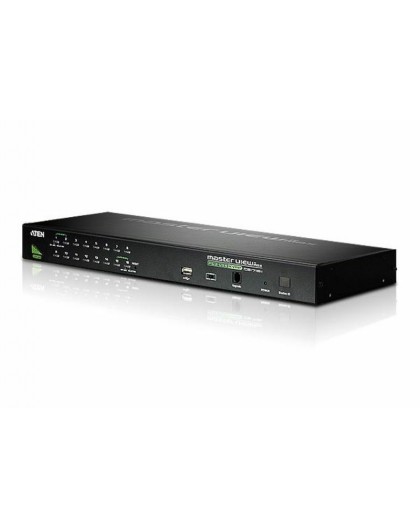

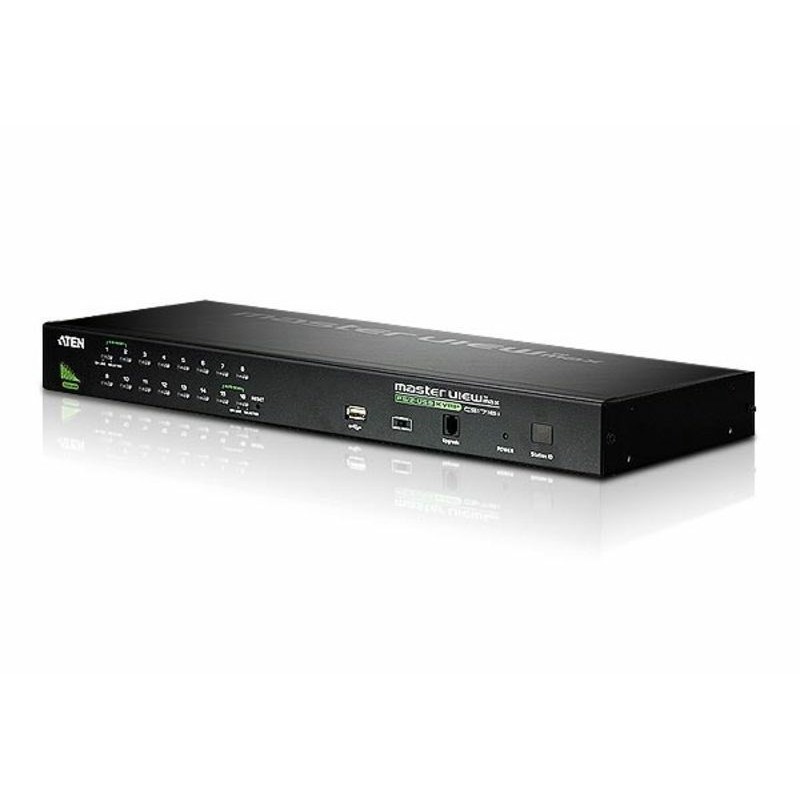

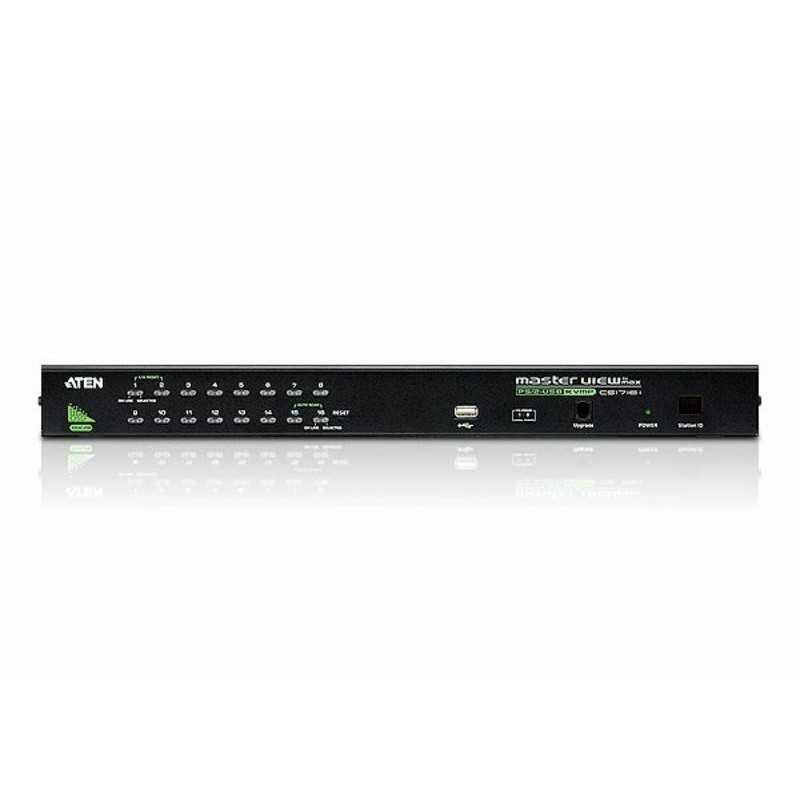

ATEN 16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
CS-1716A
New product
4 Items
Shipping 2025-11-20 days
599,00 € tax incl.
| Design | |
| Hot keys | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 12.6 kg |
| Master (outer) case height | 258 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case net weight | 10.8 kg |
| Master (outer) case width | 375 mm |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | KVM |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4 kg |
| Package width | 116 mm |
| Performance | |
| Daisy chain | Yes |
| DDC2B support | Yes |
| Firmware upgradeable | Yes |
| HD type | QXGA |
| Hot-Plug support | Yes |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1 |
| Scan interval | 255 s |
| Ports & interfaces | |
| Console ports | USB A |
| Console ports | VGA (D-Sub) |
| Console USB ports quantity | 1 |
| DC-in jack | Yes |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Number of computers controlled | 512 |
| VGA (D-Sub) ports quantity | 17 |
| Video port type | VGA |
| Power | |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.6 W |
| Power source | DC |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Depth | 159.9 mm |
| Height | 44 mm |
| Weight | 3.61 kg |
| Width | 437.2 mm |
