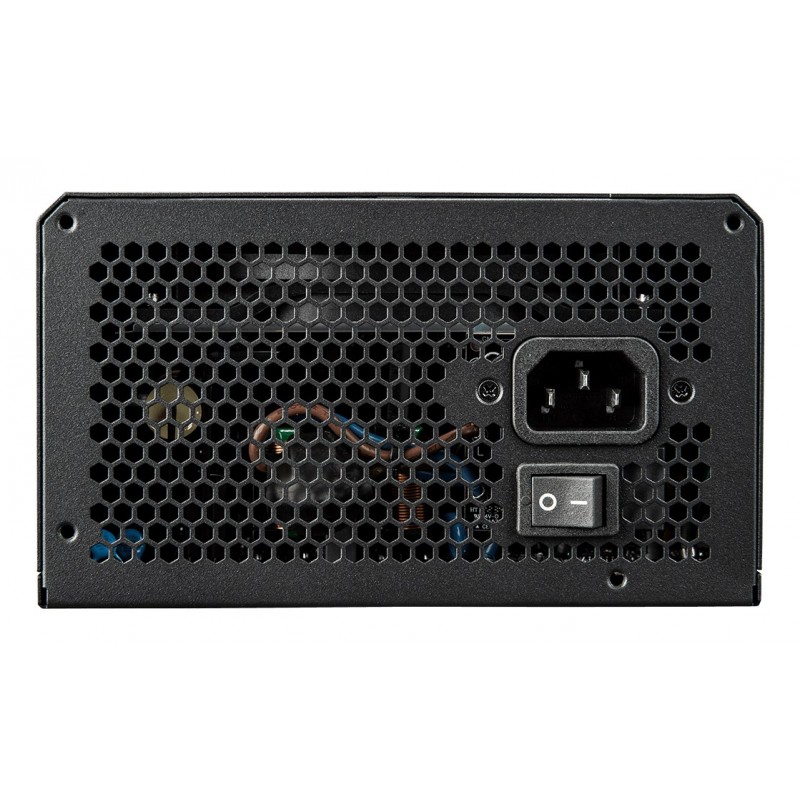

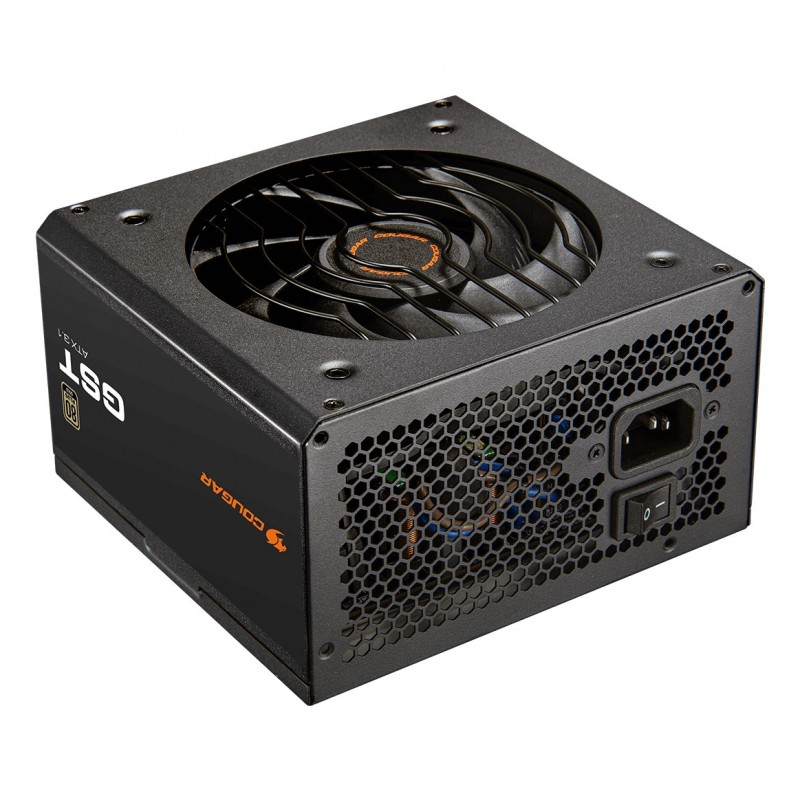

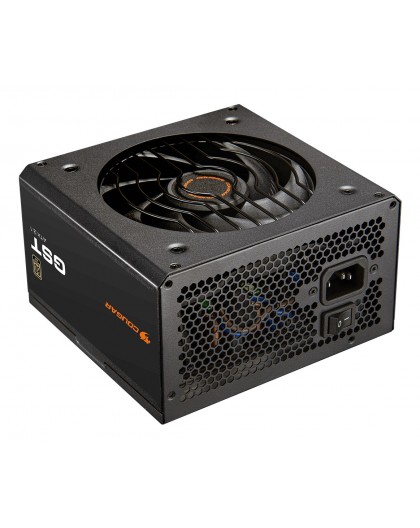

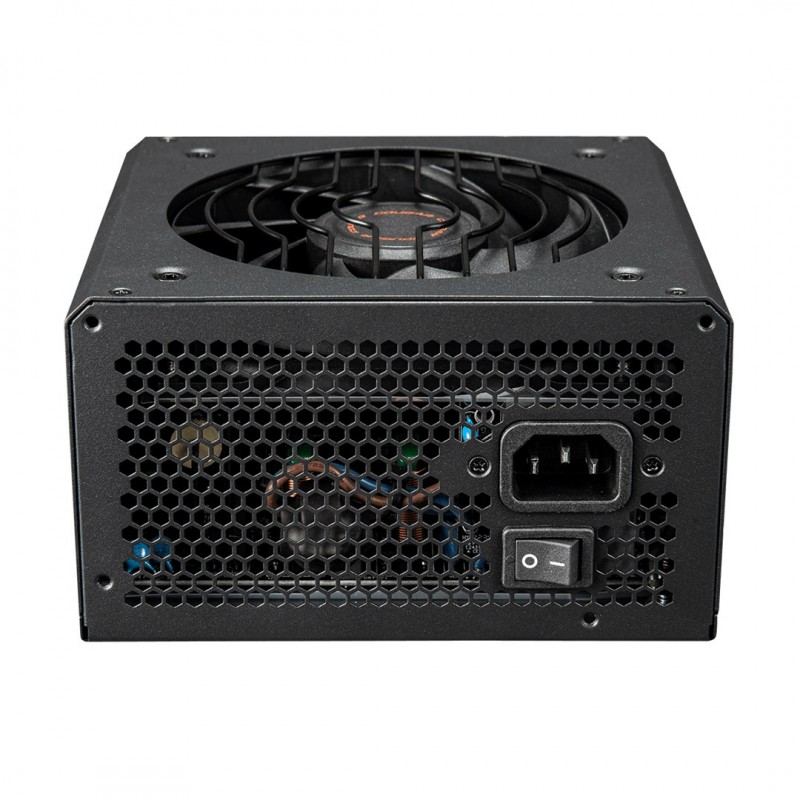

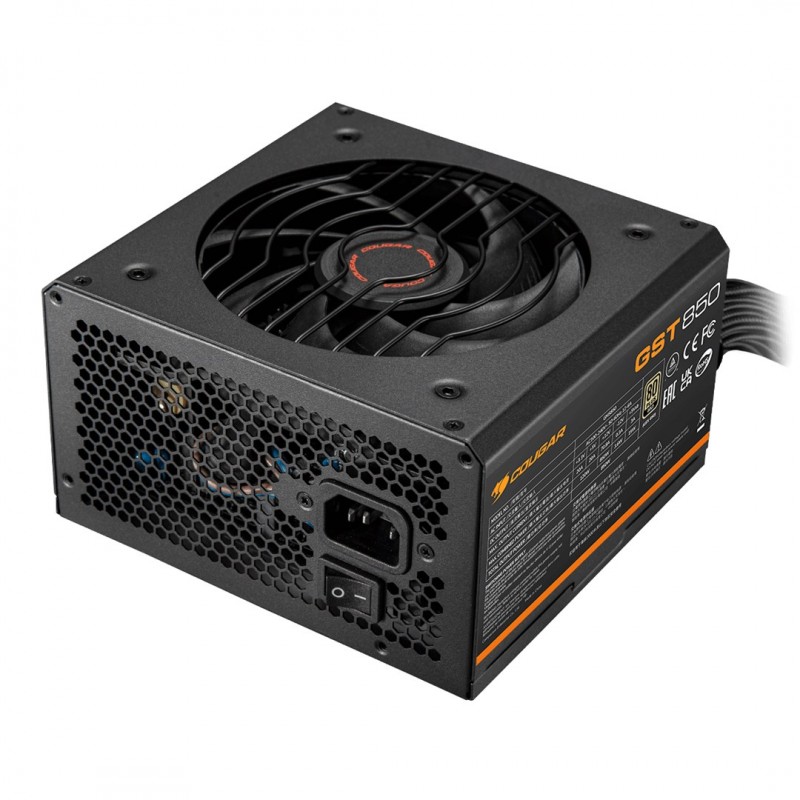

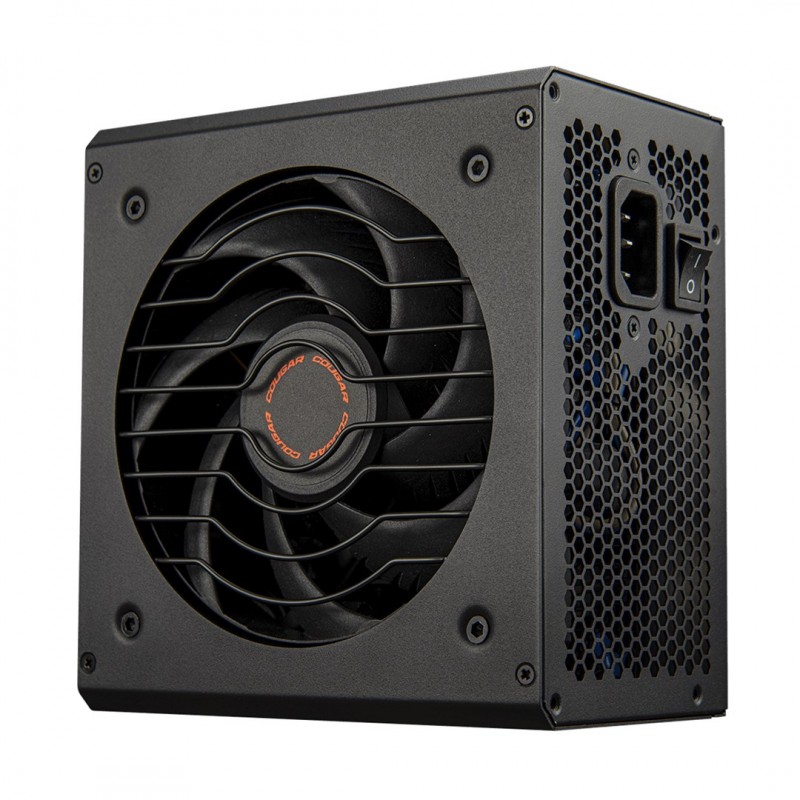

COUGAR GST power supply unit 850 W 20+4 pin ATX ATX Black
528821
Новый продукт
35 Элементы
Shipping 2025-11-27 days
149,00 € включая налог.
| Certificates | |
| Compliance certificates | UKCA |
| Compliance certificates | Federal Communications Commission (FCC) |
| Compliance certificates | TÜV mark |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | EAC |
| Design | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging data | |
| Package depth | 290 mm |
| Package height | 105 mm |
| Package weight | 3.02 kg |
| Package width | 215 mm |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Ports & interfaces | |
| Cabling type | Non-Modular |
| CPU power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| PCI Express connector | Yes |
| PCI Express power cable length | 55 cm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 150 |
| Peripheral (Molex) power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 150 |
| SATA power cable length | 450 mm |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 850 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 91% |
| Input current | 12 - 6 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Power protection features | Overheating |
| Total power | 850 W |
| Weight & dimensions | |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.22 kg |
| Width | 150 mm |
